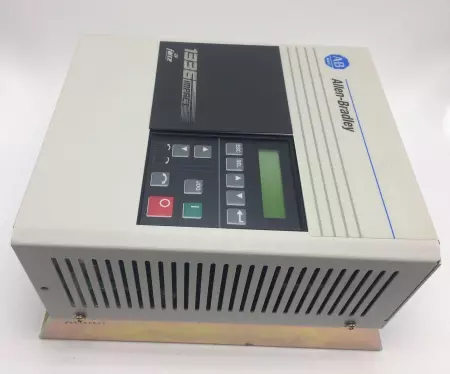

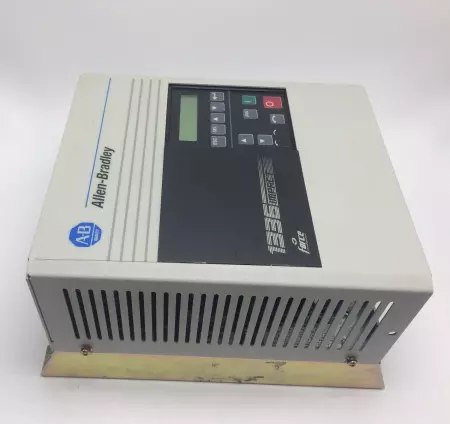

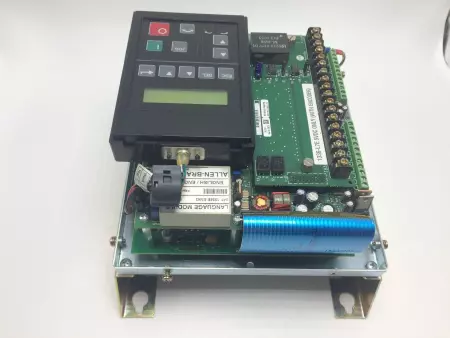

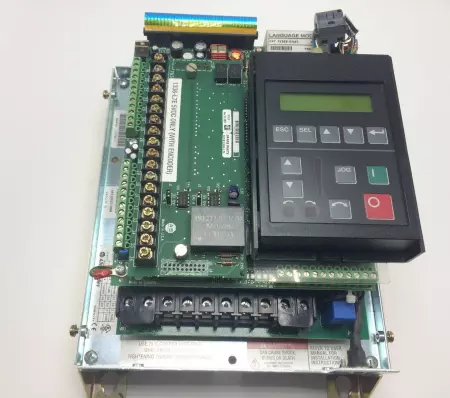

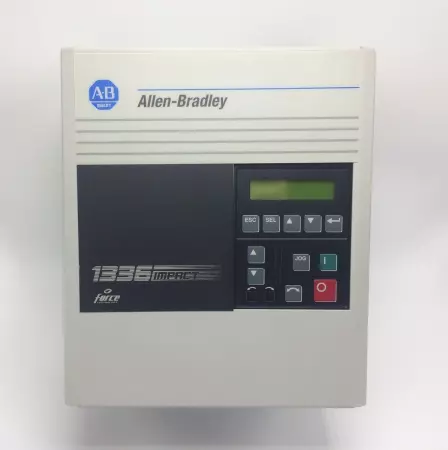

Allen-Bradley 1336E-BRF15-AE-EN-L7E SER.F 1336 Impact AC Drive, 1.5HP

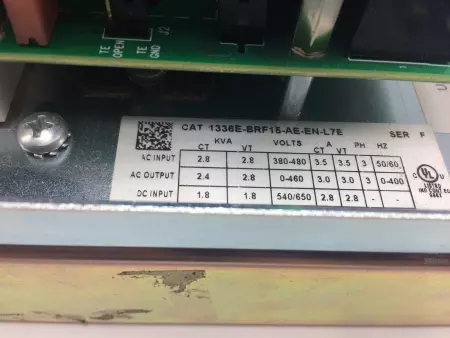

The Allen-Bradley 1336E-BRF15-AE-EN-L7E SER.F is a 1336 IMPACT AC variable frequency drive (VFD) designed for high-performance motor control. With a 1.5 HP rating, it offers precise speed, torque, and position control, suitable for demanding industrial automation and motion applications. Technical Information: Model: 1336E-BRF15-AE-EN-L7E Series: 1336E IMPACT (Enhanced Vector Control Drive) Firmware Revision: L7E Power Rating: 1.5 HP (1.1 kW) Input Voltage: 3-phase, 380–460V AC ±10%, 50/60 Hz Output Voltage: 0–460V AC (PWM variable) Continuous Output Current: ~2.5 A Overload Capacity: 150% for 60 seconds (typical) Control Modes: • Volts/Hertz (V/Hz) • Sensorless Vector Control • Full Flux Vector Control (with encoder feedback) • Positioning Control (when configured) Communication Options: • Embedded EtherNet/IP module (EN) User Interface: • LCD display keypad (L7E) • Built-in diagnostics and parameter programming Enclosure Type: Open type (IP20, NEMA 1 optional with kit) Cooling: Integral fan-cooled Protection Features: Overcurrent, short circuit, undervoltage, overvoltage, overtemperature, ground fault Motor Compatibility: Induction motors, permanent magnet motors (with encoder feedback) Applications: Conveyors, mixers, pumps, position control, material handling

Condition: Used

Weight:   34.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   45507 4.S5.11.2
