In stock 3 available

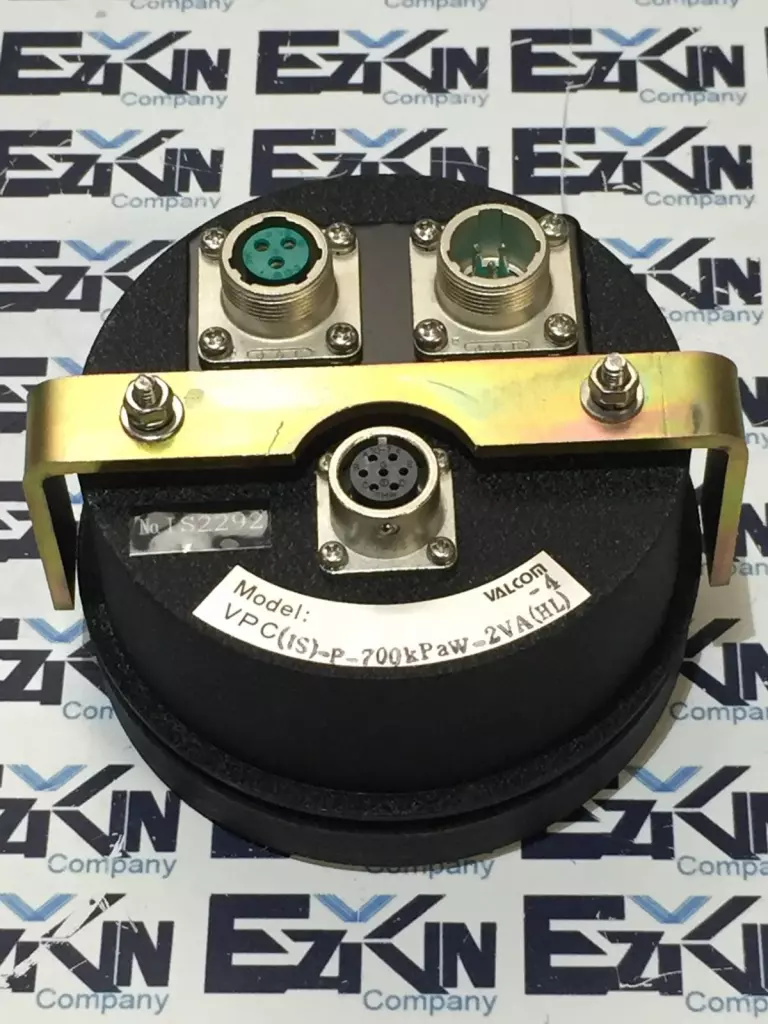

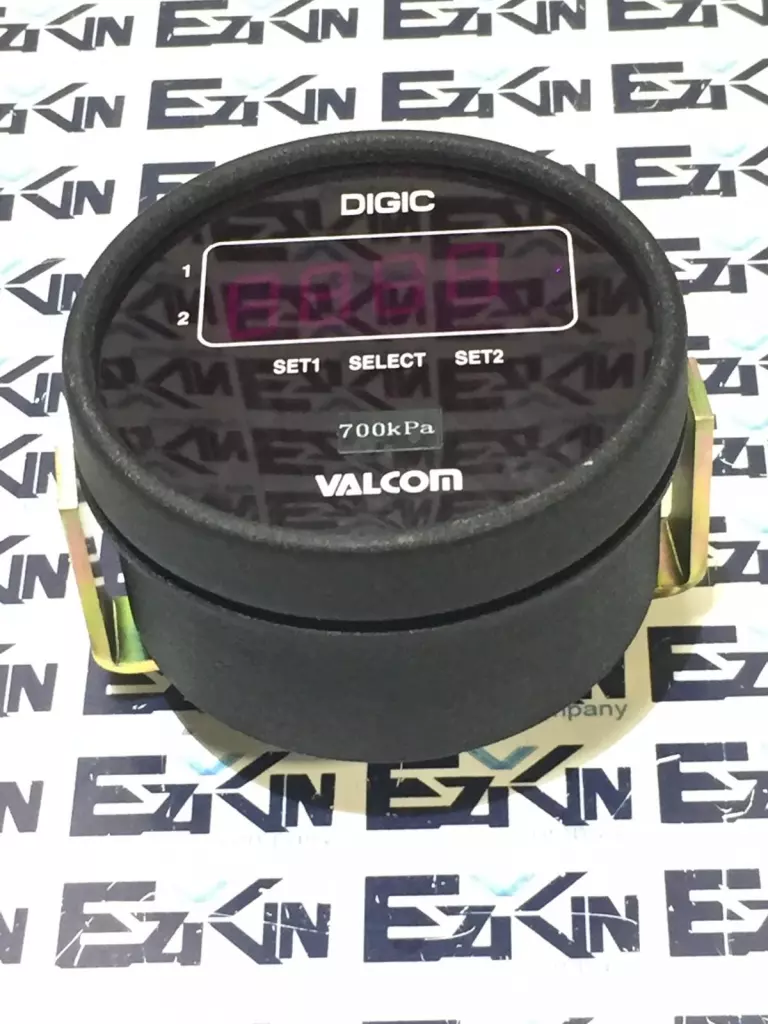

Compact, high-accuracy digital pressure display with analog output and peak-hold functionality, designed for industrial monitoring of air, gas, and fluid pressures. Model: VPC(IS)-P-700KPAW-2VA(HL)-4 Display Type: 3½-digit red LED, 15 mm height Pressure Range: 0–700 kPa (gauge) Accuracy: ±0.05 % F.S. ±1 digit Output: 4–20 mA or 1–5 VDC analog output (user-selectable) Input Type: Gauge pressure Peak-Hold Function: Yes, with manual reset Power Supply: 12–24 VDC Response Time: Fast update rate (up to 15 readings/sec selectable) Display Resolution: 0.1 kPa Ambient Temperature Range: 0 °C to +55 °C Humidity Range: 35–90 % RH (non-condensing) Mounting Type: Panel-mount (φ48 mm hole) Case Material: Die-cast aluminum Protection Rating: Front panel IP54, rear IP40 Weight: Approx. 650 g Dimensions: Ø104 mm × ~56 mm deep Application Media: Compatible with air, gas, oil, water (sensor-dependent) Compliance: CE, RoHS Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 3.00
Depth: 6.00
Length: 12.00
Width: 9.00
SKU: 4577 4.S8.11.5
