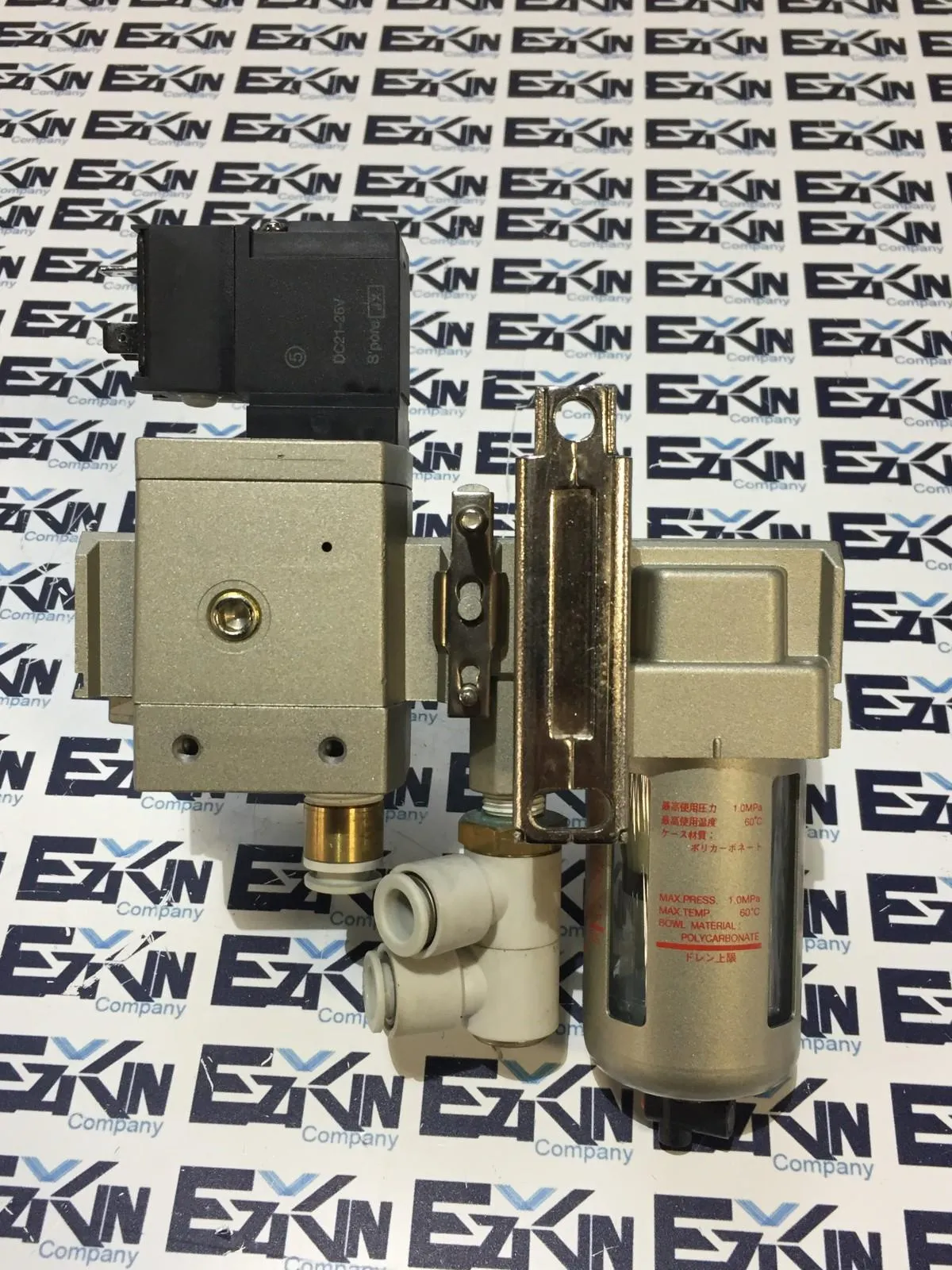

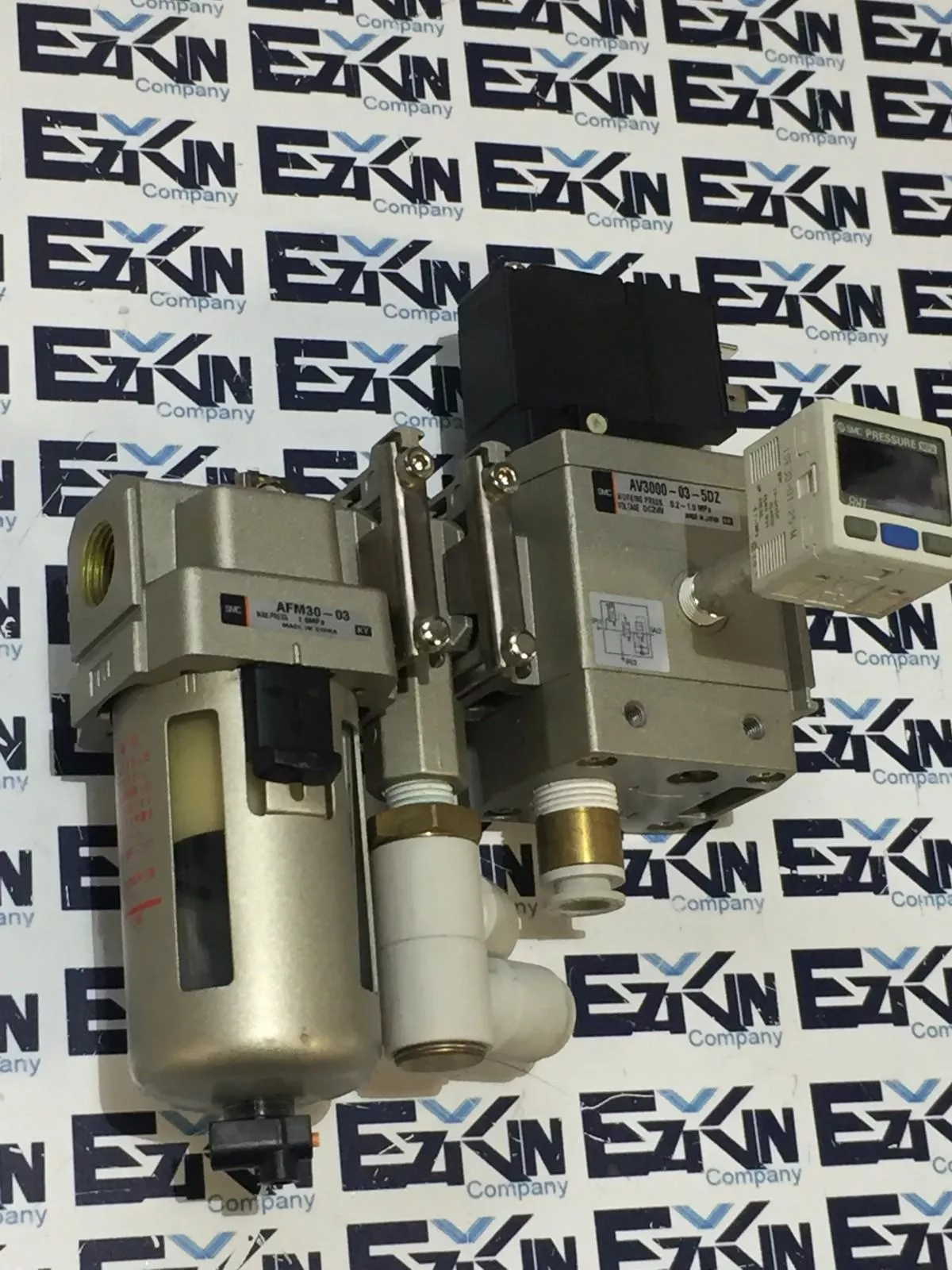

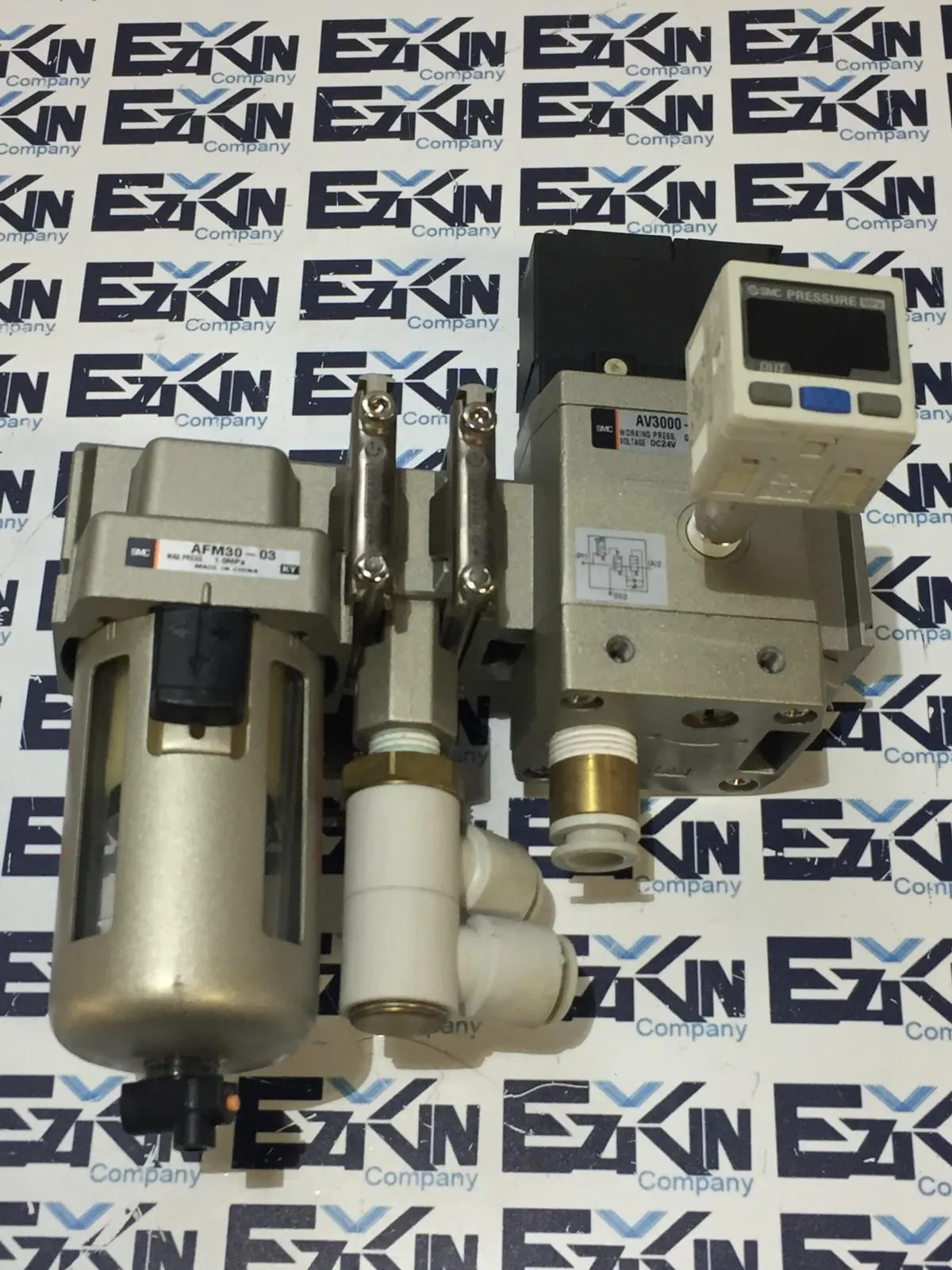

SMC AV3000-03-5DZ Soft Startup Valve/ AFM30-03 Mist Separator Modular

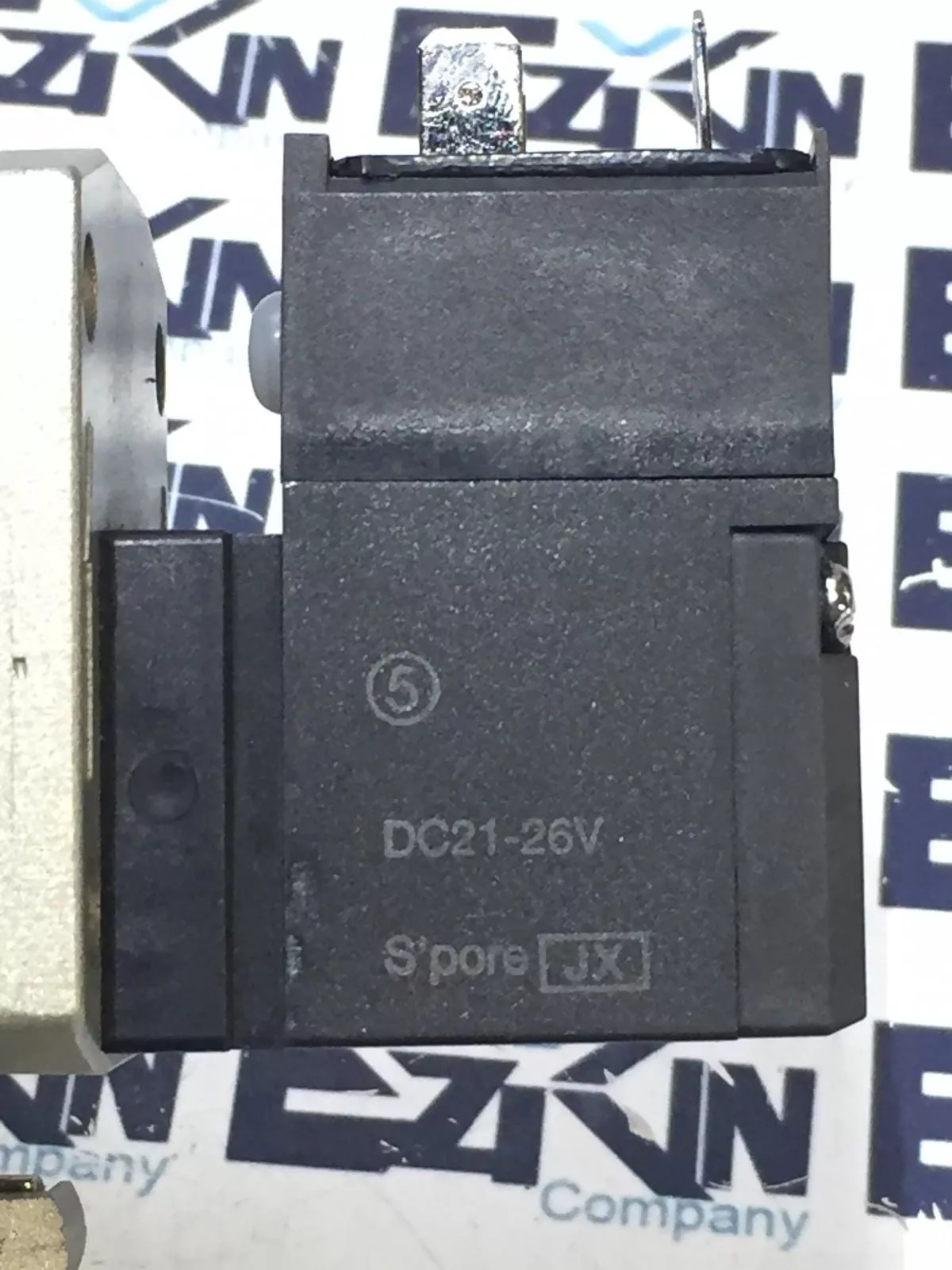

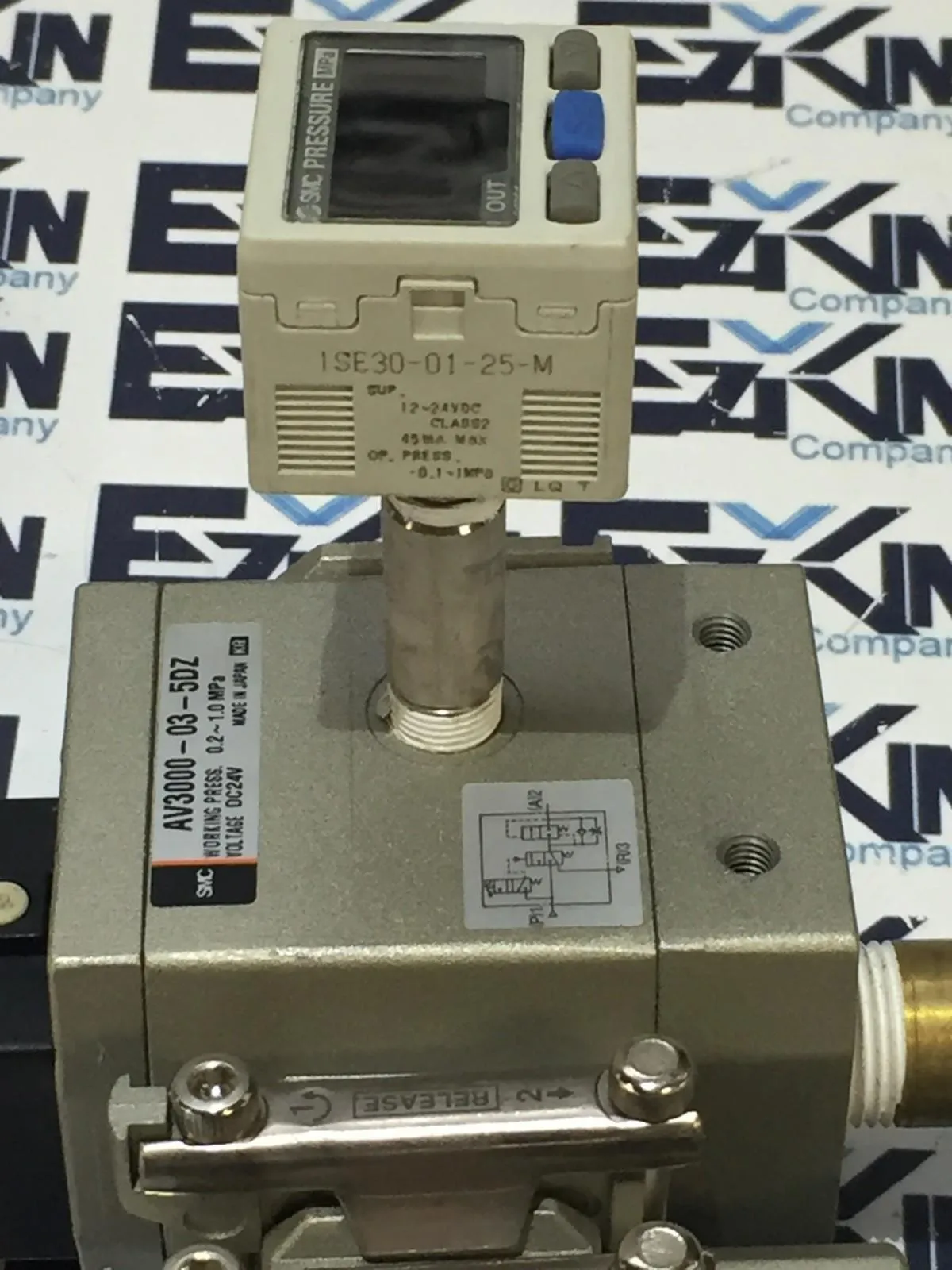

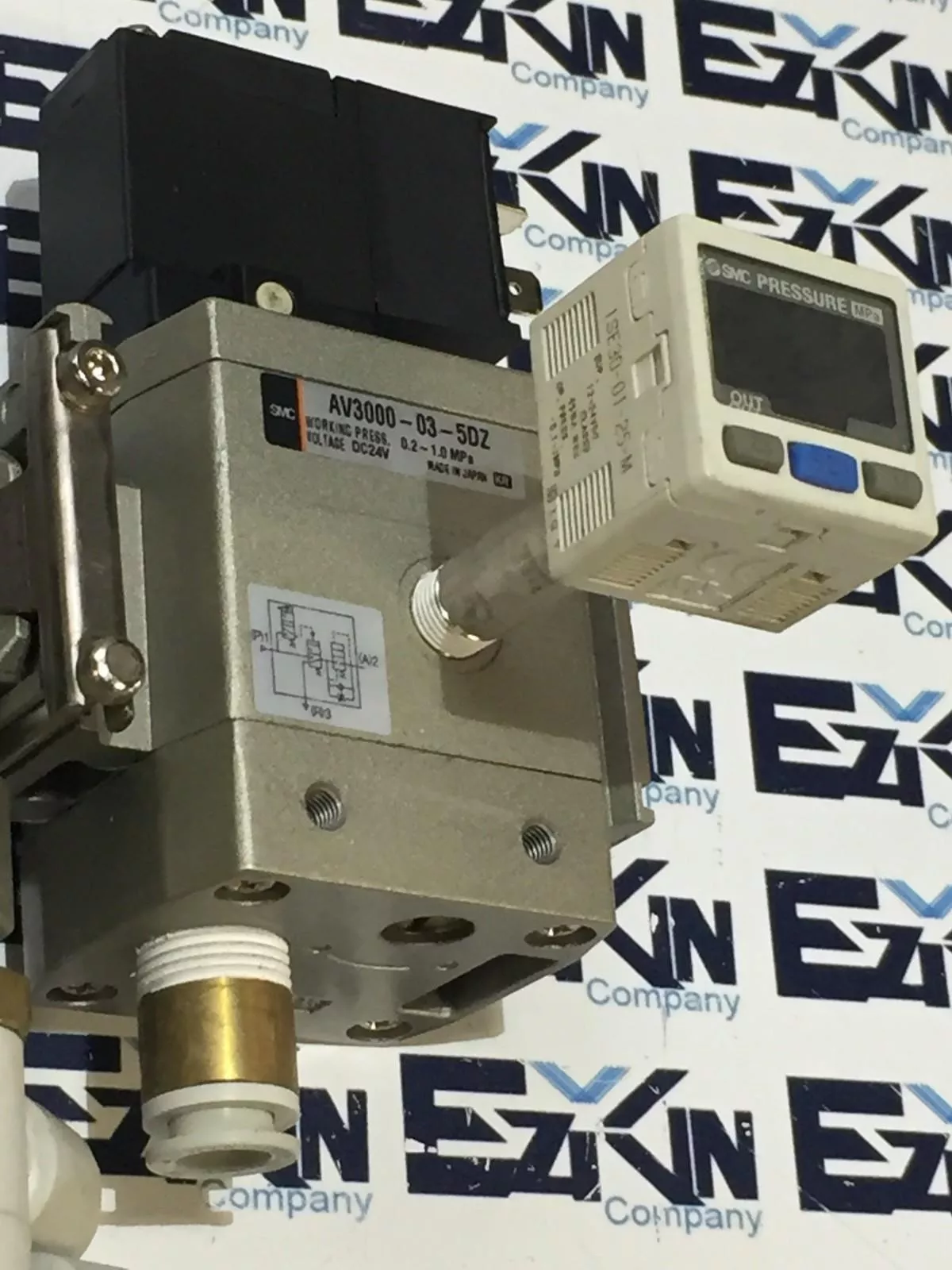

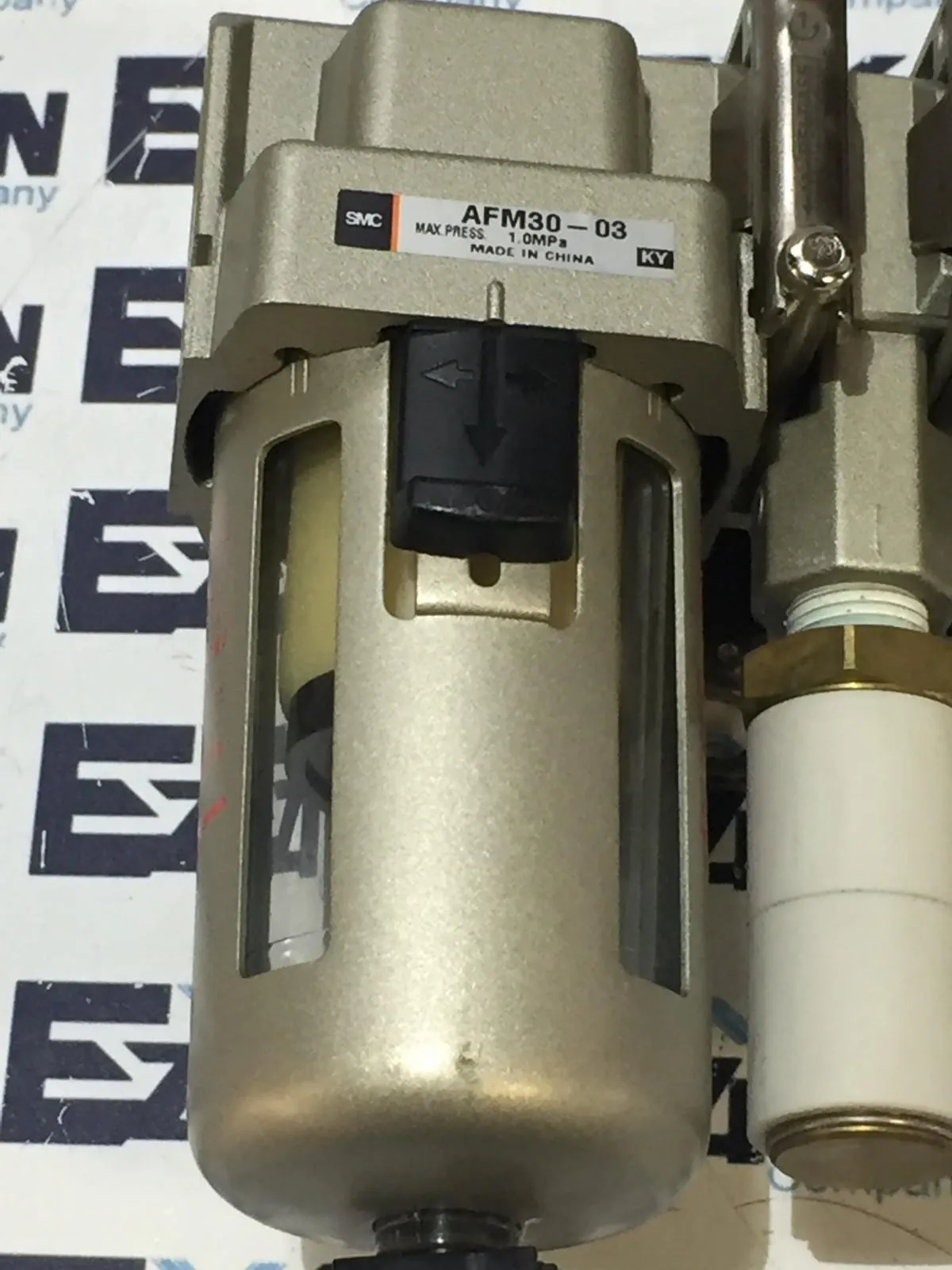

Combination set for pneumatic air system control: the AV3000‑03‑5DZ soft‑start valve provides gradual pressurization and rapid exhaust, while the AFM30‑03 modular mist separator filters oil mist and can be mounted inline with FRL units. Brand: SMC Model: AV3000‑03‑5DZ Function: Soft‑start valve with surge voltage suppressor and indicator light Nominal Size: 3⁄8″ (Rc) Pressure Range: 0.2–1.0 MPa; proof pressure 1.5 MPa Flow Coefficient Cv: 37 (inlet→outlet), Kv≈9.2 dm³/(s·bar) Supply Option: 24 VDC solenoid, DIN terminal entry, 0.35 W power consumption Body Material: Die‑cast aluminum, NBR seals Temperature Range: 0–60 °C Dimensions: 132 × 83.5 × 48 mm (L × H × W) Weight: ~1.0 lb (0.45 kg) Flow Direction: Left→Right, built‑in silencer, manual override Mounting: Modular connectivity with FRL components Brand: SMC Model: AFM30‑03 Function: Modular mist separator (coalescing filter) Body Size: 30 (3⁄8″ port) Filtration Rating: 0.3 µm, 95–99.9% particle capture Max Flow: 450 L/min (16 cfm) Max Pressure: 1.0 MPa (145 psi); proof ~1.5 MPa (218 psi) Bowl Material: Polycarbonate with transparent guard Drain Type: Manual Temperature Range: – Body Material: Polycarbonate/resin; filter service interval ~2 years Mounting: Modular inline; connects with AF series FRL units Weight: ~0.58 lb (0.26 kg) Applications: Oil mist removal and pneumatic system protection Please review pictures carefully and let us know if you have any questions!
