In stock 3 available

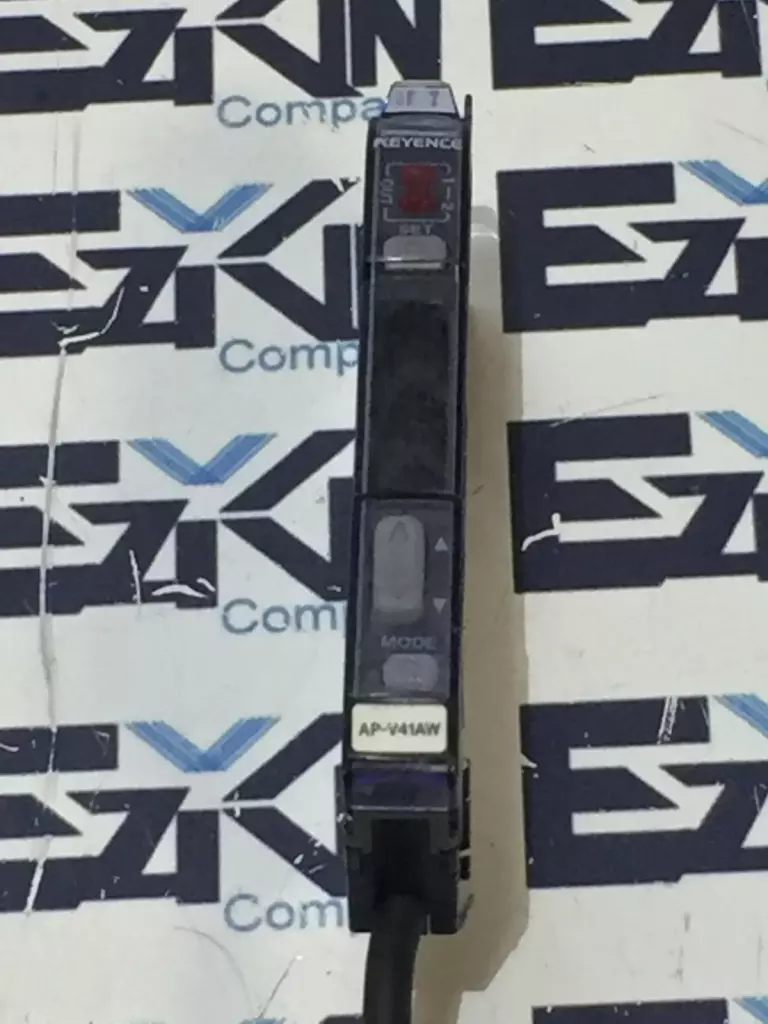

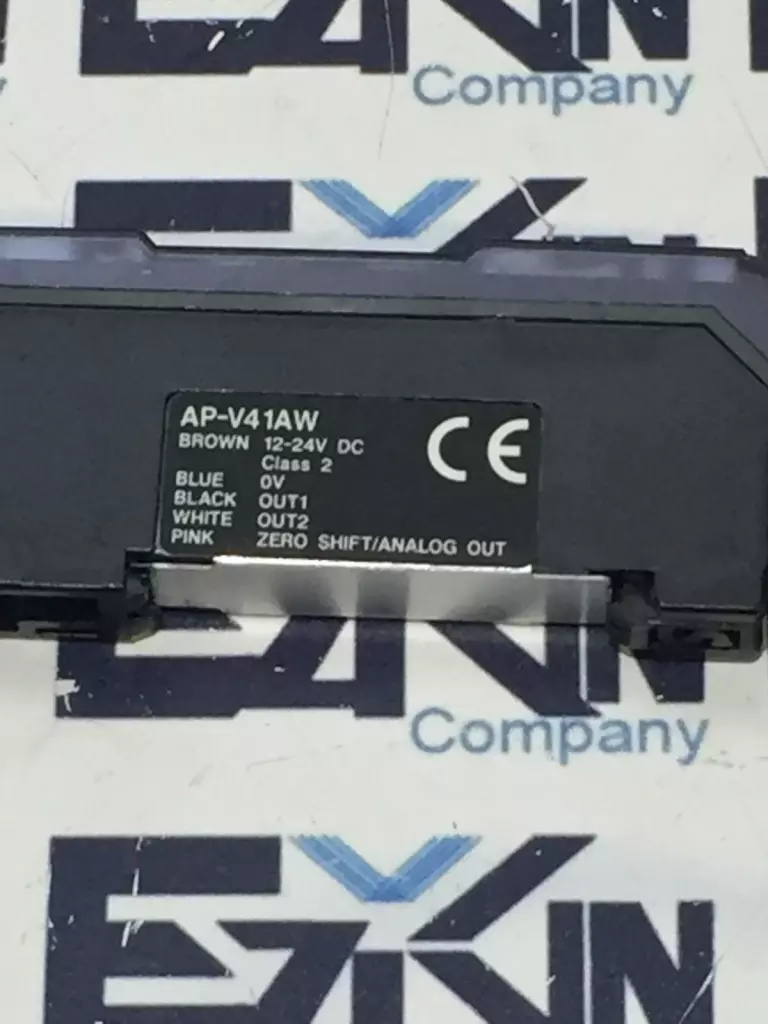

Compact DIN‑rail mount amplifier module for the AP‑V40 series pressure sensor heads; features multi-color LED display and dual NPN outputs for precision pressure measurement and control in pneumatic systems. Brand: Keyence Model: AP‑V41AW Type: Digital pressure sensor amplifier (NPN output) Applicable Sensor Heads: AP‑41M/41/43/44/48 Display: 4½‑digit, 2‑color 7‑segment LED; green AI indicator; red operation LEDs x2 Pressure Range (set/display): –15 % to +110 % of full-scale Repeatability: ±0.2 % of full‑scale Resolution: Varies by sensor head (e.g. 0.1 kPa to 0.001 bar std mode) Analog Output: 1–5 V DC (load ≥1 kΩ); zero‑shift input selectable Control Outputs: Dual NPN open‑collector, 100 mA max, ≤1 V residual; each NO/NC selectable Power Supply: 12–24 VDC ±10 %, ripple ≤10 % Power Consumption: Normal: 24 V 960 mW (40 mA) / Eco: 720 mW (30 mA) Display Refresh Rate: 10 times per second Response Time: Selectable (1, 2.5, 5, 100, 500 ms) Temperature Characteristic: ±1 % of full‑scale max Operating Temp: 0 °C to +50 °C Humidity: 35–85 % RH (no condensation) Vibration Resistance: 10–55 Hz, 1.5 mm amp., 2 h each axis Shock Resistance: 1,000 m/s², 10× each direction Housing Material: Polycarbonate Connection: Pre-wired cable (~2 m) Mounting: DIN‑rail with included bracket Weight: Approx. 80 g (with cable) Certifications: UL/CSA; CE marking Applications: Industrial pneumatic and fluid pressure monitoring, threshold control, automation integration Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.10
Depth: 4.00
Length: 7.00
Width: 7.00
SKU: 4620 4.S7.19.3
