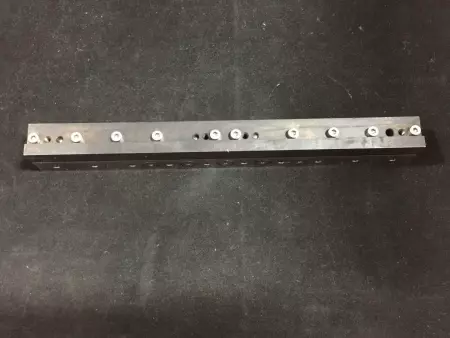

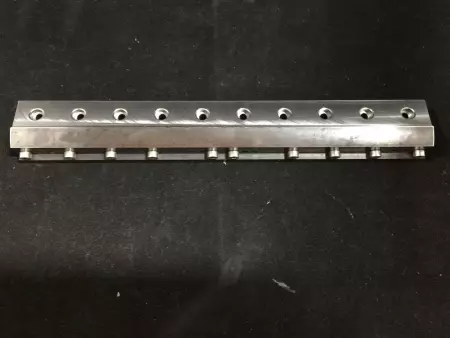

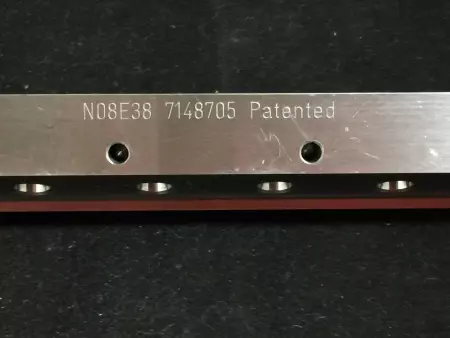

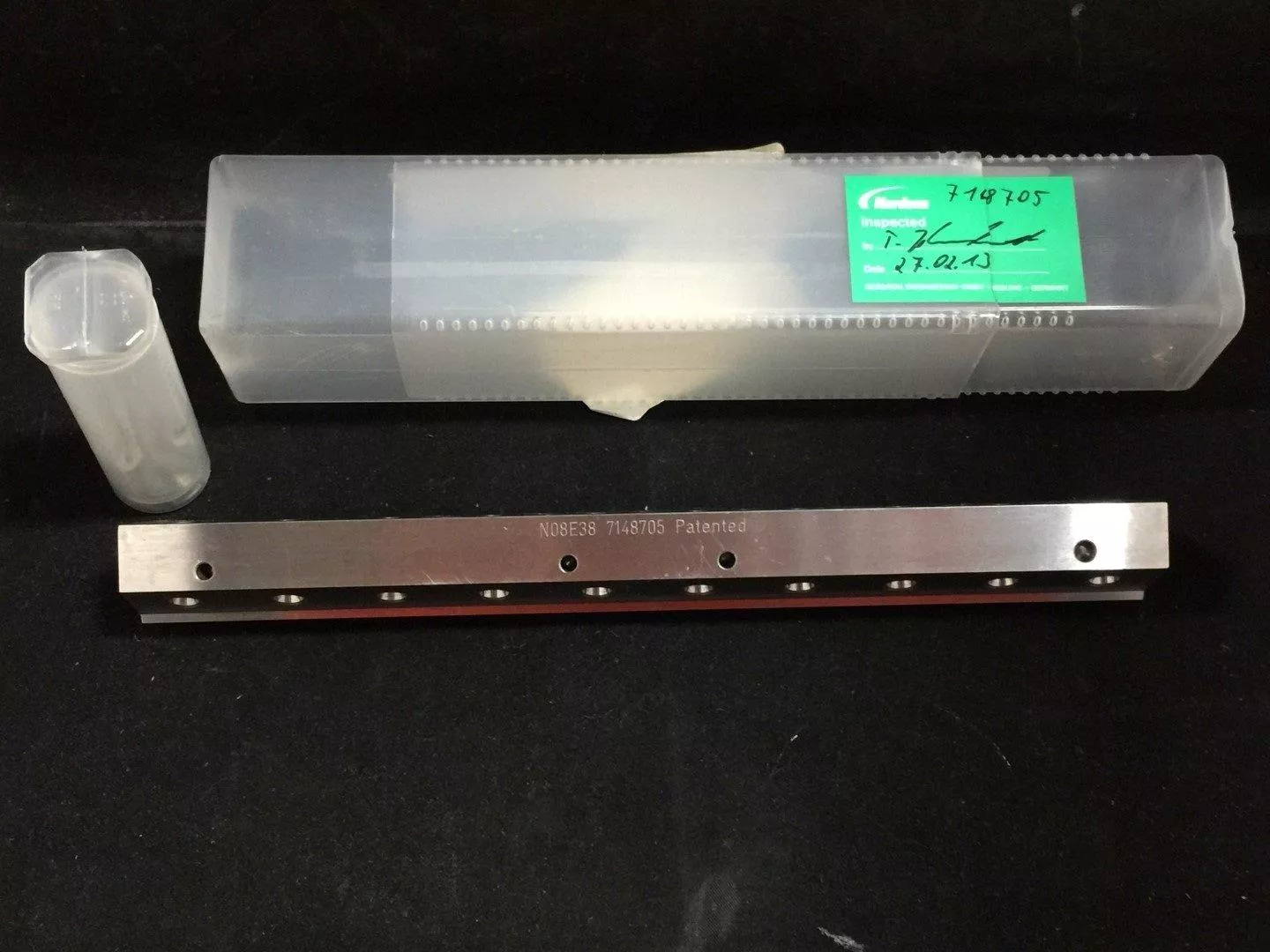

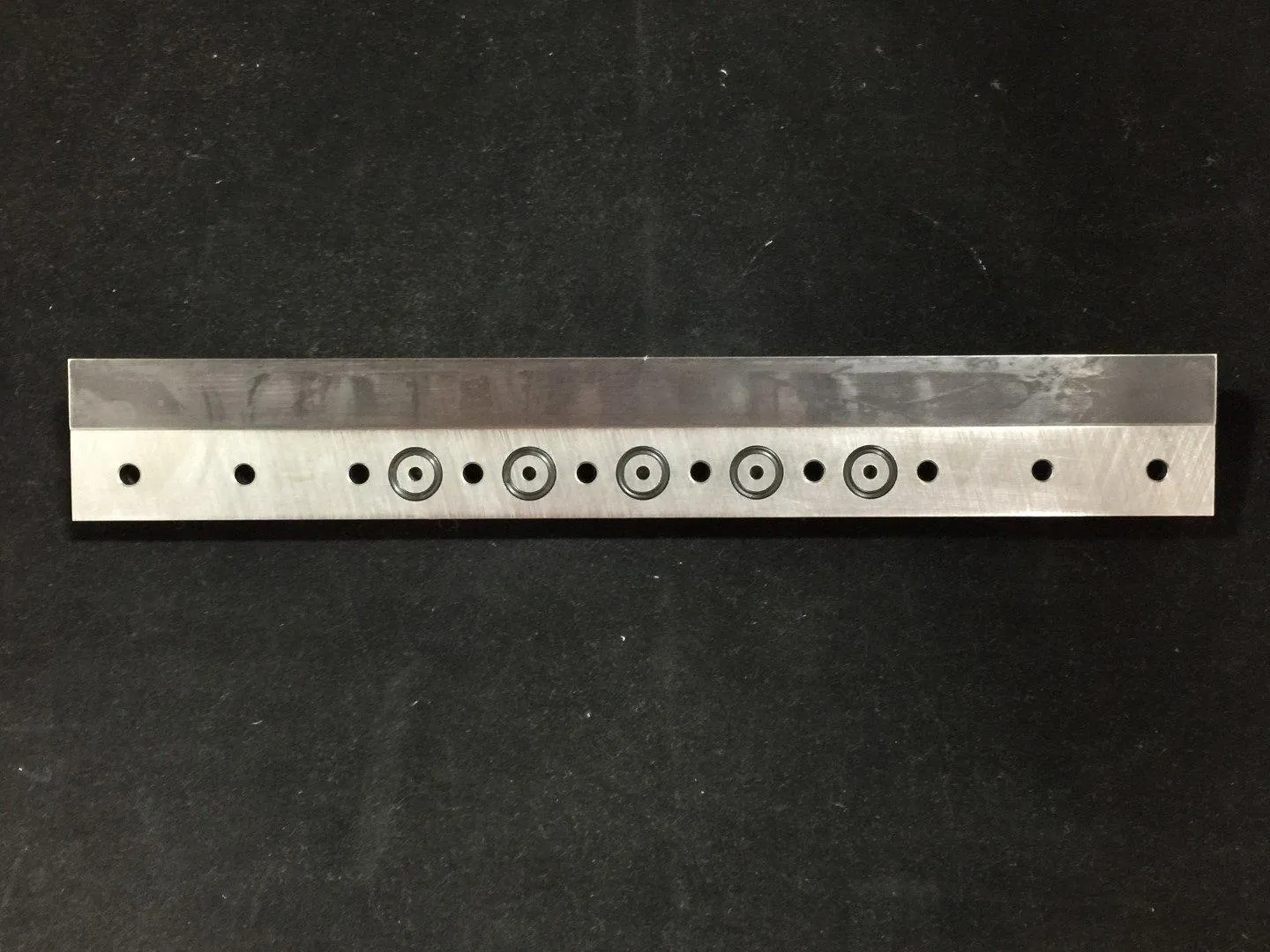

Nordson 7148705 Hot Melt Coating Nozzle 250mm N08E38

The Nordson 7148705 is a hot melt coating nozzle, model N08E38, with a 250 mm width. It's designed for precise, uniform application of hot melt adhesive in slot coating processes, often used in packaging, hygiene products, laminating, and industrial converting lines. Technical Information: Part Number: 7148705 Model: N08E38 Type: Hot Melt Slot Coating Nozzle Coating Width: 250 mm (9.84 in) Bead Style: Slot (continuous flat film application) Slot Size: 0.008" (N08 = 0.008 inch gap) Coating Pattern: Even-width coating for films, fabrics, foils, etc. Material Compatibility: EVA, polyolefin, PSA, and other hot melt adhesives Mounting Interface: Compatible with Nordson coating modules and applicators (e.g. EPC or VersaBlue systems) Heating: Electrically heated via integrated cartridge heaters (voltage rating depends on configuration) Temperature Range: Typically up to 200–230°C Construction: High-grade stainless steel for thermal stability and corrosion resistance

Condition: New

Weight:   6.00

Depth:   6.00

Length:   12.00

Width:   12.00

SKU:   46226 4.S8.17.3
