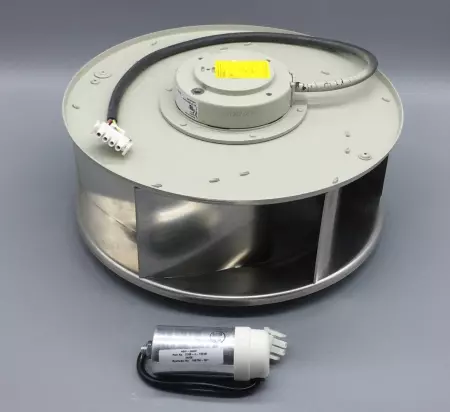

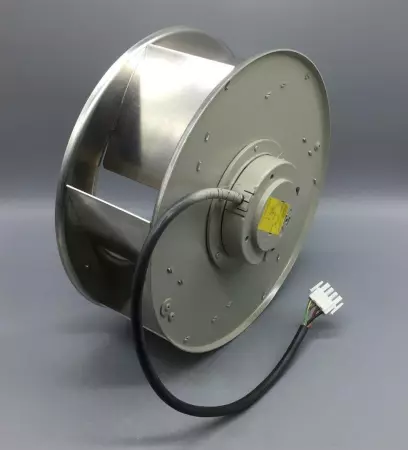

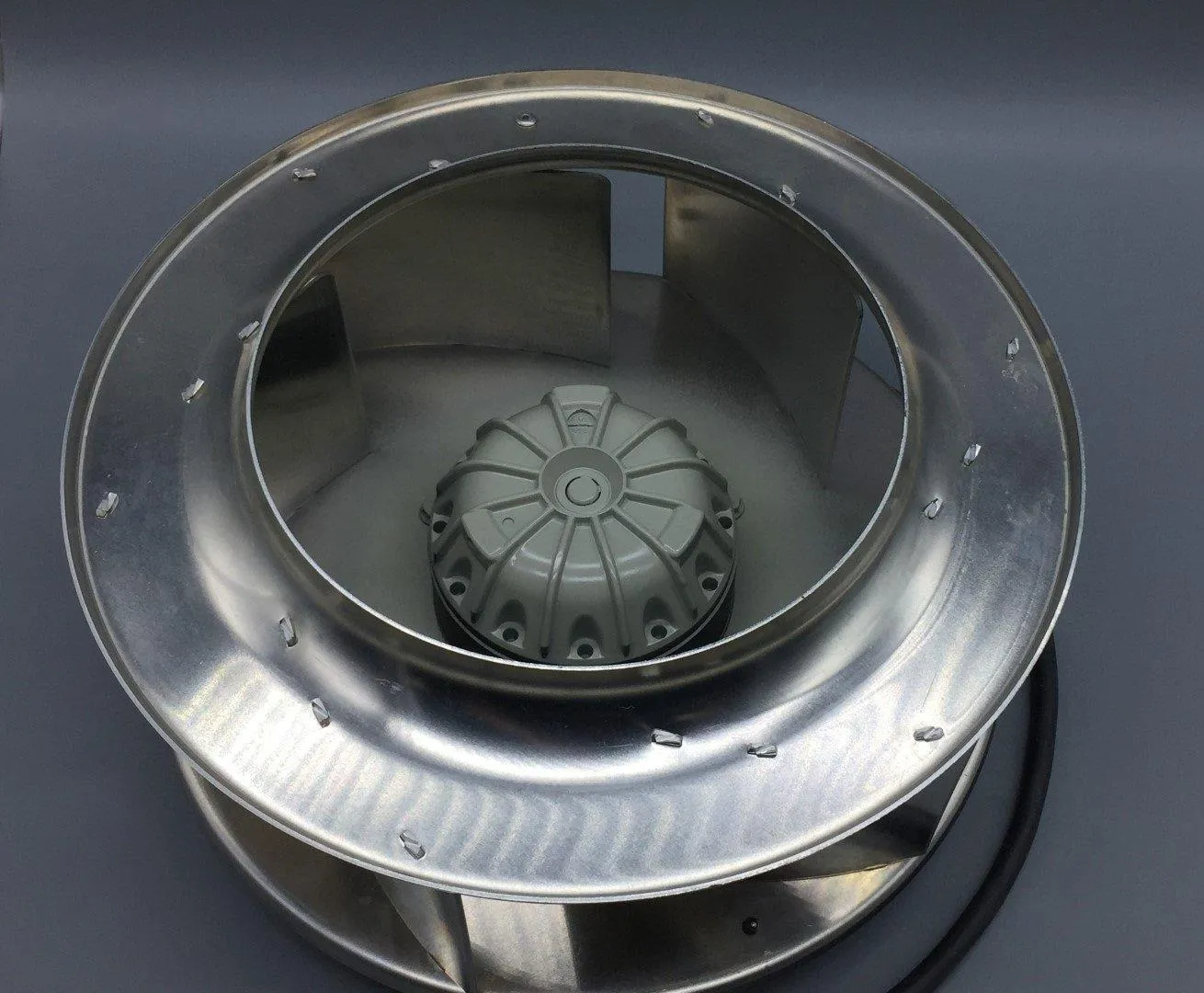

Ziehl-Abegg 2364-SPH03A Bridge Fan & Capacitor D-G Current Codes

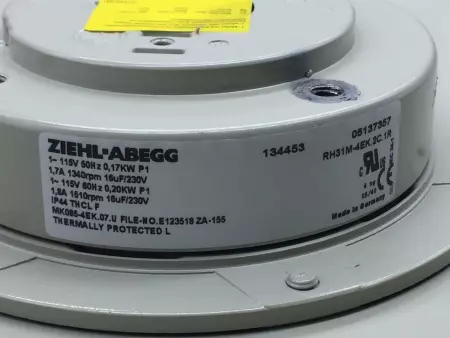

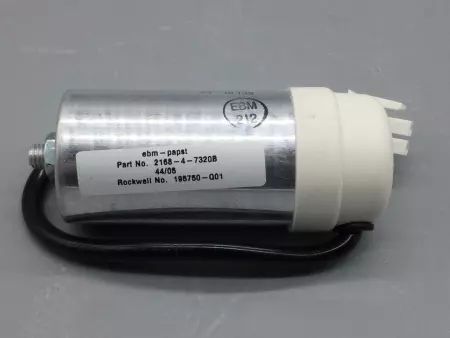

The Ziehl-Abegg 2364-SPH03A is a high-efficiency bridge fan designed for industrial ventilation, typically used in HVAC systems, air handling units, or equipment cooling. This model integrates with external capacitors for optimal motor performance, particularly when driven by single-phase AC. Model: 2364-SPH03A Type: Bridge Fan (Backward-curved centrifugal fan) Motor Type: External rotor motor Voltage: 115 V AC, single-phase Frequency: 50/60 Hz, 1.7-1.8 amps Power Rating: Typically ~0.17–0.20 kW Speed: Approx. 1340 RPM Current: D-code and G-code variations indicate factory programming/config differences; D-G current codes refer to internal parameter sets (e.g., for airflow range, control logic, or sensor feedback) Capacitor Requirement: External run capacitor (typically ~8–10 µF for this range) Bearing Type: Ball bearings, maintenance-free Mounting: Plate or flange mounted Protection Class: IP44 or higher (motor dependent) Insulation Class: F Operating Temperature: -25 °C to +60 °C Application: Air handling units, refrigeration systems, machinery cooling Features: Compact design, low noise, integrated motor-fan assembly, high static pressure capability

Condition: New

Weight:   14.00

Depth:   10.00

Length:   15.00

Width:   15.00

SKU:   46349 4.S6.14.4
