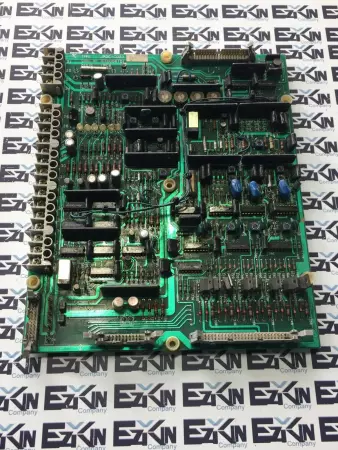

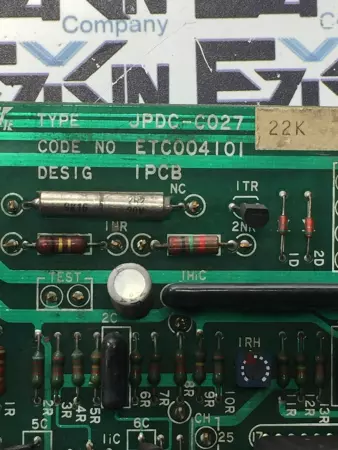

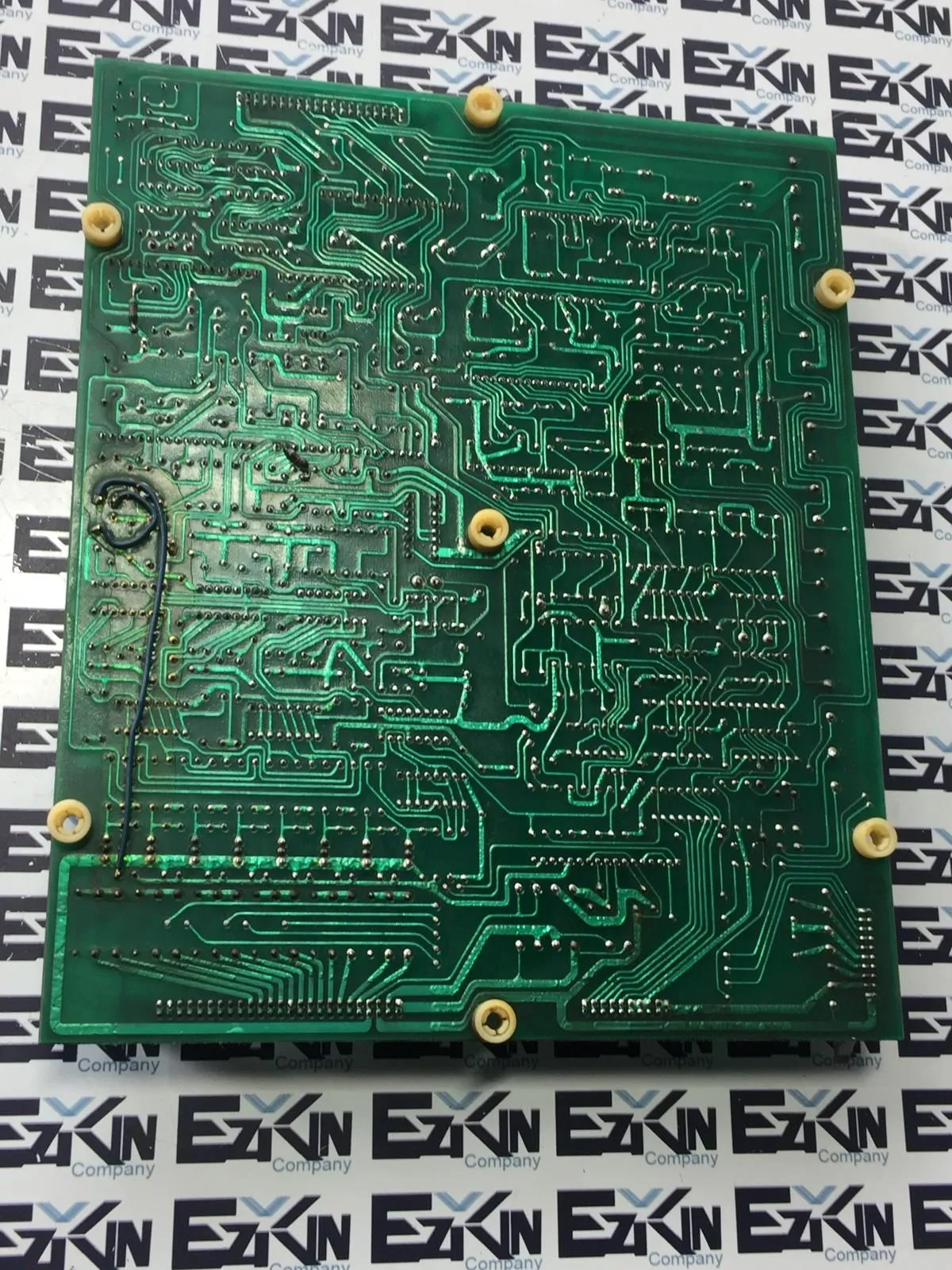

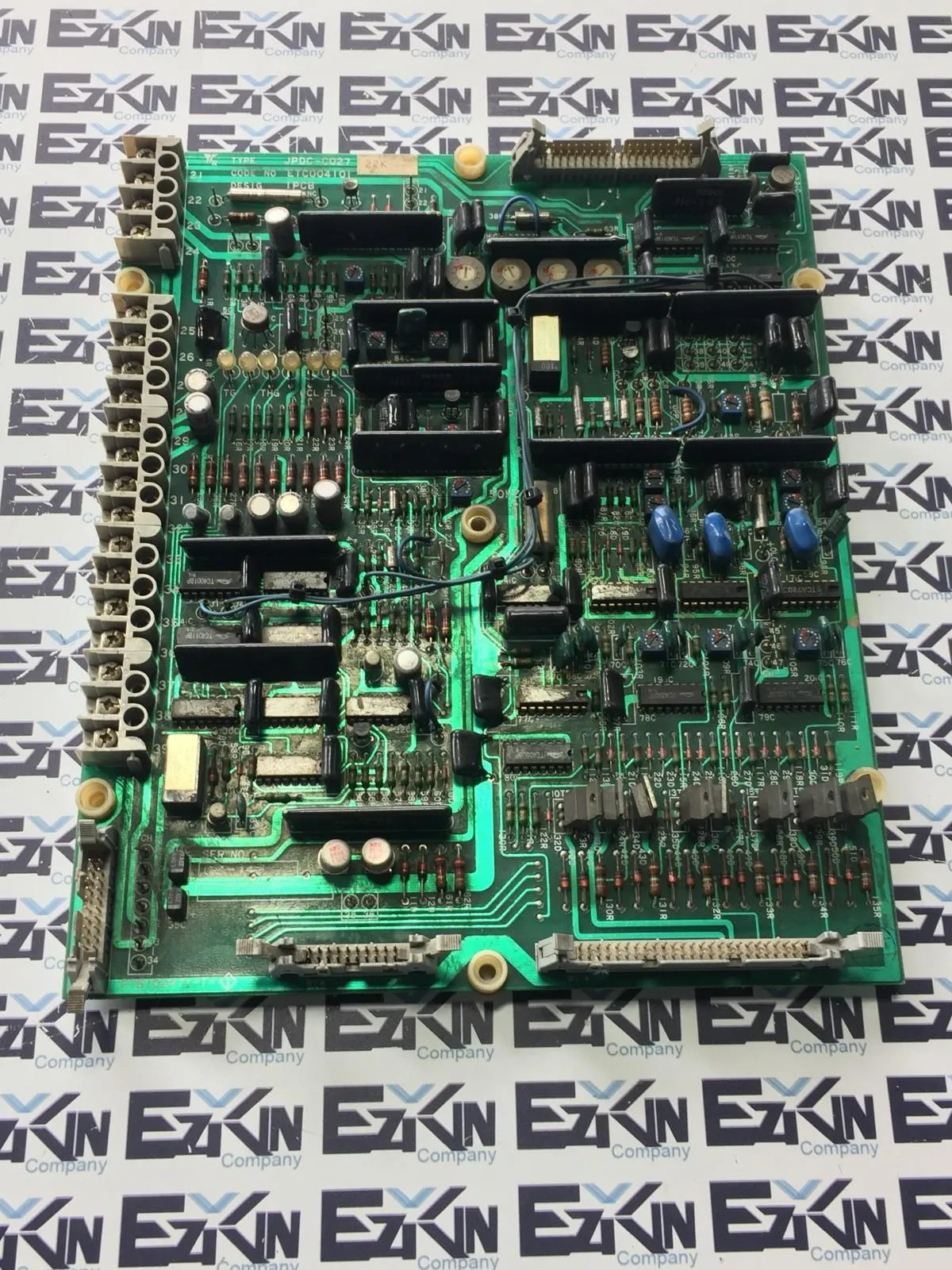

Yaskawa JPDC-C027 Drive Control Board

The Yaskawa JPDC-C027 is an industrial drive control board used in Yaskawa variable frequency drives (VFDs) or servo systems. It functions as a central control module, managing power electronics, communication interfaces, and motor control algorithms for high-performance drive applications. Model Number: JPDC-C027 Manufacturer: Yaskawa Electric Corporation Function: Drive control board (central processor for inverter or servo drive) Application: VFDs or servo amplifier systems in automation and motion control Board Type: PCB module with surface-mount and through-hole components Inputs/Outputs: Digital and analog I/O channels for control and feedback Communication: May include RS-485, CANopen, or proprietary serial interface (depends on system integration) Voltage: Low-voltage control circuitry (typically powered via drive’s main PCB) Mounting: Internal chassis mounting with board-to-board connectors Compatible Systems: Specific to Yaskawa drives (model-dependent—used in certain GA, V1000, or Sigma series systems) Typical Functions: – Motor vector control – Speed/torque feedback processing – Fault detection and diagnostics – Interface with user keypad or HMI Manufacturing Origin: Japan (Yaskawa Electric Corp. headquarters and major PCB production)

Condition: Used

Weight:   1.04

Depth:   10.00

Length:   24.00

Width:   16.00

SKU:   4639 4.S8.8.5C
