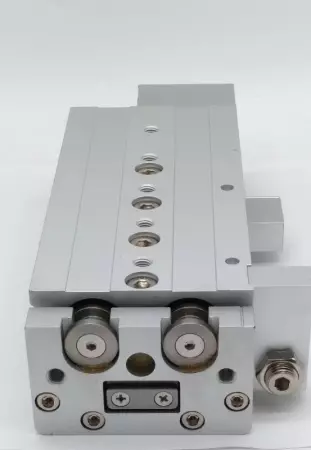

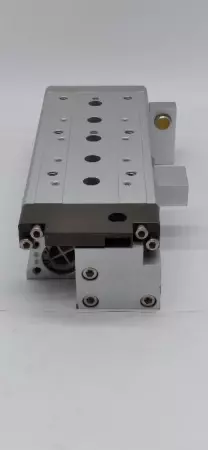

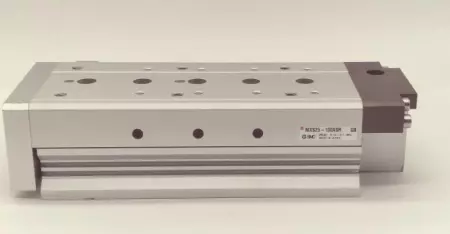

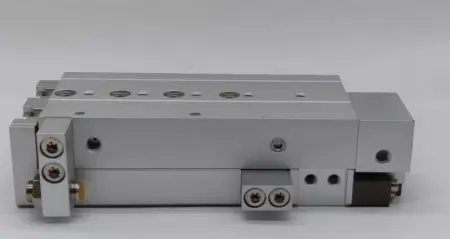

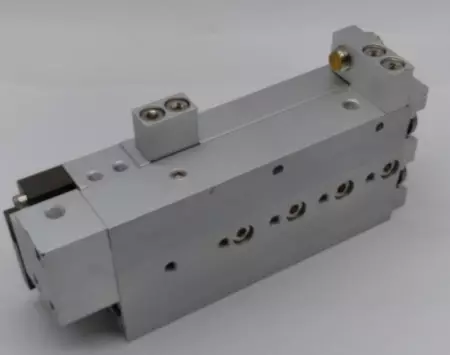

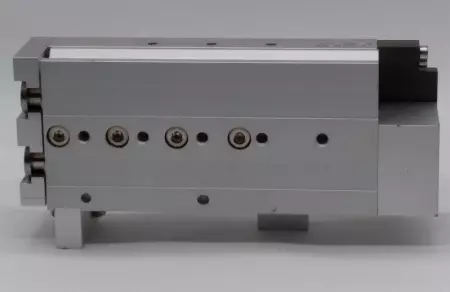

SMC MXS25-125ASR Cylinder Slide Table, 125mm Stroke 25 Piston Dia

SMC MXS25-125ASR is a compact air cylinder with an integrated precision slide table, designed for high-accuracy linear motion in limited spaces. It provides controlled stroke with high rigidity and is suitable for pick-and-place, material handling, and assembly automation. Specifications: Manufacturer: SMC Corporation Model: MXS25-125ASR Series: MXS Bore Size: 25 mm Stroke Length: 125 mm Table Type: Dual-rod with built-in linear guide Mounting: Side and bottom tapped mounting holes Port Type: Rc (taper pipe thread) or optional NPT/G Cushion: Air cushion + rubber stopper (ASR = Auto switch, Rubber stopper) Max Operating Pressure: 0.7 MPa (101.5 psi) Operating Pressure Range: 0.15–0.7 MPa Ambient & Fluid Temperature: 5–60°C Repeatability: ±0.01 mm Lubrication: Not required (pre-lubricated) Auto Switch: Compatible with SMC solid-state or reed switches (A type includes switch rail) Application: Precision linear motion in compact automation setups like robotics, pick-and-place units, or part feeders

Condition: Used

Weight:   10.00

Depth:   6.00

Length:   20.00

Width:   20.00

SKU:   46728 4.S4.9.1
