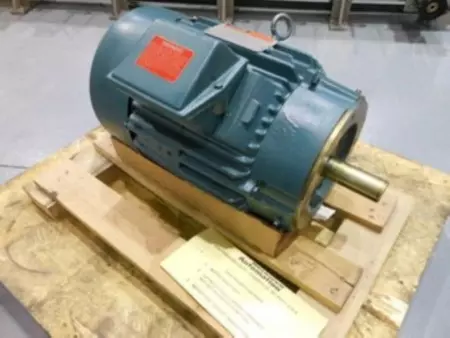

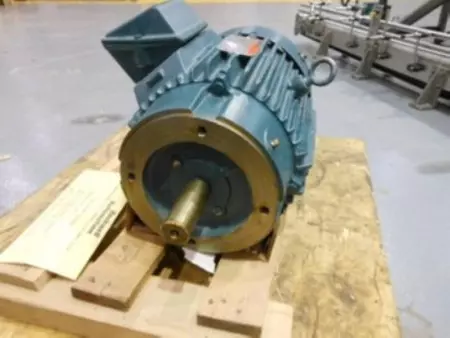

Reliance Electric P21G1101 Duty Master® AC Motor, 7.5HP Frame L213TC

The Reliance Electric P21G1101 Duty Master® AC Motor is a premium industrial motor designed for continuous-duty applications requiring high reliability and efficiency. It delivers 7.5 horsepower and is built into a robust L213TC frame, suitable for demanding environments such as pumps, compressors, conveyors, and general machinery. Technical Specifications Motor Type: AC induction motor Horsepower: 7.5 HP Frame Size: L213TC Mounting: Foot-mounted (C-face with feet) Enclosure Type: TEFC (Totally Enclosed Fan Cooled) Speed: 1765 RPM Voltage: 230/460V AC, 3-phase Frequency: 60 Hz Full Load Amperage: 18.4A at 230V / 9.2A at 460V Service Factor: 1.15 Insulation Class: F Duty Rating: Continuous Ambient Temperature: 40°C max Bearing Type: Ball bearing, sealed Shaft Diameter: Standard NEMA C-face dimensions Weight: Approx. 200–220 lbs Application Range: Industrial machinery, HVAC, pumping, conveying systems

Condition: Used

Weight:   265.00

Depth:   17.00

Length:   25.00

Width:   18.00

SKU:   46788 4.R6.1.1
