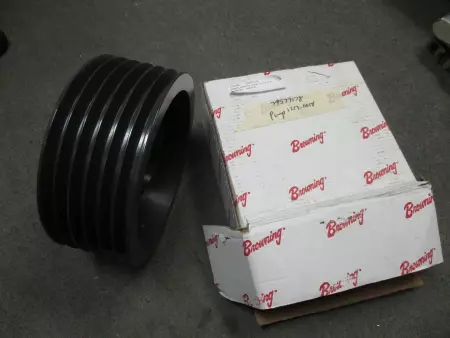

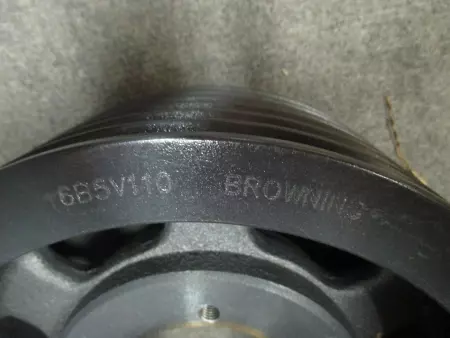

Browning 6B5V110 6-Grove Idler Sheave 11.28" OD, 4-19/32"W

The Browning 6B5V110 is a six-groove fixed-pitch idler sheave, designed for A, B, and 5V belt sections to provide efficient power transmission in industrial applications. Key Specifications: Number of Grooves: 6 Outside Diameter (O.D.): 11.28 inches Pitch Diameter: A Section: 10.80 inches B Section: 11.30 inches 5V Section: 11.10 inches Bore Type: Uses R1 series split taper bushing (bushing sold separately) Material: Cast iron Face Width: 4-19/32 inches (4.5938") Weight: Approx. 45.69 lbs Key Features: Combination Groove Design – Works with A, B, and 5V belt sections, offering versatility for different applications. Bushed Bore System – Designed for use with a split taper bushing, allowing secure shaft mounting and high torque transfer. Heavy-Duty Cast Iron Construction – Ensures high durability and long service life, even in demanding environments. Precision Machining – Provides smooth belt engagement, reducing vibration and increasing belt life.

Condition: New

Weight:   40.00

Depth:   13.00

Length:   6.00

Width:   13.00

SKU:   47182 4.S5.12.1
