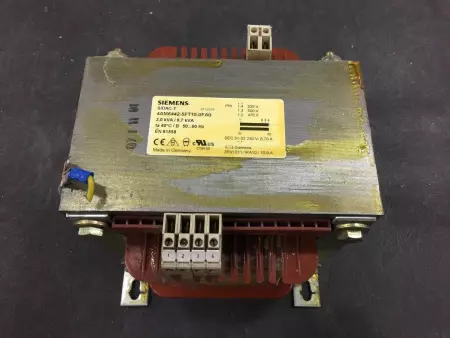

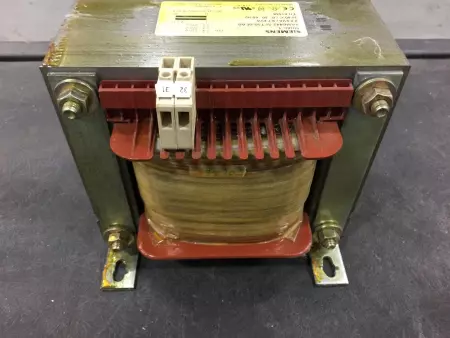

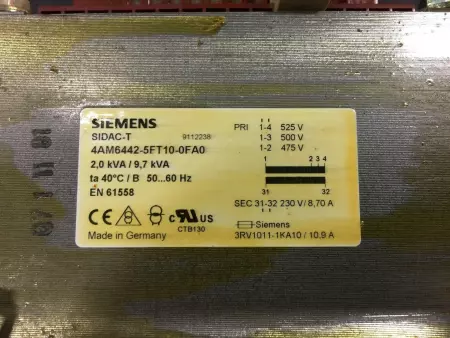

Siemens 4AM6442-5FT10-0FA0 SIDAC-T Transformer 2.0KVA/9.7KVA

The Siemens 4AM6442-5FT10-0FA0 SIDAC-T is a control and isolating transformer designed for industrial applications. It delivers high reliability and electrical isolation, commonly used in control systems, machinery, and automation panels. It supports dual power ratings for different duty cycles. Product Type: Control/Isolating Transformer Series: SIDAC-T Part Number: 4AM6442-5FT10-0FA0 Power Rating: 2.0 kVA (continuous duty), 9.7 kVA (short-time duty) Primary Voltage: up to 525 V Secondary Voltage: 230 V Frequency: 50/60 Hz Insulation Class: F Protection Class: IP00 Cooling: Natural air cooling (AN) Mounting: Foot-mounted Core Type: Laminated core Ambient Temperature Range: -25 °C to +40 °C Standards Compliance: IEC/EN 61558 Application: Industrial control circuits, automation panels, machinery power isolation Weight: Approx. 40–50 kg (varies slightly by configuration)

Condition: Used

Weight:   55.00

Depth:   20.00

Length:   20.00

Width:   20.00

SKU:   47402 4.R2.4.2
