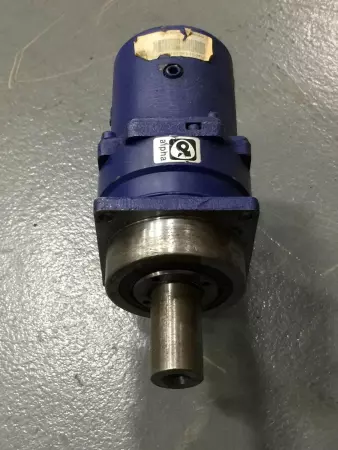

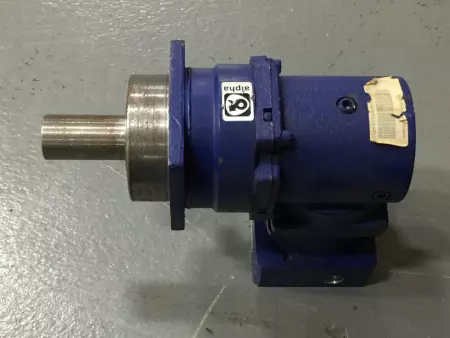

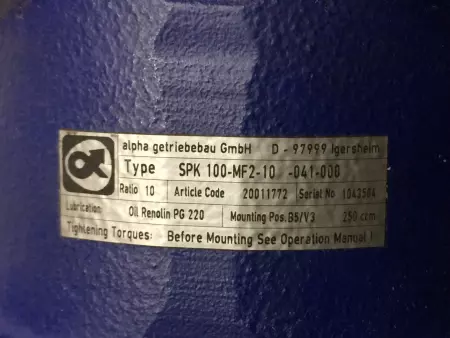

Alpha SPK 100-MF2-10-041-000 Right Angle Gear Box, Ratio10:1

The Alpha SPK 100-MF2-10-041-000 is a high-precision right-angle planetary gear reducer designed for dynamic servo applications. Its compact design with spiral bevel gear transmission ensures quiet operation, high torsional stiffness, and optimal performance in limited space. Model: SPK 100-MF2-10-041-000 Manufacturer: Alpha (Wittenstein) Gear Type: Right Angle Planetary Gearbox Gear Ratio: 10:1 Frame Size: 100 mm Input Interface: MF2 (Motor Flange Type 2) Output Shaft: Smooth shaft (041 – standard type) Nominal Output Torque: 230 Nm Max Output Torque: 360 Nm Max Input Speed: 6,000 rpm Torsional Backlash: ≤ 6 arcmin Efficiency: ≥ 94% Lubrication: Lifetime, synthetic grease Mounting Position: Universal Protection Class: IP65 Weight: Approx. 7.8 kg Operating Temperature: -25°C to +90°C Construction: High-precision ground steel gears, aluminum housing

Condition: Used

Weight:   27.00

Depth:   9.00

Length:   13.00

Width:   6.00

SKU:   47408 4.R1.5.7
