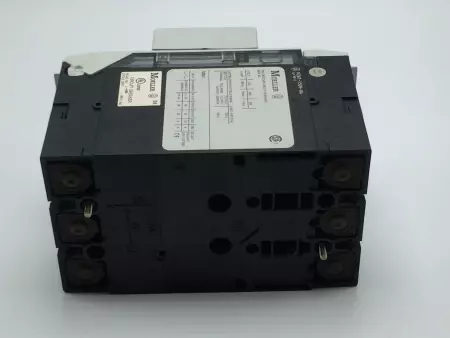

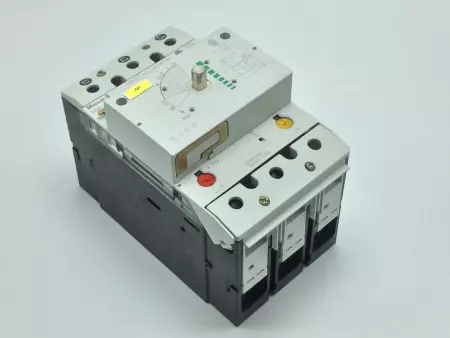

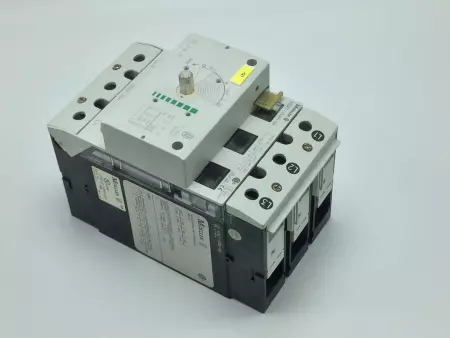

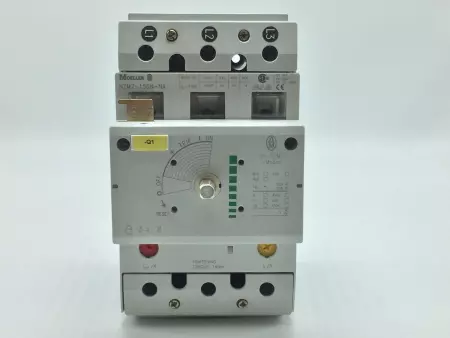

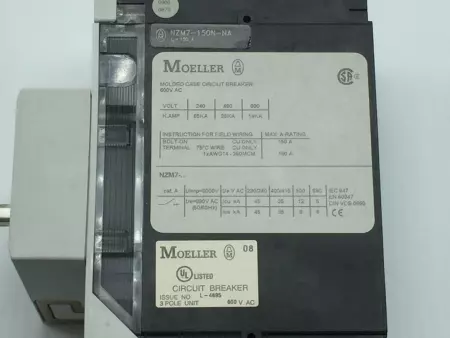

Moeller NZM7-150N-NA Molded Case Circuit Breaker 150A w/ DA-NZM7 Rotary Drive

The Moeller NZM7-150N-NA is a 3-pole Molded Case Circuit Breaker (MCCB) rated at 150A, designed for use in power distribution and motor protection applications. It includes the DA-NZM7 rotary handle operator, allowing door-mounted manual operation with a clear ON/OFF/TRIP indication. The breaker is part of Moeller’s NZM7 series, known for robust performance in industrial settings. Model: NZM7-150N-NA Rated Current (In): 150 A Frame Size: NZM7 Poles: 3-pole Interrupting Capacity: 65 kA at 480V AC (varies by model/configuration) Voltage Rating: Up to 600V AC Trip Unit Type: Fixed thermal-magnetic trip unit Mounting: Panel mount Terminal Type: Box lugs or bolt-on terminals (depends on variant) Auxiliary Features: Can be equipped with auxiliary contacts, shunt trips, undervoltage releases (optional) Rotary Handle: DA-NZM7 Handle Functionality: Door-coupling rotary operator, lockable in OFF position, visible status indication Applications: Feeder and branch circuit protection, motor circuits, control panel distribution Standards Compliance: UL 489, CSA, IEC 60947-2 Dimensions: Approx. 260 mm H × 105 mm W × 86 mm D (breaker only)

Condition: Used

Weight:   8.00

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   47449 4.S4.3.1
