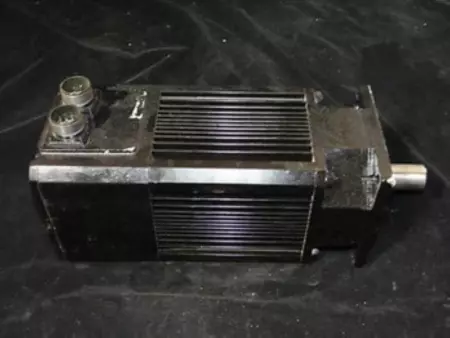

Pacific Scientific R67HENA-R2-NS-NV-00 Brushless Servo Motor, 3.4kW

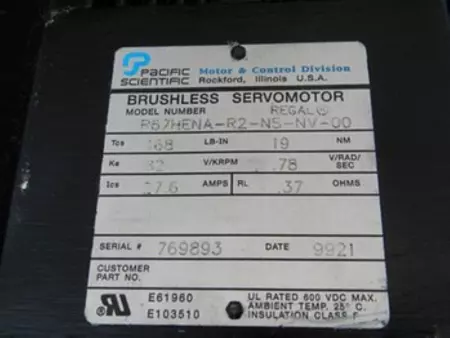

The R67HENA-R2-NS-NV-00 is a high-performance brushless servomotor designed by Pacific Scientific for precision motion control applications. It delivers reliable torque and speed control in automation systems and is known for its robust construction and consistent efficiency. Model: R67HENA-R2-NS-NV-00 Manufacturer: Pacific Scientific (Motor & Control Division, Rockford, Illinois, U.S.A.) Torque (Tc): 168 oz-in (approx. 1.18 Nm) Torque (Tcs): 19 Nm Voltage Constant (Ke): 32 V/krpm (equivalent to 7.8 V/rad/sec) 320 VDC Continuous Current (Ics): 27.6 A Resistance (RL): 0.37 Ohms Power Rating: 3.4 kW Insulation Class: F Maximum Voltage: 600 VDC (UL rated) Ambient Temperature: 25°C Origin: Made in U.S.A.

Condition: Used

Weight:   52.00

Depth:   7.00

Length:   12.00

Width:   10.00

SKU:   47481 4.R1.3.5
