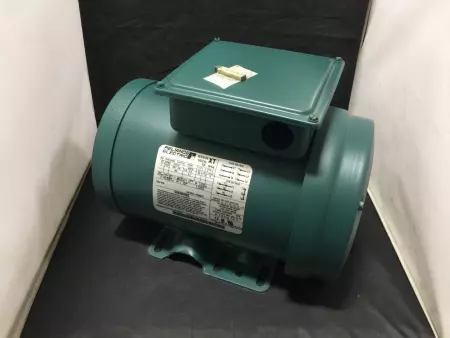

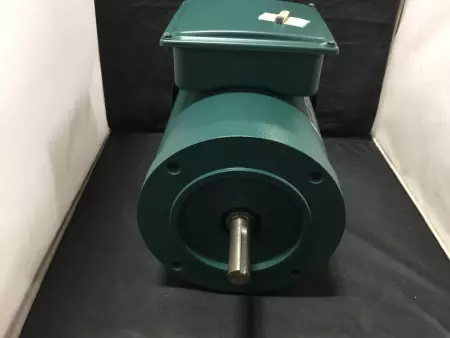

Reliance Electric P56X3948R AC Motor, 2HP Frame FC56C

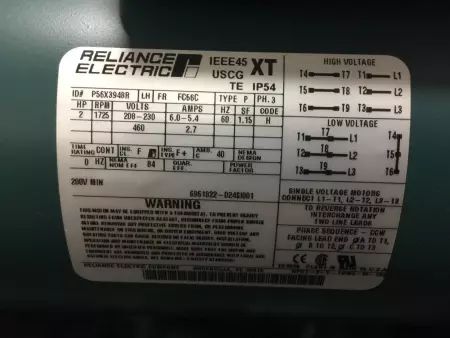

The Reliance Electric P56X3948R is a 2 HP three-phase AC induction motor, built for industrial applications requiring dependable performance and dual-voltage compatibility. Its compact FC56C frame with TEFC (Totally Enclosed Fan Cooled) design provides versatility in mounting and durability in varied environments. Brand: Reliance Electric Model: P56X3948R Horsepower: 2 HP Speed: 1725 RPM Voltage: 208–230/460 V (dual voltage) Current: 6.0–5.4 A @ 208–230V, 2.7 A @ 460V Frequency: 60 Hz Phase: 3-phase Frame: FC56C Enclosure: TEFC (Totally Enclosed Fan Cooled) Protection Rating: IP54 Insulation Class: B Service Factor (SF): 1.15 Power Factor: H Efficiency (NEMA Nom.): 84% Mounting: C-face with base Ambient Temp Rating: 40°C Duty Cycle: Continuous (CONT) Origin: Made in USA Application: Pumps, conveyors, compressors, fans, and general industrial machinery where robust, continuous-duty operation is required.

Condition: New

Weight:   40.00

Depth:   8.00

Length:   14.00

Width:   9.00

SKU:   47622 4.R6.5.3
