In stock 2 available

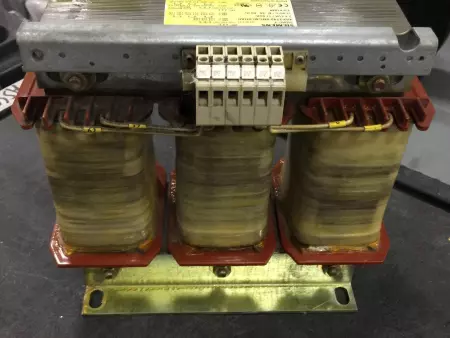

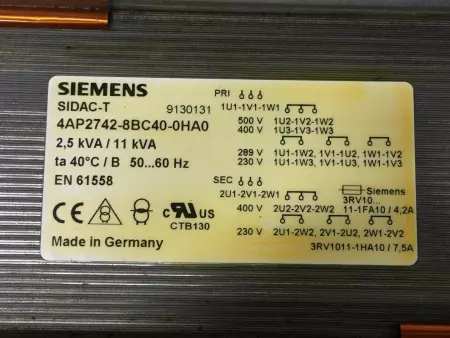

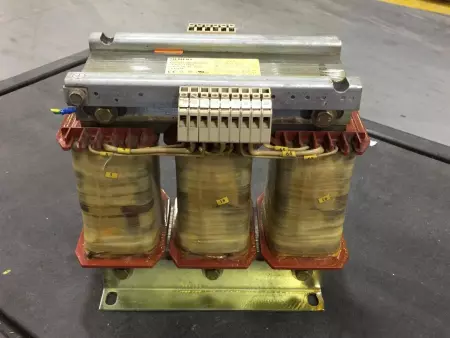

The Siemens 4AP2742-8BC40-0HA0 is a three-phase SITAS transformer designed for industrial applications requiring reliable voltage transformation and isolation. This transformer offers a rated power of 2.5 kVA and is suitable for use in control circuits and as an isolation transformer. Key Specifications: Phases: 3 Rated Power (PN): 2.5 kVA Primary Voltage (UPRI): Y 500/400 V; Δ 289/230 V Secondary Voltage (USEC): Y 400 V; Δ 230 V Secondary Current (ISEC): 3.6 - 6.26 A Frequency (F): 50...60 Hz Vector Group/Shield Winding: IIIIII0 /0 Ambient Temperature (TA): 40°C Insulation Class: B Protection Class: IP00 Terminal Type: Screw/Tab Connection Installation Method: Screw Mounting Standards Compliance: EN 61558-2-1, -2-2, -2-4; UL/CSA Recognized This transformer is designed with a 3UI 132/70 iron core construction and features screw-type terminals for both input and output connections. Its compact dimensions are approximately 264 mm in width and 242 mm in height and depth, with a net weight of 26.55 kg. The transformer operates with an efficiency of 94% and is built to meet international standards, ensuring safety and performance in various industrial environments.
Condition: Used
Weight: 65.00
Depth: 20.00
Length: 20.00
Width: 20.00
SKU: 47713 4.R2.4.2
