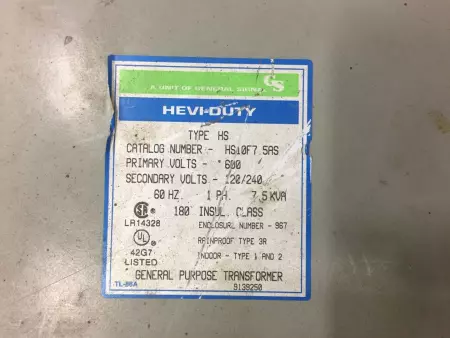

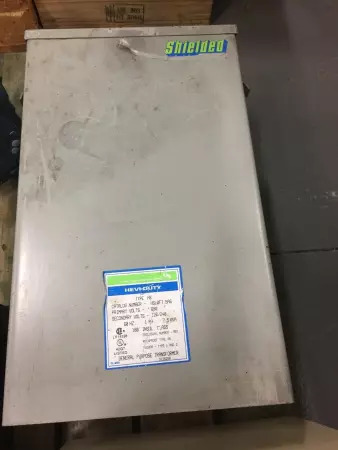

The General Signal HS10F7.5AS is a 7.5 kVA single-phase general-purpose transformer from the SolaHD Hevi-Duty series, designed for industrial automation and power distribution applications. It is engineered to provide reliable voltage conversion in harsh environments, including those classified as hazardous locations. Key Specifications Power Rating: 7.5 kVA Primary Voltage: 600 V AC Secondary Voltage: 120/240 V AC Frequency: 60 Hz Phase: Single-phase Enclosure Type: NEMA 3R (non-ventilated, suitable for indoor and outdoor use) Insulation Class: 180°C (Class H) Temperature Rise: 115°C under full load Dimensions: 17" H × 14" W × 9" D (431.8 mm × 355.6 mm × 228.6 mm) Weight: Approximately 135 lbs (61.2 kg) Certifications: UL Listed, suitable for Class I, Division 2, Groups A-D hazardous locations when installed per NEC 501.100(B) This transformer features an encapsulated design with a rugged enclosure that protects against dust, moisture, shock, and vibration, making it ideal for demanding industrial settings.
Condition: Used
Weight: 510.00
Depth: 20.00
Length: 20.00
Width: 20.00
SKU: 47868 4.R7.1.4
