In stock 1 available

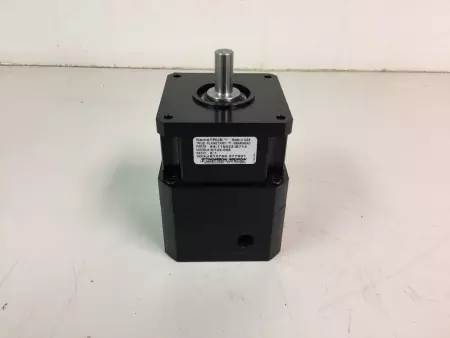

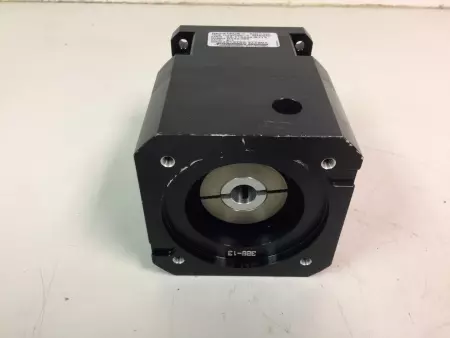

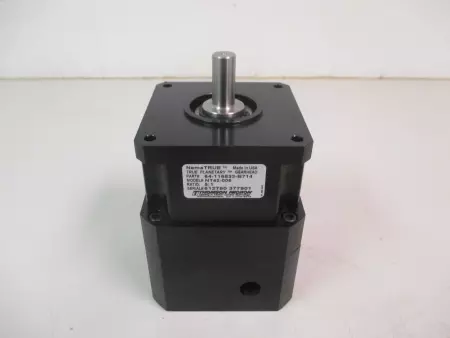

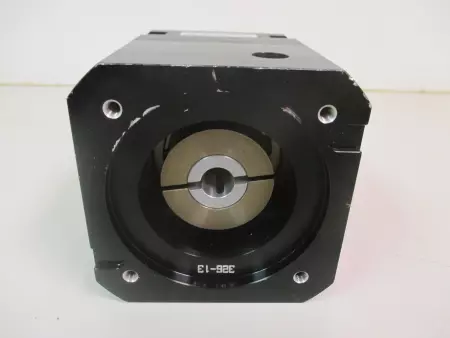

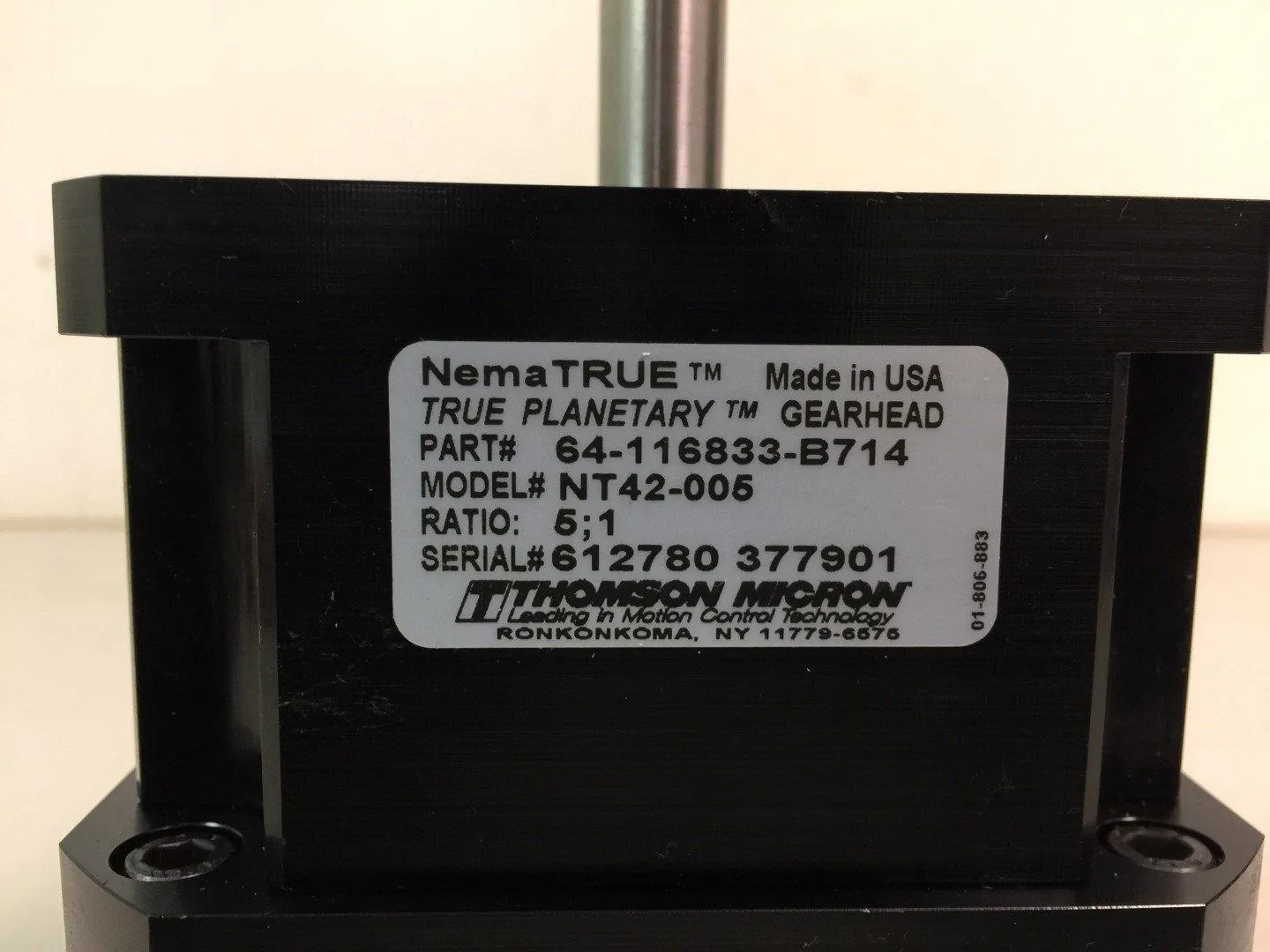

The Thomson Micron 34-116833-B714 is a NemaTRUE™ series planetary gearbox designed for high torque density and low backlash in compact servo applications. It is compatible with NEMA 34 frame motors and features a 5:1 gear ratio for optimized speed reduction and torque multiplication. Model: 34-116833-B714 Manufacturer: Thomson Micron Series: NemaTRUE™ Planetary Gearbox Frame Size: NEMA 34 Gear Ratio: 5:1 Output Shaft: Single, straight shaft with key (standard B714 configuration) Rated Output Torque: Approx. 31 Nm (varies slightly by configuration) Max Acceleration Torque: Up to 50 Nm Backlash: ≤ 15 arcmin (standard precision) Efficiency: ≥ 95% Mounting: Face-mount, NEMA 34-compatible Lubrication: Lifetime synthetic grease, maintenance-free Operating Temperature: -20°C to +90°C Construction: Aluminum housing with precision-ground planetary gears Protection Class: IP54 Application: Servo-driven automation, packaging, and robotics
Condition: New
Weight: 15.00
Depth: 8.00
Length: 8.00
Width: 8.00
SKU: 47869 4.R1.4.5
