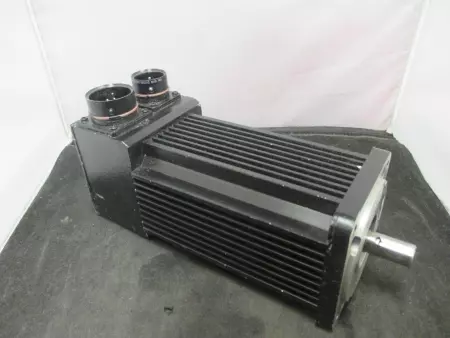

Allen-Bradley 1326AS-B330H-21 SER.A Electric Servo Motor, 0.9kW

The Allen-Bradley 1326AS-B330H-21 is a high-performance AC brushless servo motor from the 1326AS series. Rated at 0.9 kW, it is designed for precision motion control in demanding industrial applications, such as packaging, material handling, and robotics. Technical Information: Manufacturer: Allen-Bradley (Rockwell Automation) Model Number: 1326AS-B330H-21 Series: A Motor Type: Brushless AC servo motor Rated Power Output: 0.9 kW (900 W) Frame: 75 mm Rated Speed: 3000 RPM Peak Speed: Up to 6500 RPM Rated Torque: ~2.0 Nm (varies slightly by version) Peak Torque: ~8.7 Nm Voltage Class: 460V AC (3-phase) Current: Rated continuous ~2.1 A Feedback Device: High-resolution encoder (typically optical incremental encoder or resolver) Shaft Type: Straight shaft with key Brake Option: Not included (model "21" indicates no holding brake) Mounting: Flange mount (IEC/NEMA compatible) Enclosure Rating: IP65 (dust-tight, water-jet resistant) Cooling: Natural convection Insulation Class: F Applications: CNC machinery, conveyor systems, automated packaging, pick-and-place systems Compatible Drives: Allen-Bradley 1394, Ultra series servo drives (check exact firmware and cable compatibility)

Condition: Used

Weight:   15.00

Depth:   10.00

Length:   10.00

Width:   10.00

SKU:   47870 4.R3.5.1
