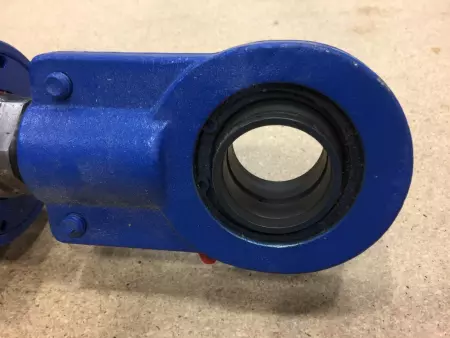

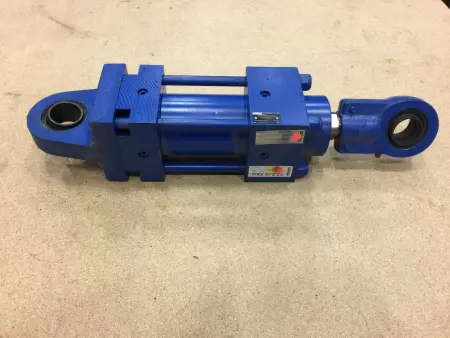

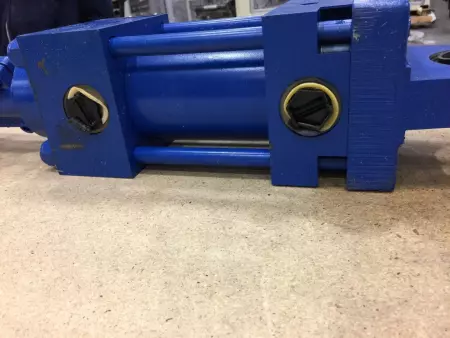

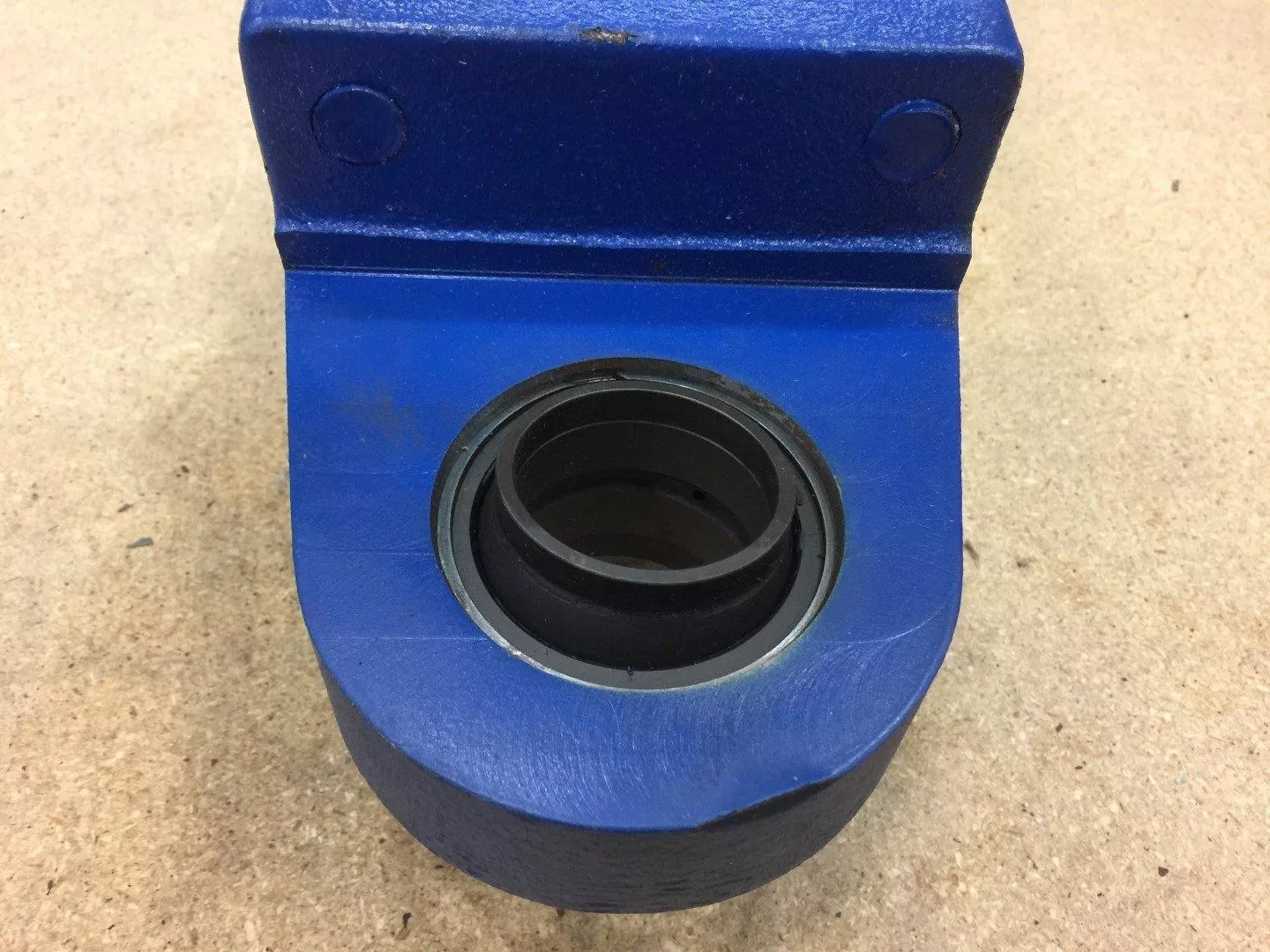

Rexroth C160TH/80/45/1/MP6 Hydraulic Cylinder

​The Rexroth C160TH/80/45/1/MP6 is a hydraulic cylinder designed for industrial applications requiring precise and reliable linear motion control. This model adheres to ISO 6020/1 standards, ensuring compatibility with various systems and facilitating straightforward integration.​ Key Features Bore Diameter: 160 mm​ Rod Diameter: 80 mm​ Stroke Length: 45 mm​ Mounting Type: MP6 (center trunnion)​ Nominal Pressure: 160 bar​ Design: Mill-type construction​ Cushioning: Adjustable end-position cushioning​ The MP6 mounting style, characterized by a center trunnion, offers flexibility in installation, allowing the cylinder to pivot during operation. The adjustable end-position cushioning enhances performance by minimizing impact forces at the end of the stroke, thereby reducing wear and extending the service life of the cylinder.

Condition: Used

Weight:   60.00

Depth:   6.00

Length:   25.00

Width:   6.00

SKU:   47924 4.R6.2.2
