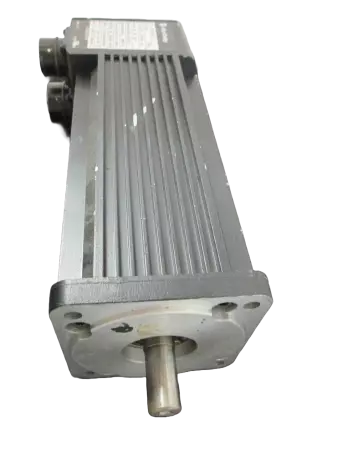

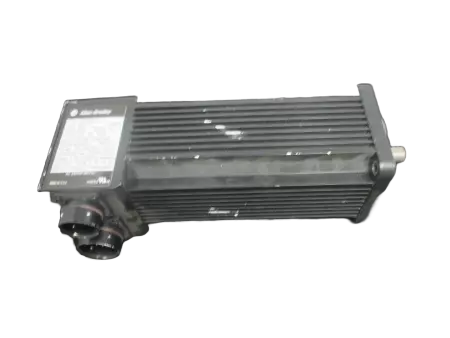

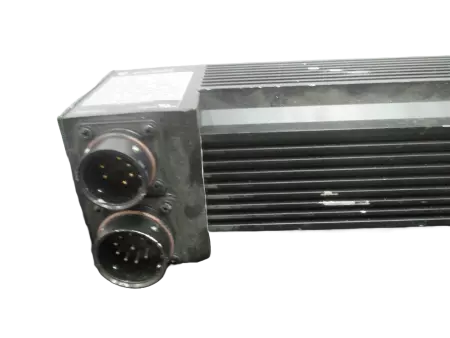

Allen-Bradley 1326AS-B330H-21 SER.A AC Servo Motor, 0.9kW - IN GERMANY

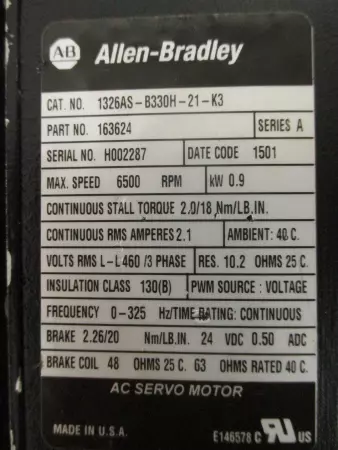

Allen-Bradley 1326AS-B330H-21-K3 is a 3-phase AC servo motor designed for precision motion control applications. It features a high-speed rating, integrated holding brake, and operates with a continuous power output of 0.9 kW. CAT. NO: 1326AS-B330H-21-K3 PART NO: 163624 SERIES: A POWER: 0.9 kW MAX SPEED: 6500 RPM CONTINUOUS STALL TORQUE: 2.0 Nm / 18 lb-in CONTINUOUS RMS CURRENT: 2.1 A VOLTAGE: 460 V RMS L-L, 3-phase RESISTANCE: 10.2 ohms @ 25°C FREQUENCY RANGE: 0–325 Hz INSULATION CLASS: 130(B) AMBIENT TEMP: 40°C PWM SOURCE: Voltage TIME RATING: Continuous BRAKE TORQUE: 2.26 Nm / 20 lb-in BRAKE VOLTAGE: 24 VDC BRAKE CURRENT: 0.50 A BRAKE COIL RESISTANCE: 48 ohms @ 25°C OHMS RATED: 40°C ORIGIN: Made in U.S.A.

Condition: New

Weight:   20.00

Depth:   5.00

Length:   5.00

Width:   12.00

SKU:   48365 1.Blickle
