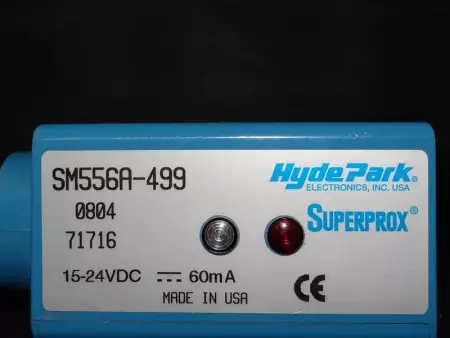

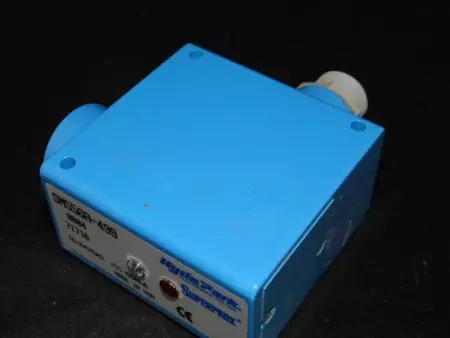

Hyde Park SM556A-499 Superprox® Ultrasonic Analog Sensor

PROXIMITY SWITCH ANALOG SENSOR SUPERPROX ULTRASONIC 15-24 VDC OPERATING VOLTAGE 60 MA CURRENT ​The Hyde Park SM556A-499 Superprox® Ultrasonic Analog Sensor is a compact, non-contact sensor designed for precise distance and level measurements in industrial applications.​ ? Technical Specifications Model: SM556A-499 Sensor Type: Ultrasonic analog sensor Sensing Range: 0.39 to 6.56 ft (0.12 to 2 m) Nominal Sensing Distance: 6.56 ft (2 m) Output Options: Selectable 4–20 mA or 0–10 VDC Supply Voltage: 15–24 VDC Current Consumption: 60 mA Transmission Frequency: 200 kHz Response Time: Adjustable from 70 ms to 2.5 s via potentiometer Output Configuration: Direct or inverse proportional (selectable) Echo Loss Behavior: Configurable to hold last value or default to min/max Housing Material: Plastic Protection Rating: IP66 Electrical Connection: 1 connector Operating Temperature: –10°C to +60°C Mounting: Compact design suitable for tight spaces Compliance: CE certified

Condition: Used

Weight:   2.00

Depth:   5.00

Length:   5.00

Width:   5.00

SKU:   48388 4.S4.0.3
