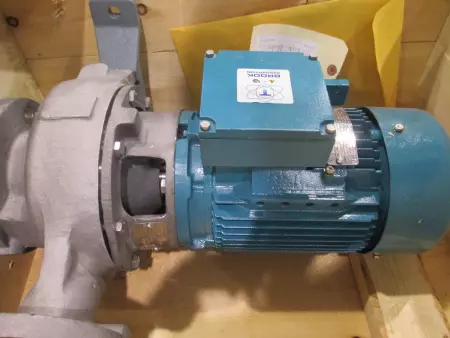

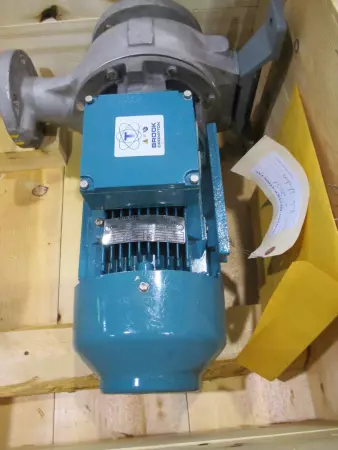

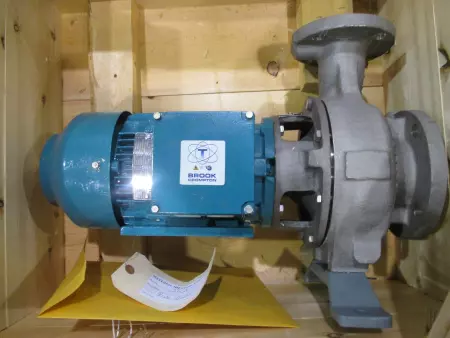

Flowserve 3X2X6T Pump W/2M00057 Brook Crompton 1HP AC Motor

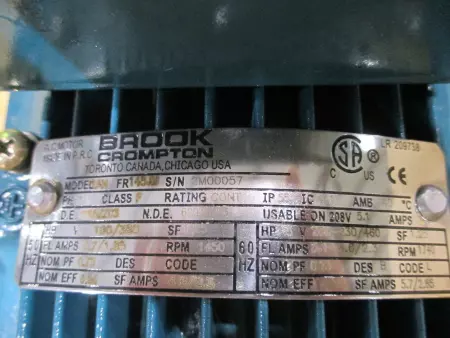

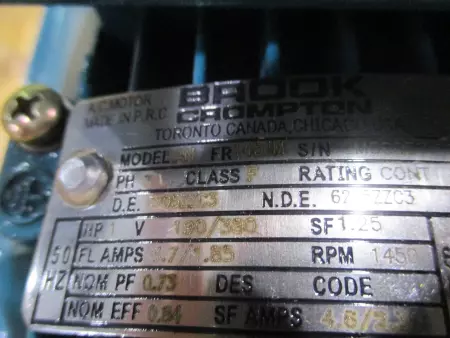

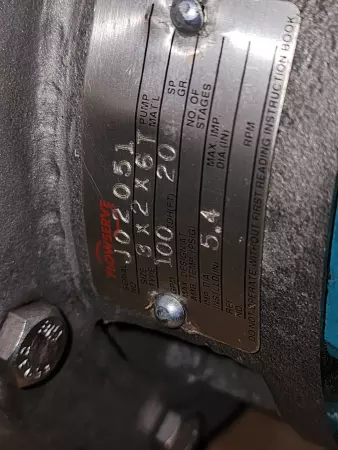

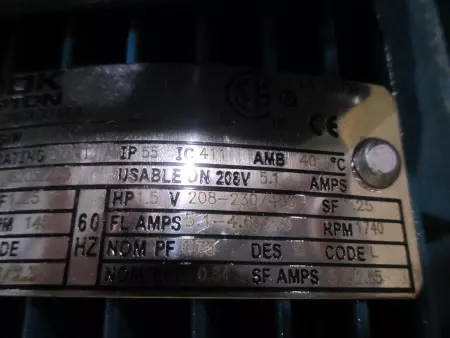

Pump: Flowserve 3x2x6T Inlet size: 3" Discharge size: 2" Impeller diameter: 6" Pump type: End suction centrifugal (likely ANSI B73.1 compliant) Casing: Typically cast iron or stainless steel depending on application Seal: Can support mechanical seals or packing Mounting: Frame-mounted, close-coupled optional Typical flow rate: ~50–150 GPM (varies with impeller trim) Typical head: ~40–150 feet (depending on speed/impeller diameter) Max working pressure: ~175 psi Max temperature: Up to 250°F with proper materials Motor: Brook Crompton 2M00057 Power: 1 HP Voltage: Usually 208-230/460V (dual-rated), 3-phase Amperage: Approx. 5.1-4.6 A @ 230V / 2.3 A @ 460V Speed: 1750 RPM (4-pole, 60 Hz) Frame: Commonly 145JM Insulation class: F Service factor: Typically 1.15 Enclosure: TEFC (Totally Enclosed Fan Cooled) Duty: Continuous (S1)

Condition: Used

Weight:   151.00

Depth:   24.00

Length:   20.00

Width:   28.00

SKU:   48751 4.R7.4.2
