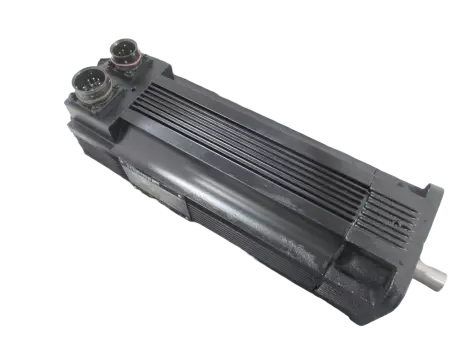

Reliance Electric 1326AB-B430E-21 Electro-Craft® Servo Motor, 1.5kW -IN GERMANY

The Reliance Electric 1326AB-B430E-21 is a high-performance Electro-Craft® AC servo motor designed for industrial motion control applications requiring precision, reliability, and compact power delivery. It delivers 1.5kW of continuous power, suitable for demanding automation environments. Series C Power: 1.5 kW Voltage: 230 VAC nominal Current: 3.9 A (continuous) Speed: 3200 RPM (base speed) Peak Speed: 4500 RPM Torque (Continuous): 6.6 Nm/58 Lb.In. Peak Torque: 14.3 Nm Feedback: Resolver Frame Size: 1326AB (approx. 100 mm square frame) Mounting: Flange Shaft: Keyed, standard output shaft Insulation Class: F Service Factor: 1.0 Enclosure: TENV (Totally Enclosed Non-Ventilated) Brake: No brake Thermal Protection: Integrated thermistor

Condition: New

Weight:   40.00

Depth:   12.00

Length:   18.00

Width:   24.00

SKU:   48857 1.Blickle
