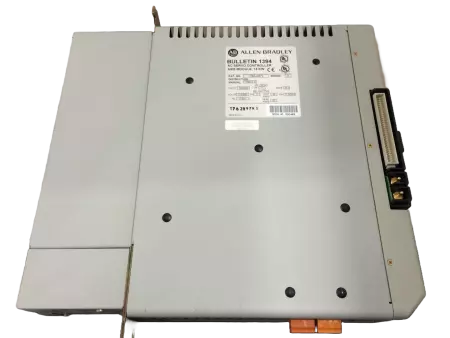

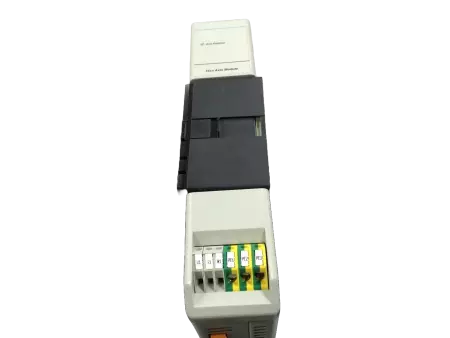

Allen Bradley 1394-AM75 SER.A Servo Axis Drive Module 15kW - IN GERMANY

The Allen-Bradley 1394-AM75 is a high-power Bulletin 1394 servo axis drive module designed for precision motor control in demanding motion applications. With a 15 kW capacity, it supports robust DC and AC interfacing for high-speed industrial automation. Module Type: AC Servo Controller Axis Module Catalog Number: 1394-AM75 Series: A Power Rating: 15 kW (nominal), 17.8 kW continuous, 23.8 kW peak Instruction Manual: 1394-5.0 DC Input Voltage: 530–680 VDC DC Input Phase: 1-phase DC Input Current: 37.3 A AC Output Voltage: 310–390 VAC AC Output Phase: 3-phase AC Output Frequency: 0–240 Hz AC Output Continuous Current: 35 A AC Output Peak Current: 50 A Mounting: Panel-mounted Country of Manufacture: USA

Condition: New

Weight:   40.00

Depth:   16.00

Length:   18.00

Width:   5.00

SKU:   48979 1.Blickle
