Alpha SP 140S-MC1-3-1K1-2K-PSI Gear Box, Ratio 3:1

The Alpha SP 140S-MC1-3-1K1-2K-PSI is a high-performance planetary gearbox designed for industrial applications that demand precision, high torque transmission, and low backlash. With a 3:1 reduction ratio, this gearbox is ideal for servo applications requiring accurate motion control and robust operation. Technical Specifications: Gearbox Type: Planetary Model: SP+ 140S-MC1 Reduction Ratio: 3:1 Number of Stages: 1 Nominal Output Torque: 127 Nm Maximum Acceleration Torque: 310 Nm Backlash: Standard: ≤ 4 arcmin Reduced: ≤ 2 arcmin Output Shaft Diameter: 40 mm Hollow Shaft Diameter: 32 mm Flange Diameter: 190 mm Operating Temperature Range: -15°C to 40°C Lubrication: Lifetime lubrication (maintenance-free) Protection Class: IP65 (dust-tight, protected against water jets)

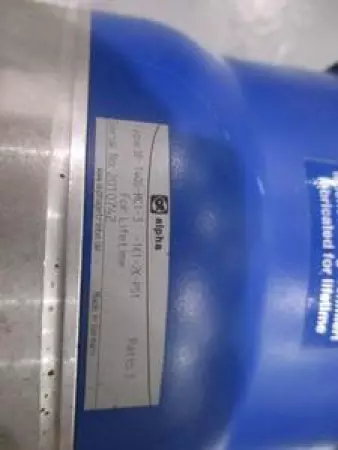

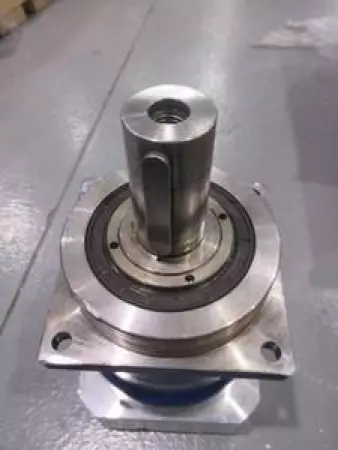

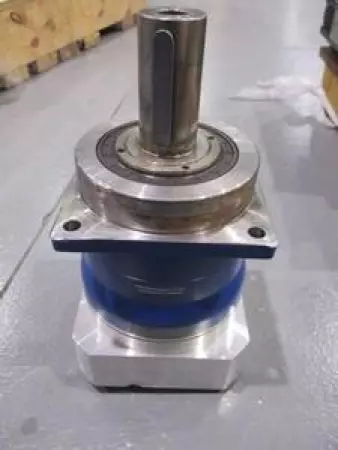

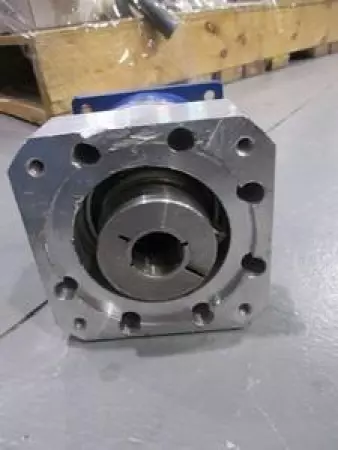

See pictures for additional details.

Condition: Used

Weight:   40.00

Depth:   15.00

Length:   15.00

Width:   20.00

SKU:   48982 4.R1.5.2
