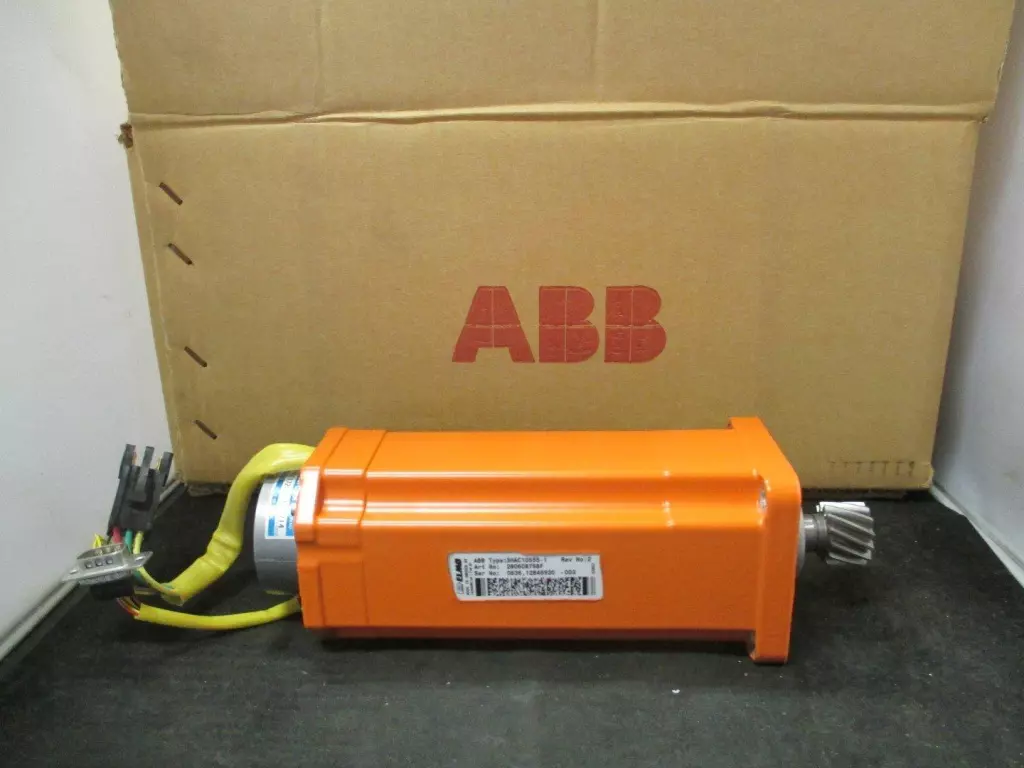

ABB 3HAC10555-1 Elmo Servo Motor 415W W/Tamagawa Encoder

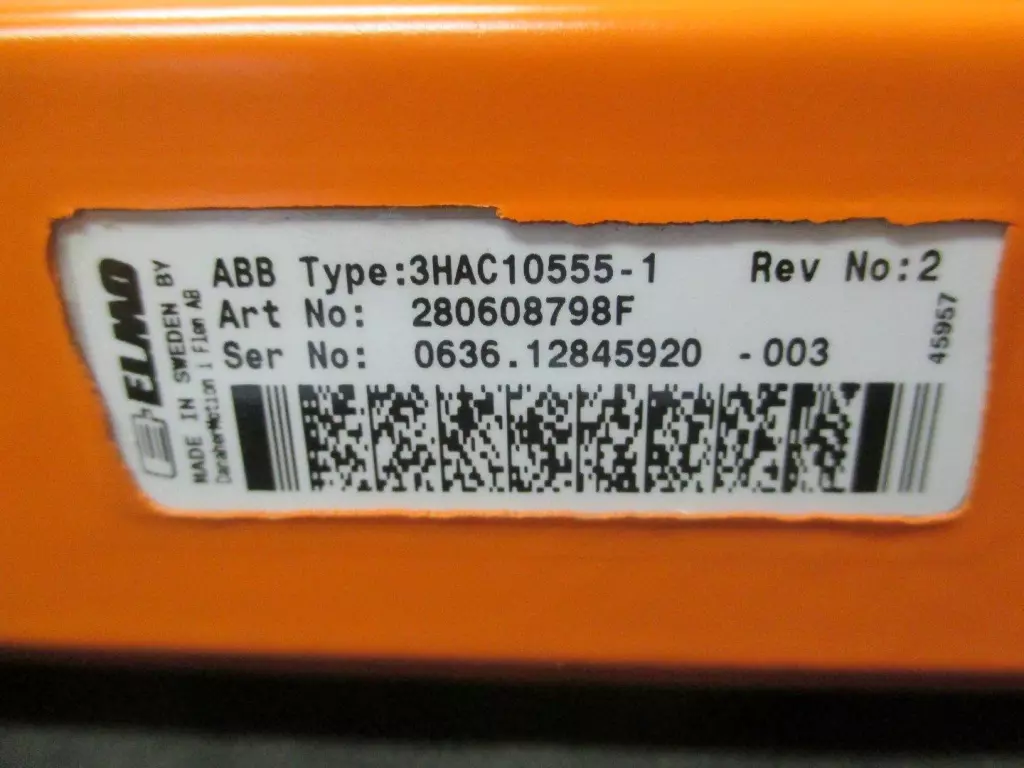

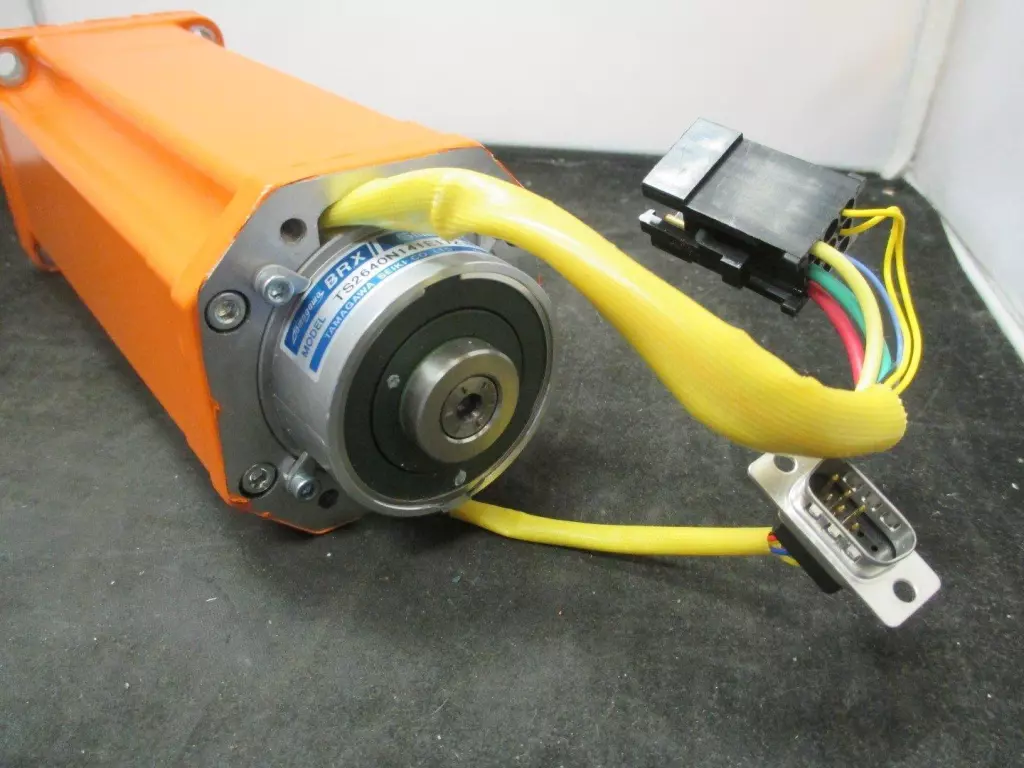

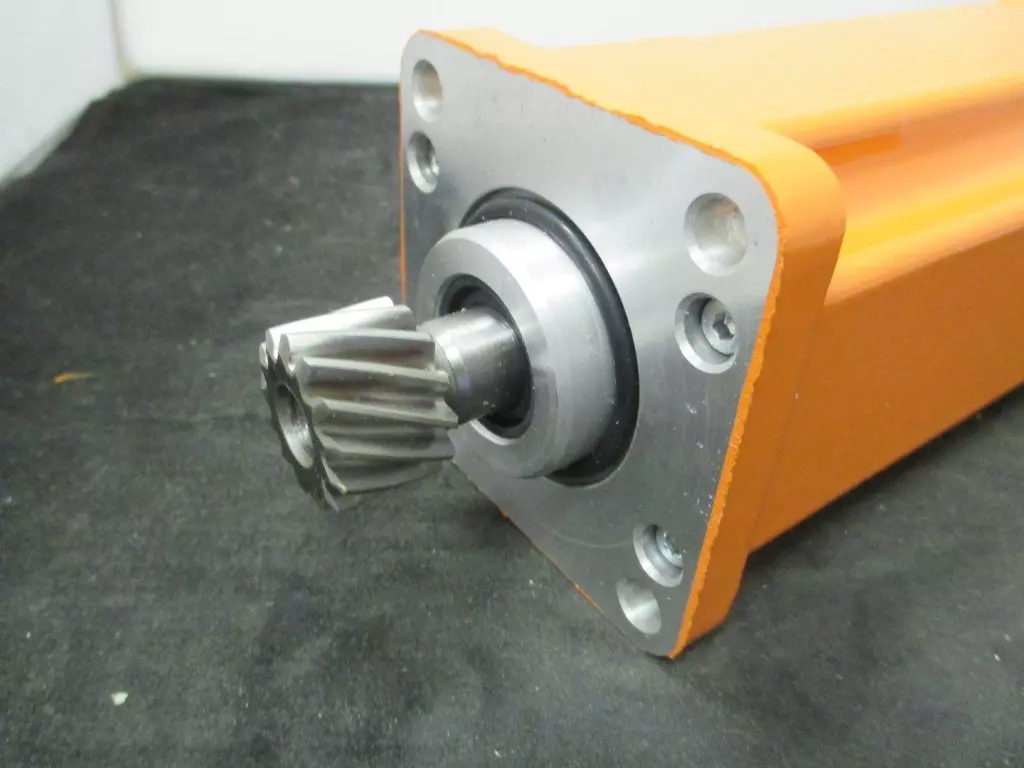

The ABB 3HAC10555-1 is a servo motor designed for 4- and 6-axis robotic applications, commonly utilized in ABB's IRB2400 series. It features a flange mount and dual wire connections. This motor is equipped with a Tamagawa TS2640N141E172 resolver, providing precise feedback for accurate motion control. ABB 3HAC10555-1 Servo Motor Specifications: Model Number: 3HAC10555-1 ABB Designation: PS60/4-71 Rated Power: 415 W Rated Torque: 1.2 Nm Mounting: Flange mount Application: Suitable for 4- and 6-axis robotic systems Weight: Approximately 3.4 kg Country of Origin: Sweden Tamagawa TS2640N141E172 Resolver Specifications: Model: TS2640N141E172 Type: Brushless resolver (Smartsyn) Input Voltage: AC 5 V RMS Input Frequency: 4 kHz Transformation Ratio (K): 0.5 ± 5% Maximum Speed: Up to 10,000 RPM Operating Temperature Range: -55°C to +155°C Output: 6-wire configuration with shaft Weight: Approximately 0.25 kg This combination of ABB servo motor and Tamagawa resolver ensures high precision and reliability in robotic applications, providing accurate position feedback and efficient performance.

Condition: New

Weight:   13.00

Depth:   16.00

Length:   16.00

Width:   8.00

SKU:   48983 4.R6.3.2
