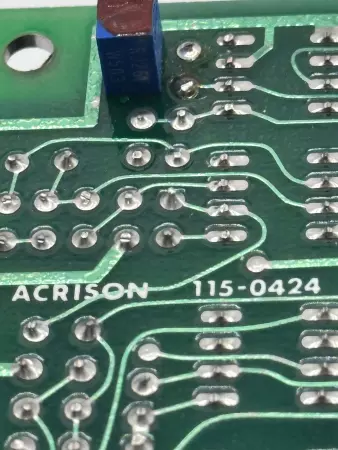

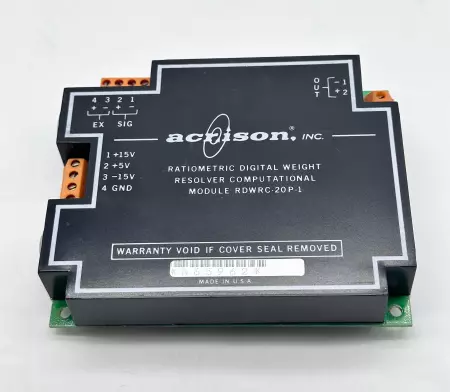

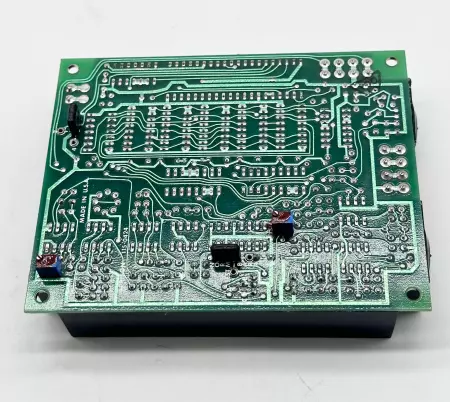

Acrison 115-0424 Weight Resolver Module

The Acrison 115-0424 is a Weight Resolver Module used in Acrison’s dry solids metering and weighing systems. This module plays a key role in interpreting load cell signals to deliver accurate weight data to the system’s controller, particularly in gravimetric feeders and weigh feeders for continuous process control. Technical Specifications Manufacturer: Acrison, Inc. Model Number: 115-0424 Module Type: Weight Resolver Module Function: Converts analog load cell input to a conditioned, high-resolution digital weight signal Typical System Use: Acrison Series 403, 404, 405, and similar weigh feeders Input Signal: Load cell mV/V signal (typically from 1 to 4 load cells) Excitation Voltage: ~5–10 VDC supplied to load cells Output Signal: Conditioned weight signal (analog or digital output depending on system integration) Resolution: High-resolution weight detection suitable for batching and continuous metering Accuracy: Matched to feeder’s performance spec (commonly 0.25%–1% of full scale) Mounting: PCB or module mounted inside control panel or housing Power Supply: 24 VDC (typical) Interface: Connects directly to Acrison controller (e.g., SBC-2000 or DISK II-based systems) Environmental: Industrial-grade temperature and humidity tolerance Applications: – Gravimetric loss-in-weight feeding – Continuous blending and proportioning – Precision batching and weighing systems

Condition: Used

Weight:   8.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   49015 4.S1.12.4C
