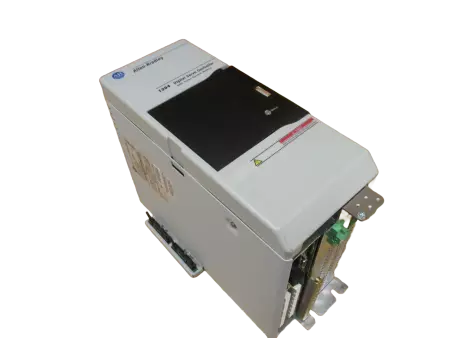

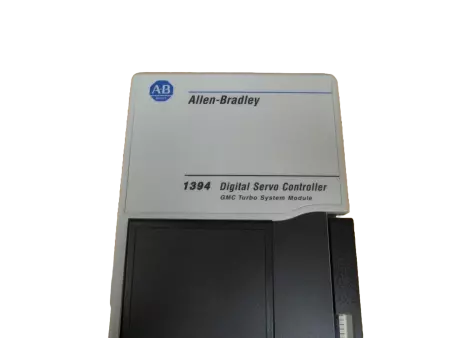

Allen-Bradley 1394C-SJT10-T-RL SER.C Digital Servo Controller, 10kW -IN GERMANY

The Allen-Bradley 1394C-SJT10-T-RL is a Bulletin 1394 digital servo controller designed for high-performance motion control systems. This IMC S Class Turbo module integrates axis link and RIO connectivity, providing up to 10kW of output power, ideal for demanding industrial applications. Controller Type: Digital Servo Controller Catalog Number: 1394C-SJT10-T-RL Series: C System Power Rating: 10 kW (continuous), 8 kW (nominal) Firmware Version: V3.9A AC Input Voltage: 380/460 V AC Input Phase: 3-phase AC Input Frequency: 50/60 Hz AC Input Current: 13 A Control Power Input: 24 VRMS, 1-phase, DC/50/60 Hz Control Power Current: 15 A max DC Bus Output Voltage: 530–680 VDC DC Output Phase: 1-phase DC Output Current: 15 A Maximum Short Circuit Current Rating: 100,000 A Instruction Manual: 1394-5.0 Mounting: Panel mount Connectivity: RIO & Axis Link Country of Manufacture: USA

Condition: New

Weight:   40.00

Depth:   20.00

Length:   14.00

Width:   10.00

SKU:   49039 1.Blickle
