In stock 5 available

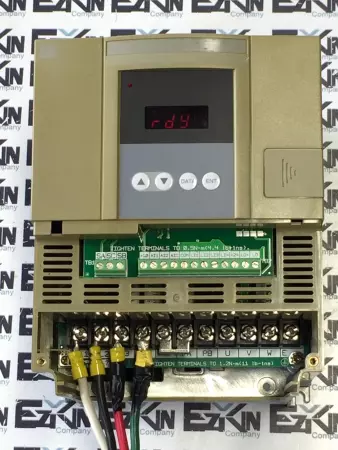

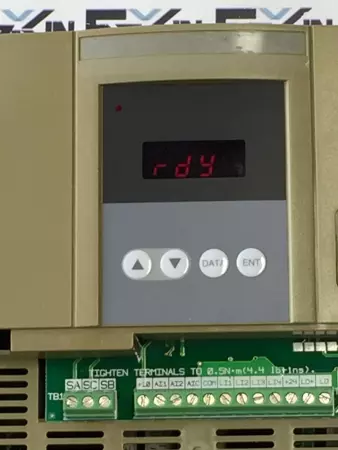

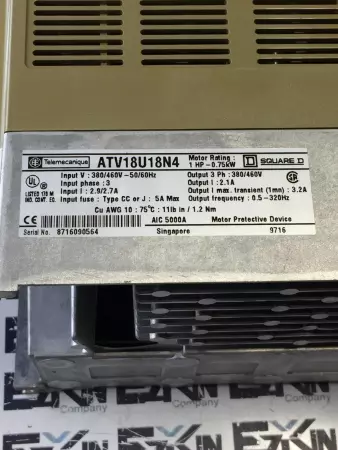

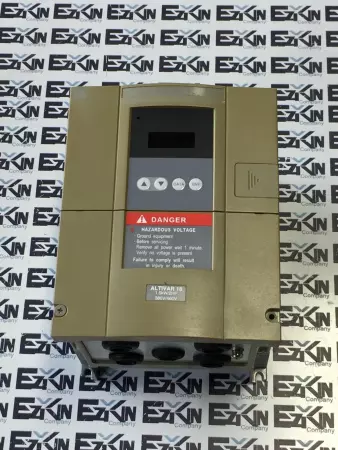

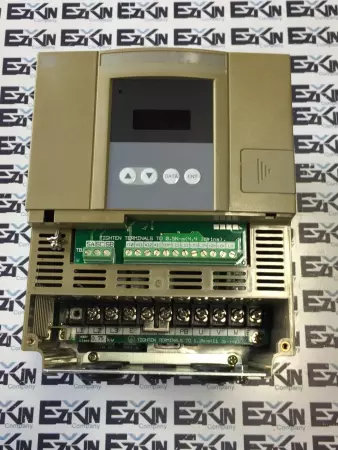

Compact AC variable speed drive for controlling three-phase asynchronous motors, designed for light-duty industrial applications up to 1 HP (0.75 kW). Model: ATV18U18N4 Motor Rating: 1 HP / 0.75 kW Input Voltage: 380/460 V AC, 50/60 Hz Input Phases: 3 Input Current: 2.9 A @ 380 V / 2.7 A @ 460 V Input Fuse: Type CC or J, 5 A max Output Voltage: 3-phase, 380/460 V Output Current: 2.1 A nominal Output Max Transient Current (1 min): 3.2 A Output Frequency Range: 0.5 to 320 Hz Wire Size: Cu AWG 10 Temperature Rating: 75°C Torque Rating: 1.2 Nm Weight: 11 lb (5 kg) Short-Circuit Rating: AIC 5000 A Country of Manufacture: Singapore Manufacturer: Telemecanique / Square D (Schneider Electric) Series: Altivar 18 Serial Number: 8716090564
Condition: Used
Weight: 3.02
Depth: 12.00
Length: 12.00
Width: 12.00
SKU: 4909 4.S7.11.1
