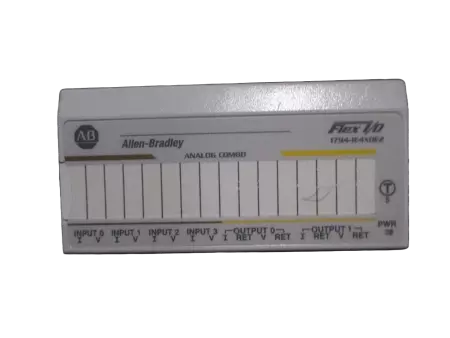

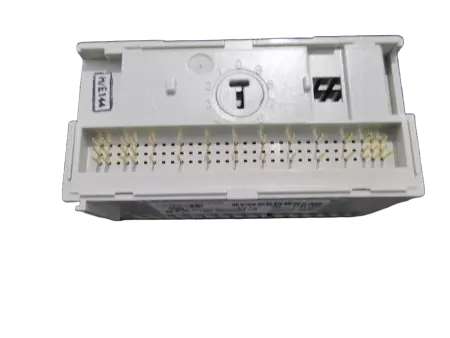

Allen Bradley 1794-IE4XOE2 SER.B Flex I/O Module - IN GERMANY

The Allen Bradley 1794-IE4XOE2 Series B is a Flex I/O analog combination module that provides 4 analog inputs and 2 analog outputs, designed for use in distributed control systems requiring precise signal conversion. It supports 16-bit resolution and is compatible with a wide range of analog sensors and actuators. Voltage Range (Inputs): 0…20 mA or 4…20 mA (selectable) Voltage Range (Outputs): 0…20 mA or 4…20 mA (selectable) Resolution: 16 bits for both inputs and outputs Input Channels: 4 single-ended current inputs Output Channels: 2 current outputs Input Impedance: 250 Ω typical Accuracy (Inputs): ±0.1% of full scale at 25°C Accuracy (Outputs): ±0.1% of full scale at 25°C Conversion Rate: 2.5 ms per channel typical Isolation: 750V DC (channel-to-backplane and channel-to-channel) Power Requirements: 24V DC, 95 mA max Operating Temperature: 0°C to 55°C (32°F to 131°F) Mounting: DIN rail via 1794-TB3, 1794-TB3S, or 1794-TBNF terminal bases Dimensions (HxWxD): 94 x 94 x 69 mm (3.7 x 3.7 x 2.7 in) Series: B Product Type: Analog I/O combination module

Condition: New

Weight:   12.00

Depth:   5.00

Length:   5.00

Width:   5.00

SKU:   49167 1.Blickle
