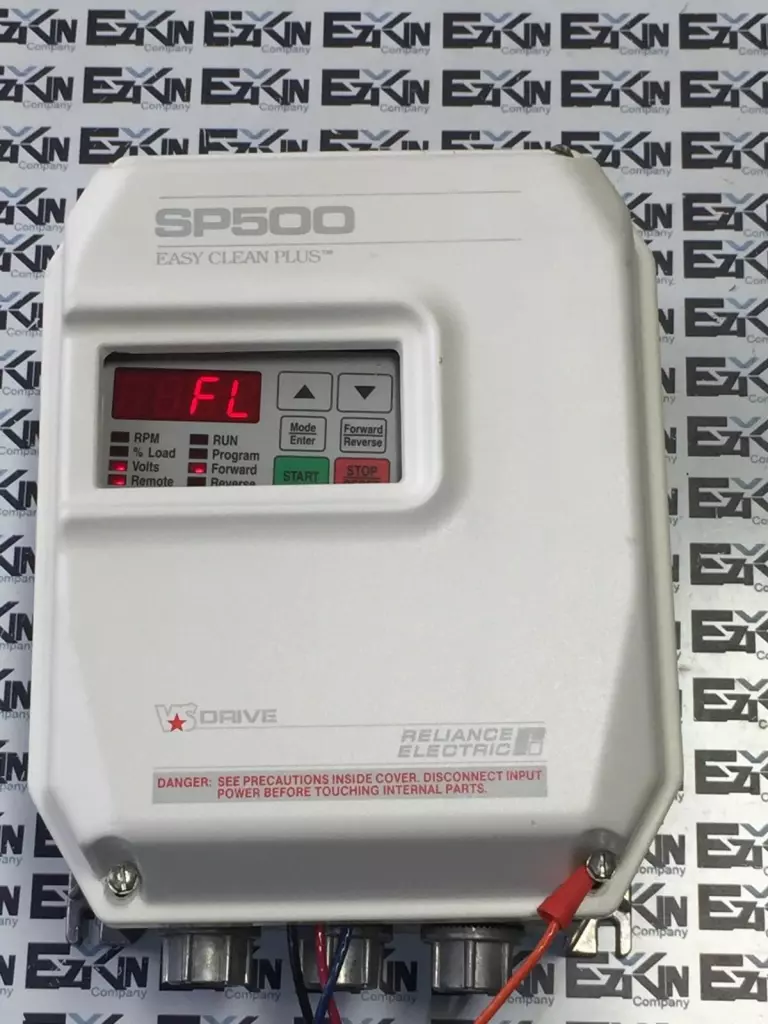

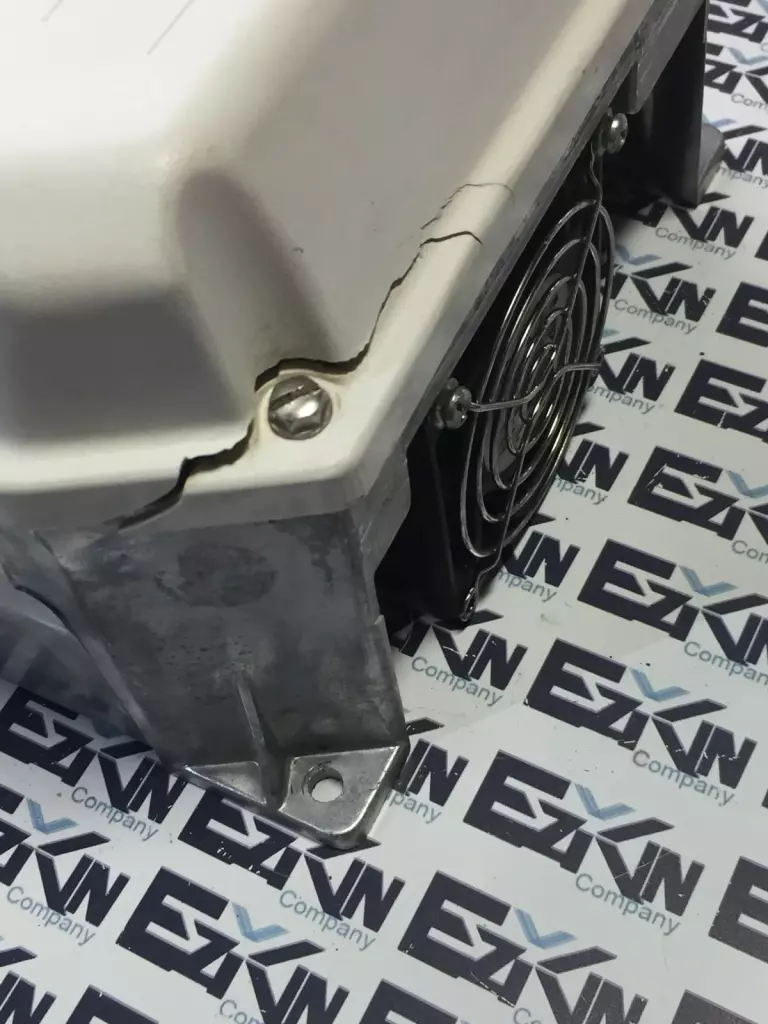

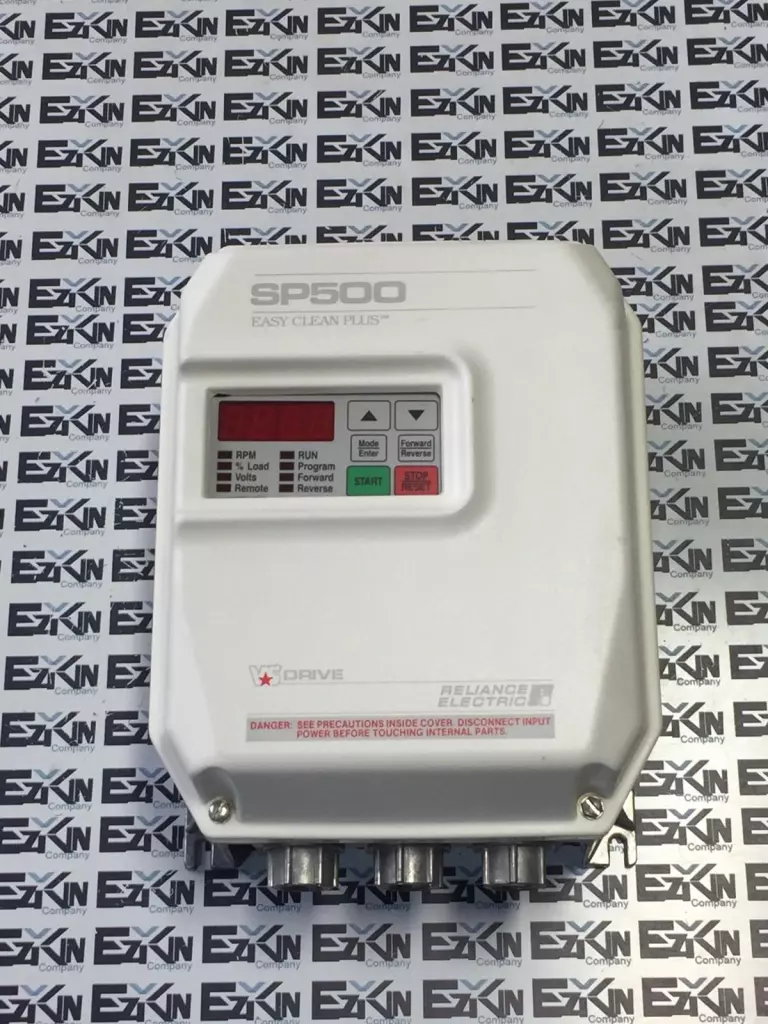

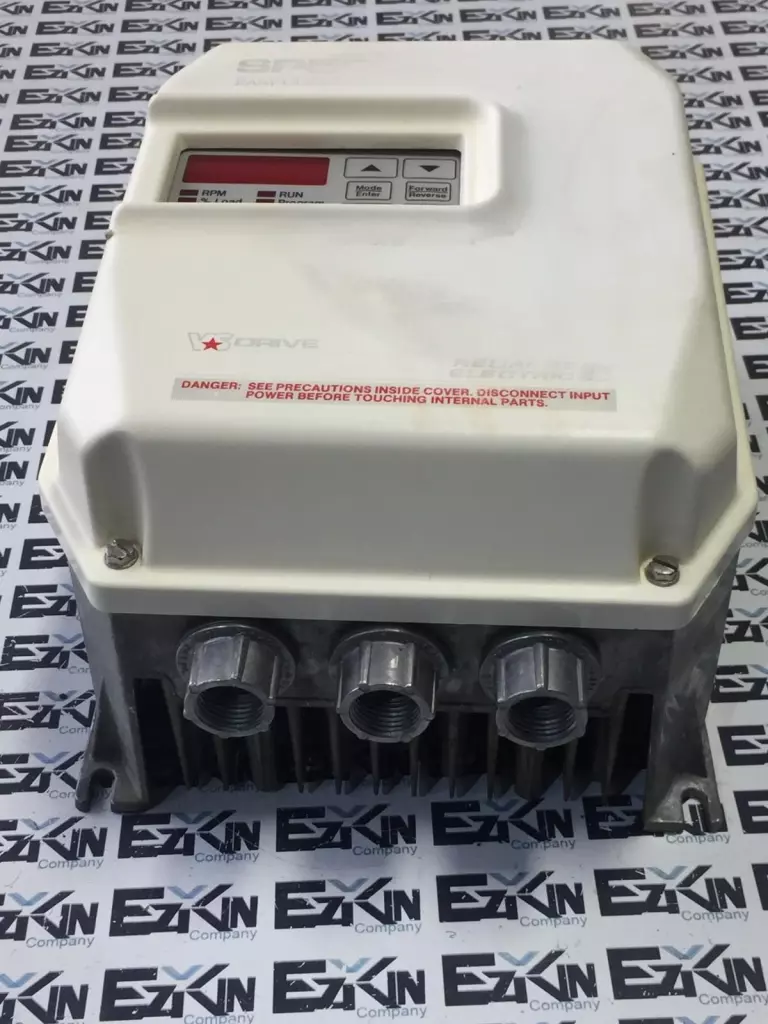

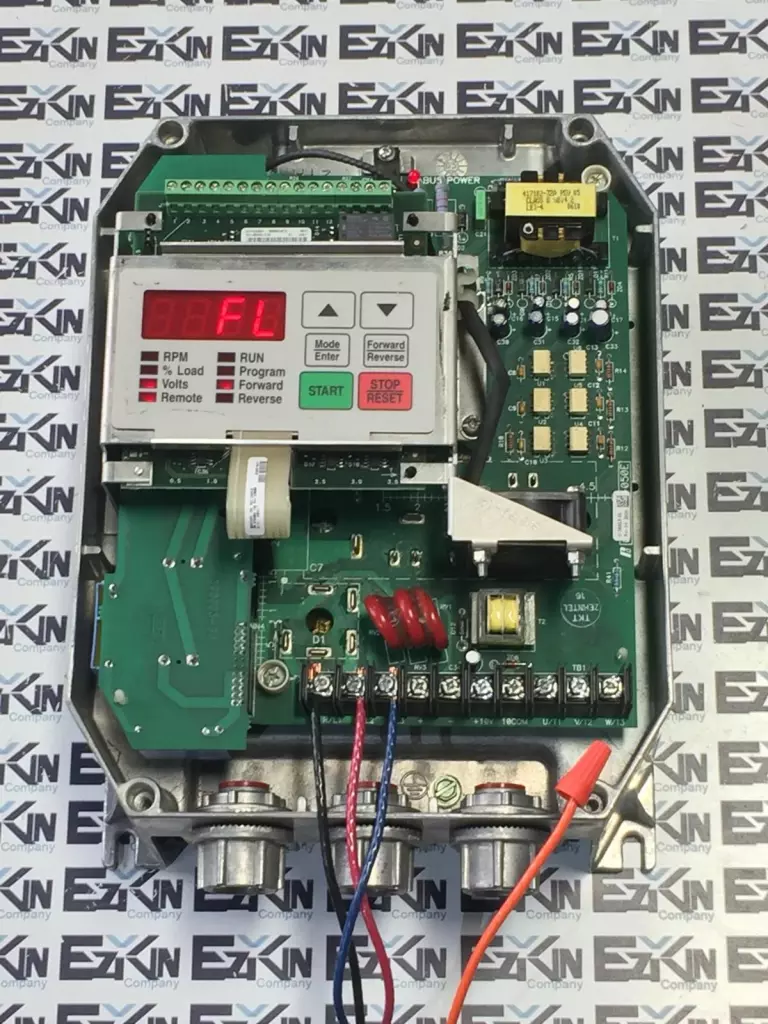

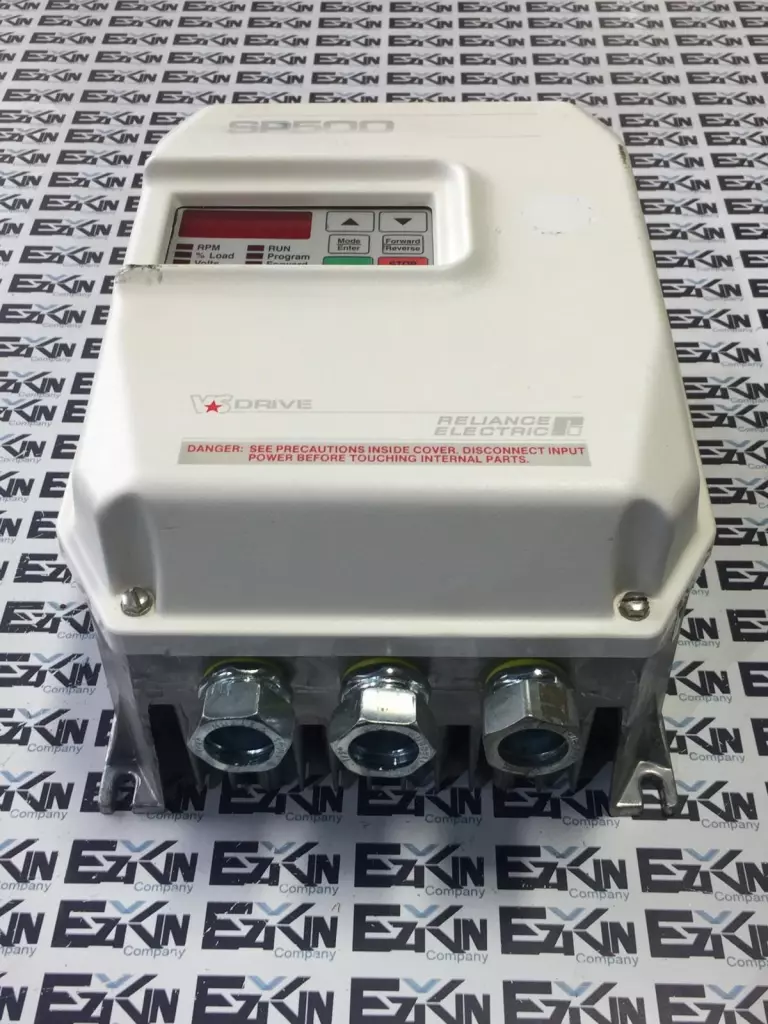

Reliance Electric 1SU44001 SP500 Easy Clean Plus™ VS Drive (Corner Broken)

General Purpose DC Drives

$1,794
$213.00
Save 88%

In stock 1 available

Quantity
Total Price: $213.00

Share this item:

Questions?

Powered by KiipList Logo

Compact AC drive for variable speed control of three-phase motors, designed for hygienic and general-purpose industrial applications. Model: SP500 Catalog No.: 1SU44001 Manufacturer: Reliance Electric Drive Series: Easy Clean Plus™ Motor Power Rating: 1 HP Input Voltage: 380–460 VAC, 3-phase, 50/60 Hz Input Current: 2.5 A Output Voltage: 380–460 VAC Output Current: 2.1 A Output Frequency Range: 0–240 Hz Enclosure Type: Indoor use only Instruction Manual: I/M D2-3356-5 Default Parameters: F-00 Control Source Select: OFF (0), Range: 0–3 F-01 Acceleration Rate: 5.0 s, Range: 0.5–90.0 s F-02 Deceleration Rate: 5.0 s, Range: 0.5–90.0 s F-03 Minimum Speed: 6.0 Hz, Range: 0.3–240.0 Hz F-04 Maximum Speed: 60.0 Hz, Range: 30.0–240.0 Hz F-05 Current Limit: 150%, Range: 100%–150% Fault Codes: HU: High DC bus voltage condition LU: Low DC bus voltage condition OL: Electronic thermal overload OH: Controller high temperature OC: Overcurrent, short circuit, or ground fault FL: External function loss asserted Order No.: M.000018183 Certifications: UL, CE, IEC PUB.146 Application: Variable-speed control for 3-phase motors in washdown or clean-area environments

Brand:
Reliance ElectricMPN

Condition: Used

Weight:   11.04

Depth:   10.00

Length:   20.00

Width:   10.00

SKU:   4944 4.S1.4.5
