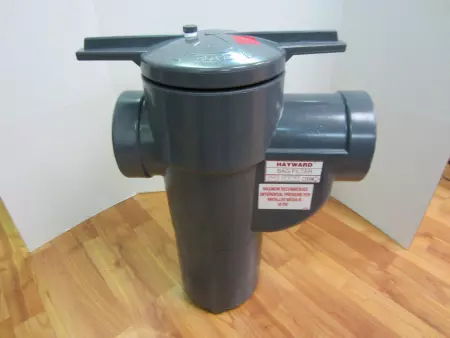

Hayward FLT1152 Bag Filter Housing, PVC 1-1/2" NPT

The Hayward FLT1152 is a bag filter housing constructed from PVC with a 1-1/2" NPT connection. Hayward's FLV Series bag filters, made from PVC and CPVC, are known for their robust construction and high chemical resistance, making them suitable for applications involving bleach and sodium hypochlorite solutions. These filters accommodate standard 4" X 14" length bags, with pipe sizes ranging from 1-1/4" to 4", and are available in Simplex through Quadplex assemblies. ​ Key Features of the FLV Series: Material: Platinum Glass Filled Polypropylene (GFPP)​ Construction: One-piece injection molded design​ Cover: Ergonomic, hand-removable with a liquid displacing dome​ Vent Valve: Included on the cover for easy bleeding​ Flow Rate: Rated up to 100 GPM for 1-1/4" to 2" sizes and up to 150 GPM for 2-1/2" to 4" sizes​ Connections: True union socket, threaded, or flanged end connections​ Design Configurations: In-line or loop flow​ Basket: Hinged design for easy bag removal​ Drain Port: Located at the bottom​ Mounting Base: Integral for stable installation 20 PSI

Condition: New

Weight:   50.00

Depth:   10.00

Length:   22.00

Width:   22.00

SKU:   49459 4.R7.8.5
