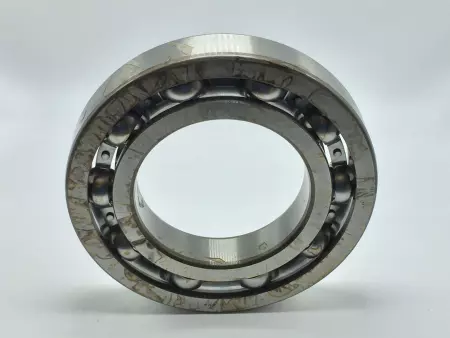

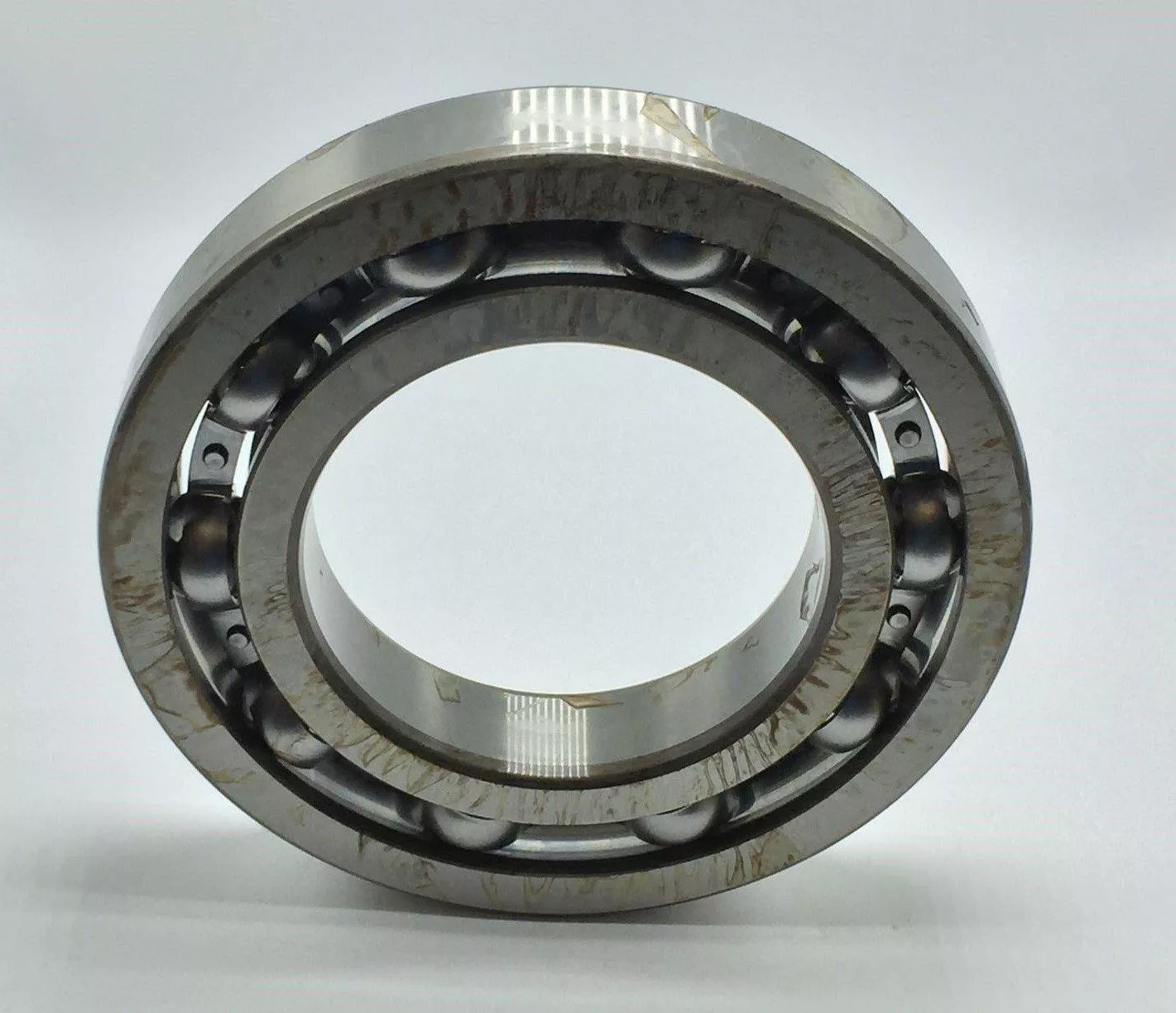

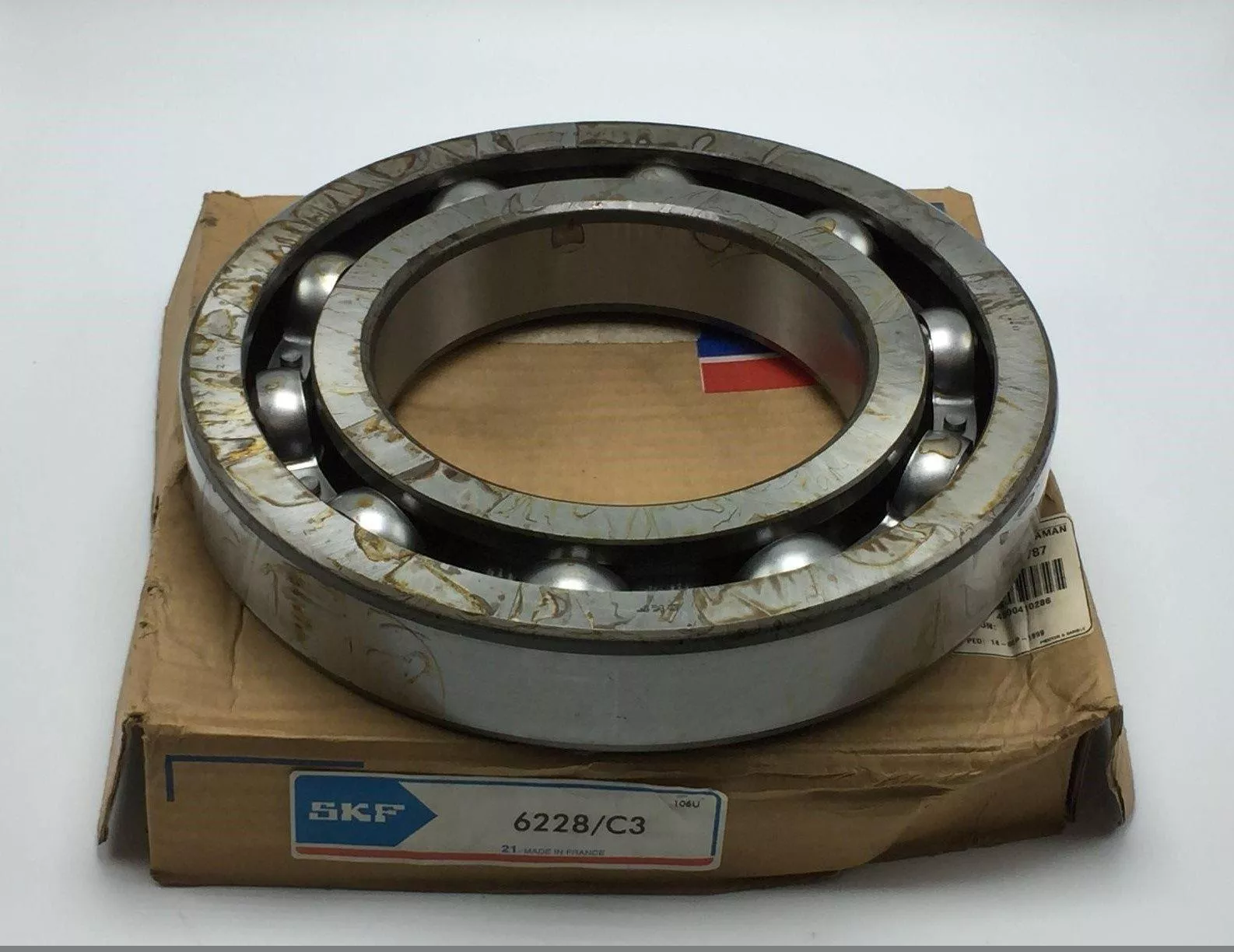

SKF 6228/C3 Deep Groove Ball Bearing, 140mm Bore

The SKF 6228/C3 is a single-row deep groove ball bearing designed for high-speed operation and minimal friction, ideal for heavy-duty applications. The C3 clearance allows for thermal expansion under high-speed or high-temperature conditions. Product Type: Deep Groove Ball Bearing Manufacturer: SKF Part Number: 6228/C3 Bearing Type: Single-row deep groove Bore Diameter: 140 mm Outer Diameter: 250 mm Width: 42 mm Clearance: C3 (greater than normal internal clearance) Cage Material: Steel Dynamic Load Rating (Cr): 208 kN Static Load Rating (Cor): 200 kN Limiting Speed (Grease): 3,000 RPM Limiting Speed (Oil): 3,400 RPM Seal Type: Open (no seals or shields) Application: Electric motors, pumps, gearboxes, heavy machinery Material: High-grade chromium steel Mounting: Shaft press-fit or housing seat fit Lubrication: Requires external lubrication (grease or oil)

Condition: New

Weight:   21.00

Depth:   6.00

Length:   12.00

Width:   12.00

SKU:   49607 4.S5.13.1
