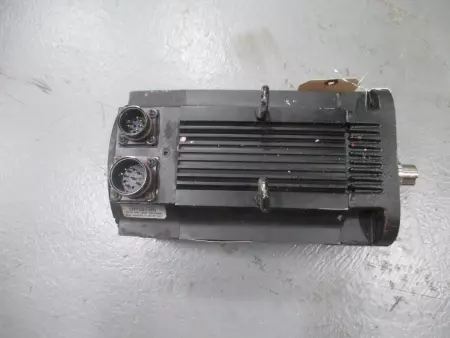

REMOVED FROM WORKING DRIVE The Allen-Bradley 1326AB-B530E-21-SL is a high-performance AC servo motor from the 1326AB Torque Plus series, designed for demanding motion control applications. Electrical Specifications: Rated Voltage: 460/380 VAC Rated Power Output: 4.2 kW Rated Torque (Continuous Stall): 18.0 Nm Peak Torque (Stall): 54.2 Nm Rated Speed: 3000 RPM Rated Current: 9.5 A Maximum Operating Speed: 3200 RPM Torque Constant (KT): 1.6 Nm/A (peak value of per phase sine wave) Voltage Constant (KE): 193.9 Vpeak/kRPM Winding Resistance (Phase to Phase at 25°C): 1.6 Ω (±15%) Winding Inductance (Phase to Phase): 16.4 mH Mechanical Specifications: Frame Diameter: 149 mm Rotor Moment of Inertia: 0.009 kg·m² Motor Shipping Weight: Approximately 34.5 kg Features: Feedback System: Resolver-based feedback for precise position and speed control Mounting Configuration: IEC metric flange with keyway for secure attachment Environmental Protection: IP65 or IP67 rating, depending on configuration, providing resistance to dust and water
Condition: Used
Weight: 29.00
Depth: 12.00
Length: 24.00
Width: 18.00
SKU: 49615 4.R1.3.4
