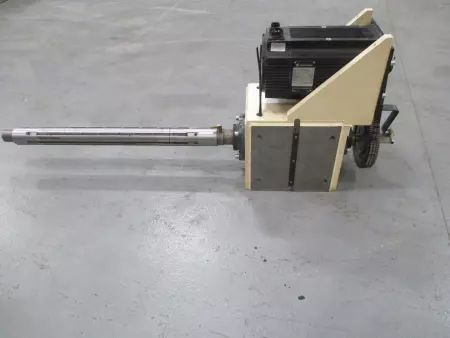

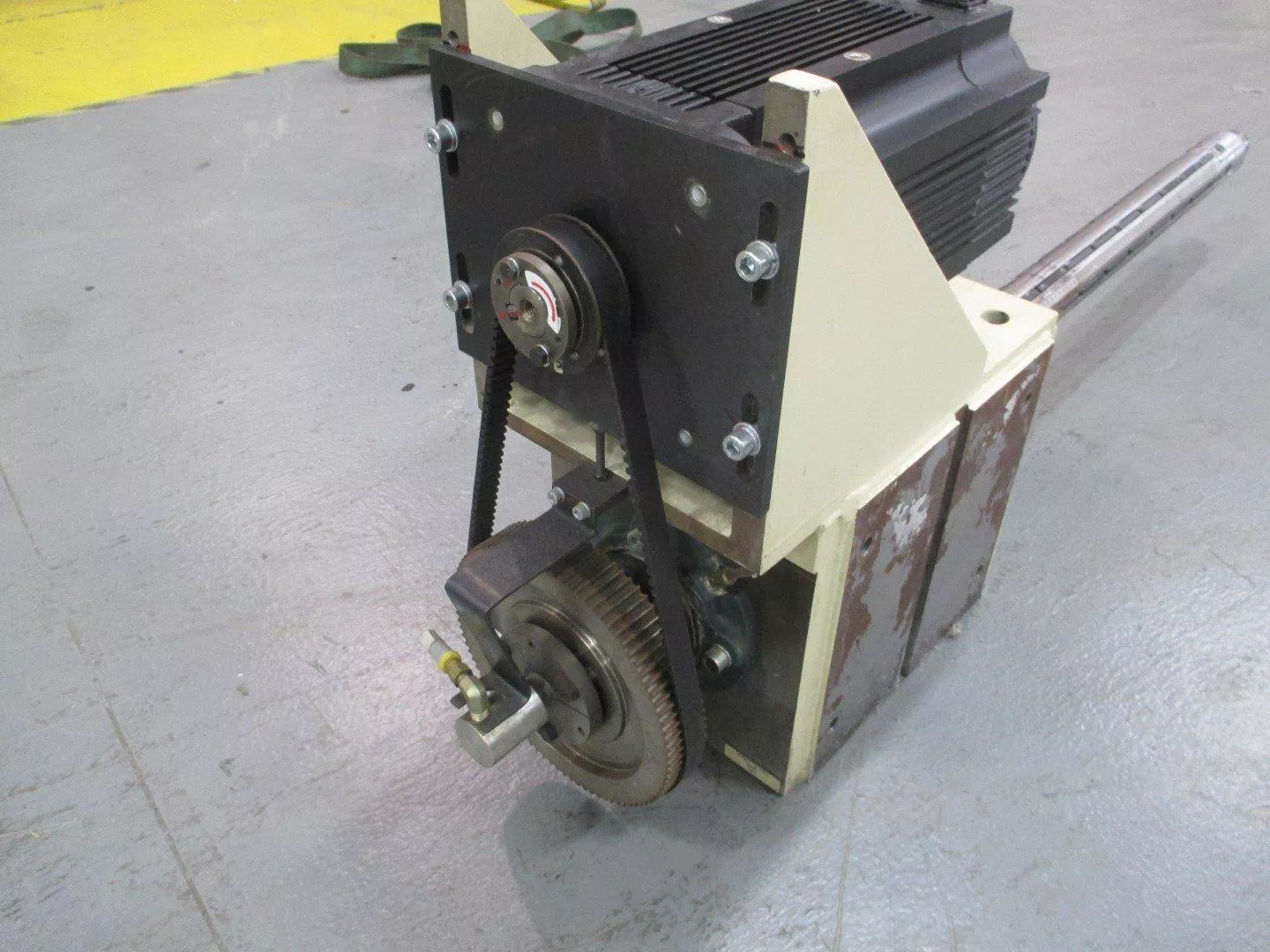

Goldenrod 840MM Unwind Shaft Assembly w/1326AB-B720E-21 Servo Motor 6.79kW

Goldenrod 840MM Unwind Shaft Assembly with Allen-Bradley 1326AB-B720E-21 Servo Motor is a high-performance industrial unwind system, designed for precision web tension control in material handling and converting processes. Manufacturer (Shaft Assembly): Goldenrod Corporation Shaft Model: 840MM Unwind Shaft Assembly Core Size Compatibility: 840 mm (approximately 33 inches) Application: Web handling, roll unwind systems, converting, printing, laminating operations Special Features: Heavy-duty construction, quick-locking expanding shaft, designed for high-torque applications Motor Manufacturer: Allen-Bradley (Rockwell Automation) Motor Model: 1326AB-B720E-21 Motor Type: AC Servo Motor Rated Power: 6.79 kW (9.1 HP) Rated Voltage: 160V AC Rated Speed: 2000 RPM Maximum Speed: 3000 RPM Rated Torque: 30.9 Nm Peak Torque: 96.9 Nm Feedback Device: Resolver feedback Enclosure Type: Sealed enclosure for industrial environments Cooling Method: Natural convection (self-cooled) Application: Precision torque and speed control for web handling, unwind and rewind operations in continuous material processing systems Combined Application: High-precision, controlled unwinding of materials such as paper, film, foil, textiles, or composites with automated tension control using a robust shaft assembly and servo-driven feedback system.

Condition: Used

Weight:   50.00

Depth:   30.00

Length:   12.00

Width:   60.00

SKU:   49629 4.R7.4.4
