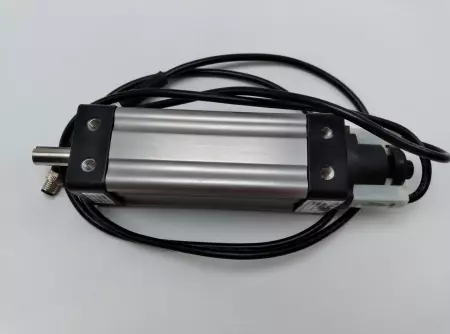

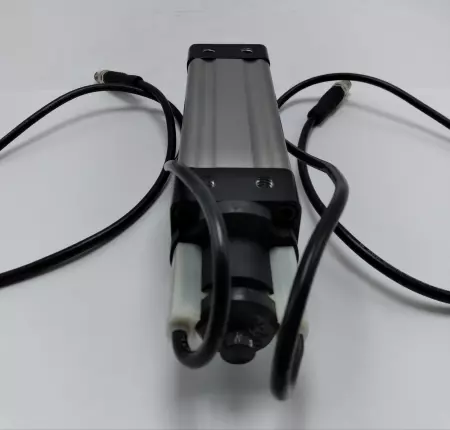

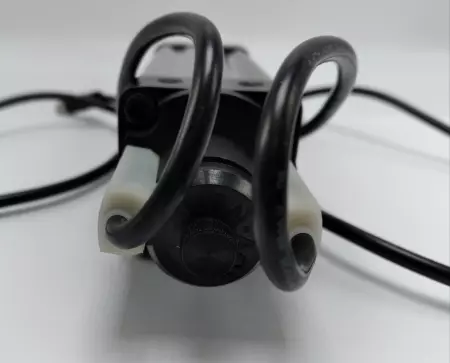

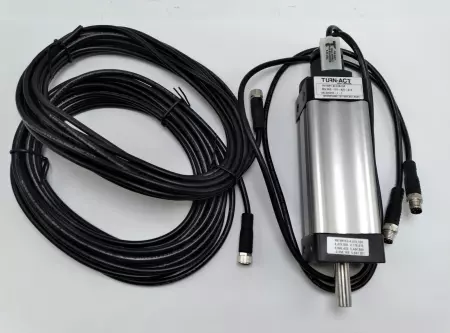

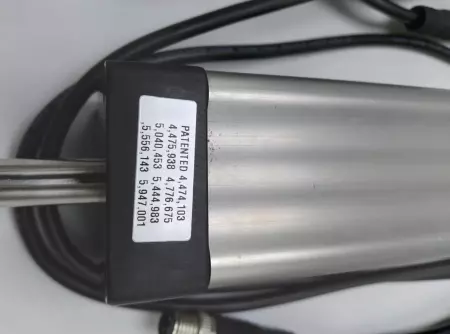

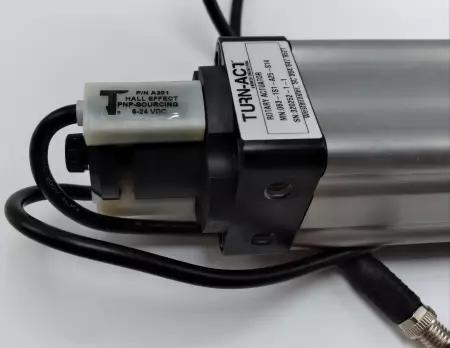

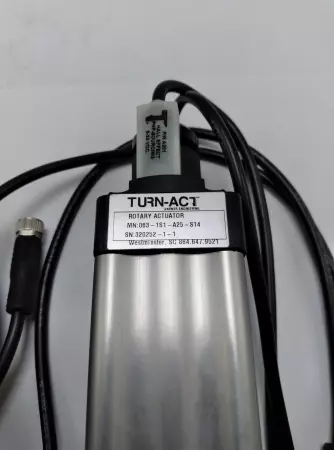

Turn-Act 063-1S1-A25-S14 Rotary Actuator

The Turn-Act 063-1S1-A25-S14 is a pneumatic rotary actuator designed for precise, repeatable angular motion. It provides a robust and compact solution for automated rotation tasks in assembly, packaging, and industrial automation systems. Technical Specifications: Model: 063-1S1-A25-S14 24 VDC Rotation Angle: 90° standard (custom angles available upon request) Torque Output: • At 100 psi: Approximately 20–40 in-lbs (based on Series 063 standard rating) Actuation Type: Double-acting (requires air to rotate in both directions) Port Size: 1/8" NPT (standard) Operating Pressure: 40 to 100 psi (2.8 to 6.9 bar) Mounting: Side tapped holes or foot-mount brackets (optional) Shaft: • Shaft Diameter: ~0.625 inch (S14 variant specific) • Shaft Type: Single-ended, keyed or non-keyed (based on “S1” configuration) Body Material: Hard-anodized aluminum Seals: Buna-N (standard), optional Viton for high-temp or chemical resistance Temperature Range: -20°C to +80°C (standard) Repeatability: ±0.05° Bearing Type: Needle or bronze bushings (application-dependent) Additional Features: • “A25” likely indicates alignment or stop adjustment variant • Optional shock absorbers and angle adjusters available

Condition: New

Weight:   17.00

Depth:   6.00

Length:   15.00

Width:   12.00

SKU:   52119 4.S5.6.3
