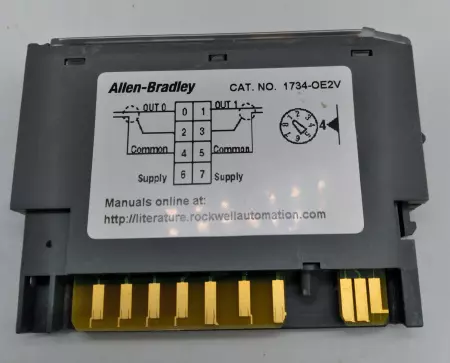

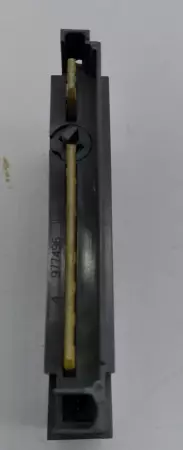

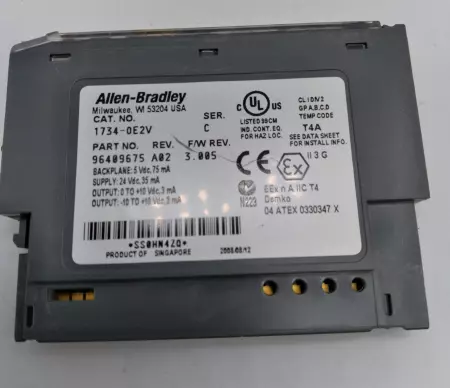

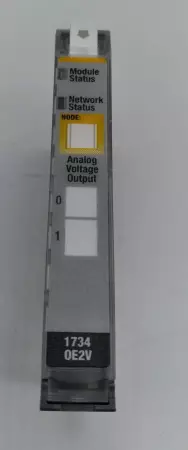

ALLEN BRADLEY 1734-OE2V SC POINT I/O 24VDC ANALOG VOLTAGE OUTPUT MODULE SER C

Please review pictures carefully and let us know if you have any questions! POINT I/O 2-Channel Analog Voltage Output Module, Number of Outputs: 2 single-ended; Signal Range: 0-10V, ±10V; Output Resolution: 14 bits (13 + sign), 1.28 mV/cnt in unipolar or bipolar mode; Absolute Accuracy: 0.1% Full Scale @ 25 °C; Step Response to 63% of FS: 20 microseconds; Output Conversion Rate: 20 microseconds; PointBus Current (mA): 75 mA; External DC Supply Current, Nom: 35 mA @ 24V DC; Power Dissipation, Max: 1.0 W @ 28.8V DC;

Condition: Used

Weight:   2.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   52157 4.S8.16.4C
