Boston Gear F72420B5G Gear Speed Reducer, Ratio 20:1, 1.77HP Input

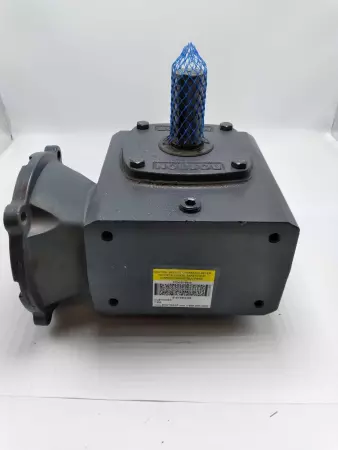

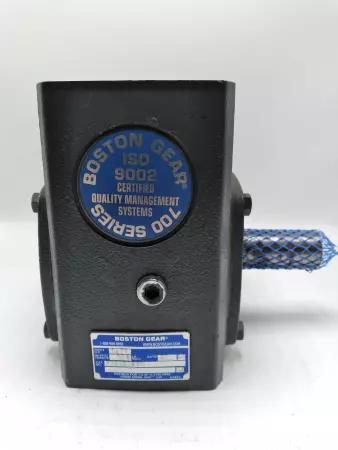

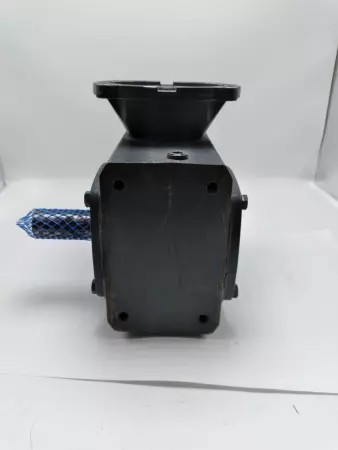

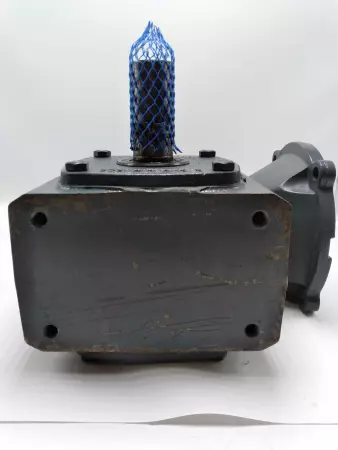

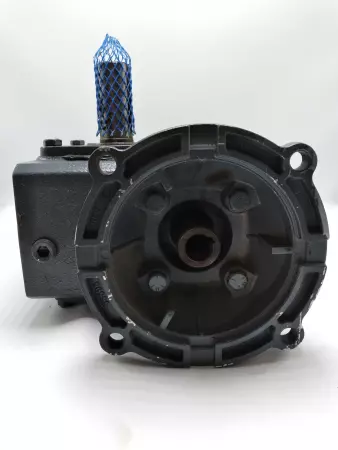

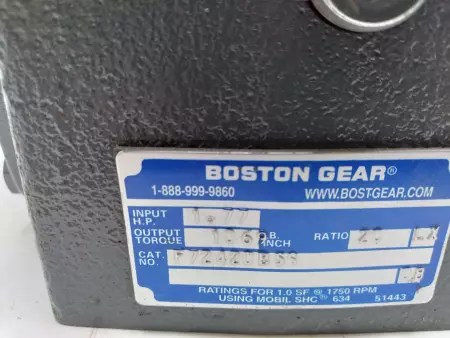

The Boston Gear F72420B5G is a right-angle worm gear speed reducer designed for high-torque, low-speed industrial applications. With a 20:1 gear reduction ratio, this unit efficiently decreases input speed while proportionally increasing output torque, making it ideal for conveyors, material handling systems, and automation equipment. Technical Specifications: Model Number: F72420B5G Gear Ratio: 20:1 Input Power: 1.77 HP at 1750 RPM Output Torque: 1,069 in-lb Center Distance: 2.38 inches Input Shaft Diameter: 0.625 inches Output Shaft Diameter: 1.125 inches Overhung Load Capacity: 900 lbs Mounting Configuration: Direct-mounted, left-hand output Housing Material: Cast iron Input Type: C-Face quill Sealing System: Factory-sealed with high-performance oil seals

Condition: New – Open box

Weight:   35.00

Depth:   12.00

Length:   12.00

Width:   12.00

SKU:   52543 4.R1.4.2
