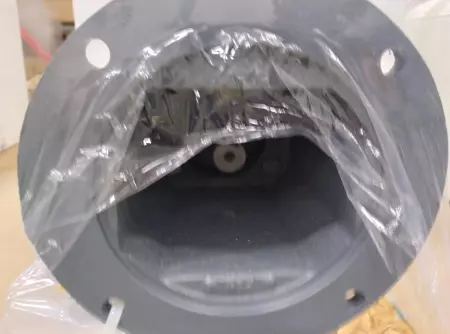

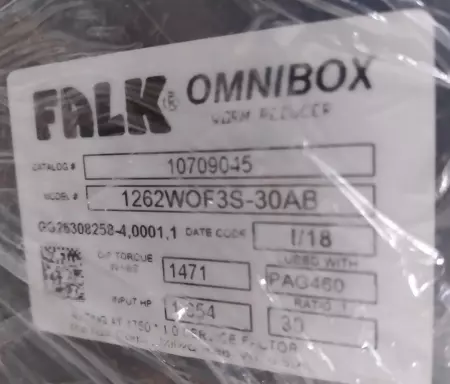

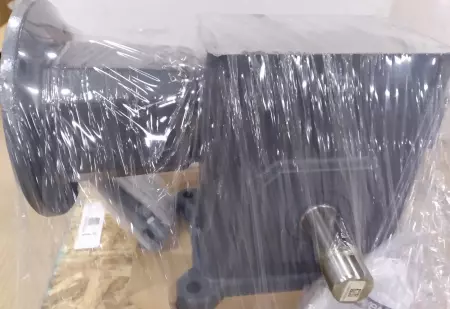

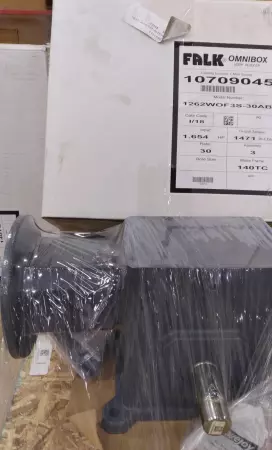

Falk 1262WOF3S-30AB Omnibox Worm Speed Reducer, 30:1 Ratio 1.65HP Input

​The Falk 1262WOF3S-30AB Omnibox Worm Speed Reducer is a right-angle gear reducer designed to provide efficient torque transmission and speed reduction in various industrial applications. With a 30:1 reduction ratio and a 1.65 HP input capacity, this model is part of Falk's Omnibox series, known for durability and performance.​ Key Specifications: Center Distance: 2.62 inches​ Reduction Ratio: 30:1​ Input Horsepower Capacity: 1.65 HP​ Mounting Configuration: Worm Over (WO)​ Output Shaft Orientation: Right-hand output​ Input Type: C-Face Quill​ Output Shaft Size: 1.375 inches​ Housing Material: Cast Iron​ Applicable Motor Frame Size: 140TC​ Features: Compact Design: The 2.62-inch center distance allows for integration into systems where space is limited.​ Durable Construction: Made from robust cast iron, ensuring longevity and resistance to industrial wear and tear.​ Versatile Mounting: The Worm Over configuration provides flexibility in installation, accommodating various system designs.​ Standardized Compatibility: Designed to fit 140TC frame motors, facilitating straightforward integration with standard equipment.​

Condition: New – Open box

Weight:   60.00

Depth:   18.00

Length:   28.00

Width:   18.00

SKU:   52639 4.R3.1.6
