In stock 1 available

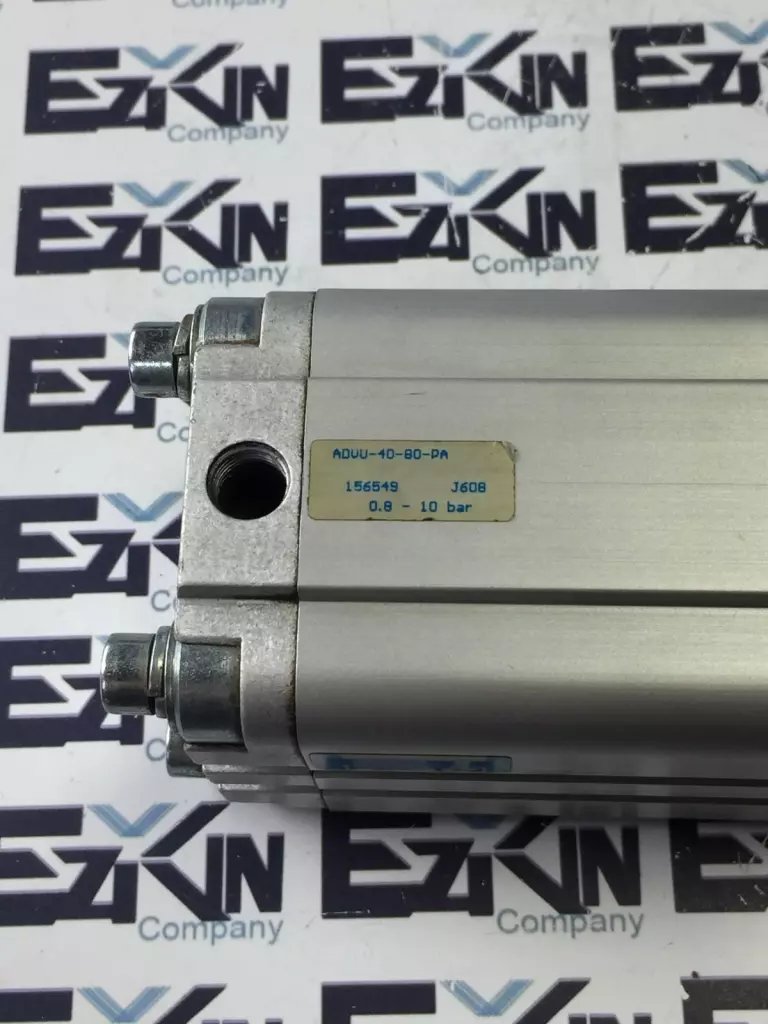

The Festo ADVU-40-80-PA is a compact double-acting pneumatic cylinder from the ADVU series. It features a 40 mm bore and 80 mm stroke, designed for tight-space industrial automation applications where high force and durability are required. Technical specifications: Model: ADVU-40-80-PA Part number: 156549 Manufacturer: Festo Cylinder type: Compact pneumatic cylinder Actuation: Double-acting Bore size: 40 mm Stroke length: 80 mm Piston rod thread: M10 × 1.25 Mounting type: Through-hole or foot-mount (accessories available) Cushioning: Elastic cushioning rings/pads at both ends Operating pressure range: 1 to 10 bar Medium: Filtered, lubricated or non-lubricated compressed air Max piston force: ~1257 N at 10 bar Position sensing: Magnetic piston for proximity sensor mounting Temperature range: –20 °C to +80 °C Material – cylinder barrel: Anodized aluminum Material – end caps: Die-cast aluminum Material – piston rod: Stainless steel Conformance: ISO 21287 standard Made in: Germany Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 2.03
Depth: 4.00
Length: 10.00
Width: 8.00
SKU: 5325 4.S9.9.5
