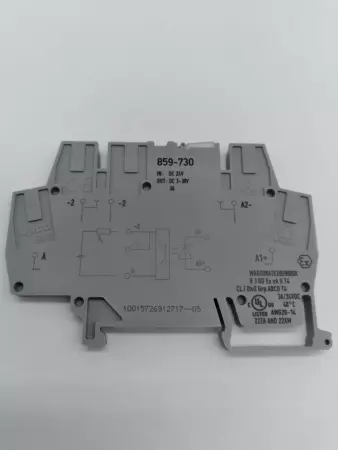

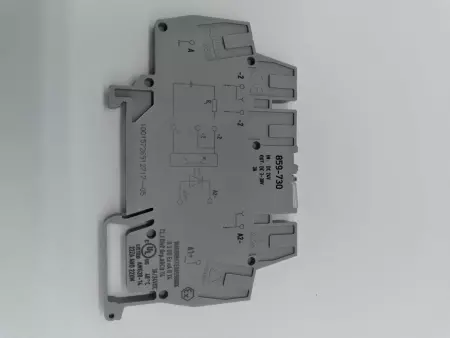

Wago 859-730 Optocoupler Terminal Block

Model: 859-730 Manufacturer: WAGO Product Type: Optocoupler Module Nominal Input Voltage: 24 VDC Input Voltage Range: 15–27 VDC Nominal Input Current: 14 mA Output Voltage Range: 3–30 VDC Limiting Continuous Current: 3 A Peak Output Current: 25 A Voltage Drop at Output: ≤ 0.2 V Turn-On Time: ≤ 25 µs Drop-Out Time: ≤ 450 µs Switching Frequency: ≤ 350 Hz Circuit Type: 2-wire connection Status Indicator: Yellow LED Mounting Type: DIN-35 rail Connection Technology: CAGE CLAMP® Conductor Sizes: 0.08–2.5 mm² (28–14 AWG) Strip Length: 5–6 mm Module Width: 6 mm Height from DIN Rail: 56 mm Depth: 91 mm Operating Temperature: –25°C to +55°C Storage Temperature: –40°C to +70°C Dielectric Strength (Control/Load Circuit): 2.5 kVrms Protection Type: IP20 Approvals: UL 508 Country of Origin: Germany Please review pictures carefully and let us know if you have any questions!

Condition: New – Open box

Weight:   3.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   53330 4.S10.5.3R
