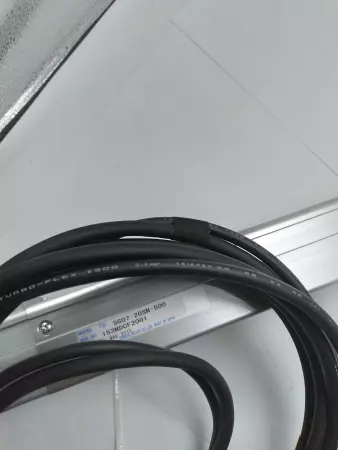

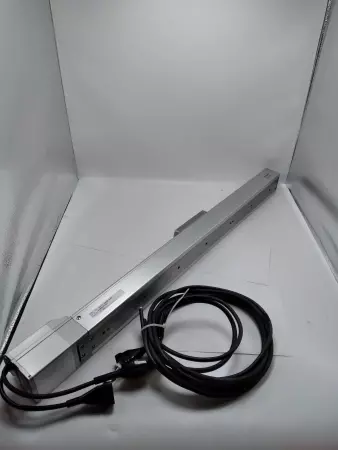

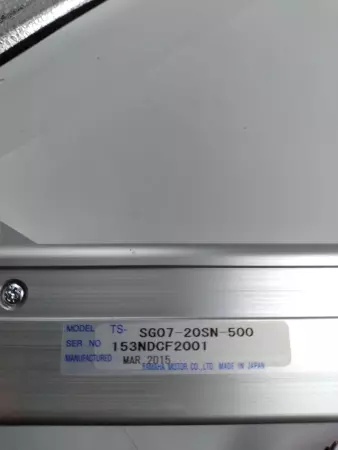

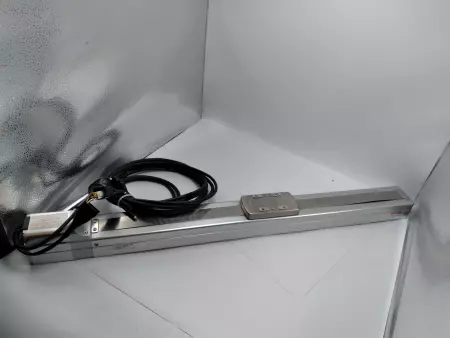

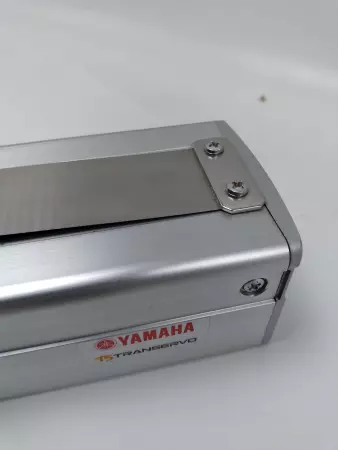

Yamaha TS-SG07-20SN-500 Transervo Single Robot Axis, 500mm Stroke

This product was removed from its original packaging for display/reference purposes and is in Like New condition. The Yamaha TS-SG07-20SN-500 is a single-axis servo-driven actuator designed for precision motion control in industrial automation. Utilizing Transervo technology, it combines the efficiency of a stepping motor with the high-performance characteristics of a servo motor, ensuring smooth, high-speed operation while maintaining precise positioning. Technical Specifications (Lead 20mm) Motion & Performance Stroke Length: 500mm Ball Screw Lead: 20mm Maximum Speed: 1200 mm/sec Repeatability: ±0.02 mm Resolution: 20,480 pulses per rotation Payload Capacity Horizontal Mounting: 36 kg Vertical Mounting: 4 kg Physical Dimensions Width: 65 mm Height: 72 mm Weight: Varies depending on configuration (approx. 3-5 kg) Drive & Control Motor Type: Hybrid Stepper Servo (Closed-Loop System) Controller Compatibility: TS-SH Series Feedback System: Resolver-based position detection

Condition: New – Open box

Weight:   16.00

Depth:   4.00

Length:   35.00

Width:   6.00

SKU:   53344 4.S6.9.2
