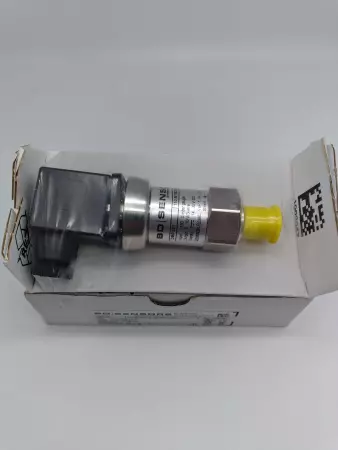

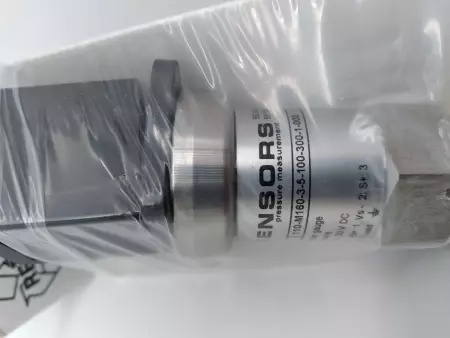

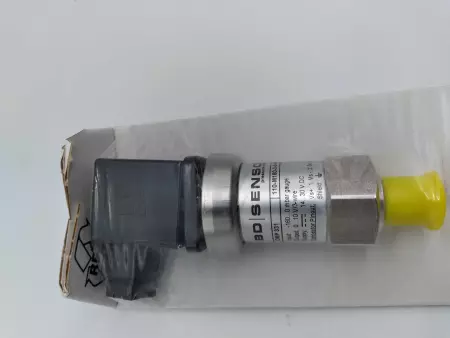

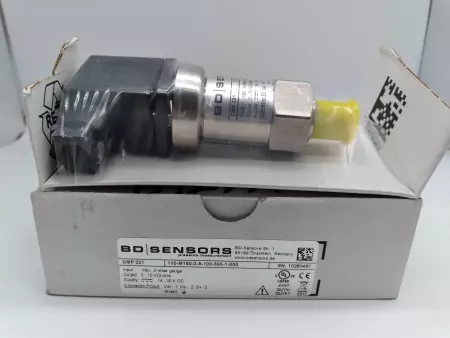

BD Sensors 110-M160-3-5-100-300-1-000 Pressure Transmitter

BD Sensors 110-M160-3-5-100-300-1-000 is a DMP 331 series pressure transmitter designed for industrial applications requiring precise pressure measurement with high durability. It features a robust stainless steel design and analog voltage output. Manufacturer: BD Sensors GmbH Model: DMP 331 Part Number: 110-M160-3-5-100-300-1-000 Pressure Range: 0–160.0 mbar gauge Output Signal: 0–10 V, 3-wire DC Power Supply: 14–30 VDC Electrical Connection: DIN EN 175301-803-A (Form A) connector Process Connection: G1/2” (typically standard for this variant) Housing Material: Stainless steel Sensor Element: Piezoresistive stainless steel Accuracy: ≤ ±0.35 % FSO Temperature Range (Media): -40 to +125°C Protection Class: IP65 / IP67 (depending on connector) Certifications: UL Listed, CE Marked Pin Configuration: VS+: 1, VS-: 2, Signal: 3 Application: Industrial automation, HVAC systems, hydraulic and pneumatic systems, filter and pump monitoring Country of Origin: Germany This transmitter is ideal for OEM and process control systems needing compact, accurate, and reliable pressure measurement under tough conditions.

Condition: New

Weight:   3.00

Depth:   6.00

Length:   6.00

Width:   6.00

SKU:   53346 4.S1.15.6
