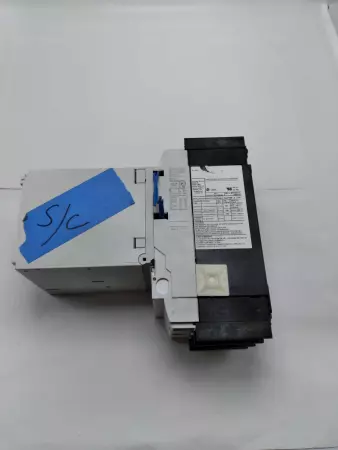

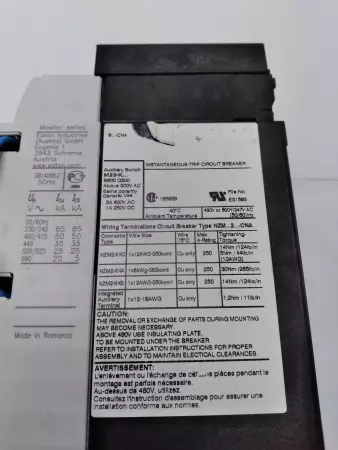

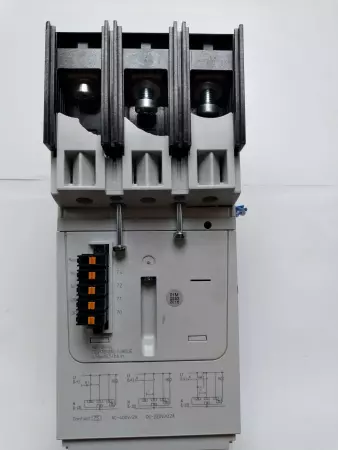

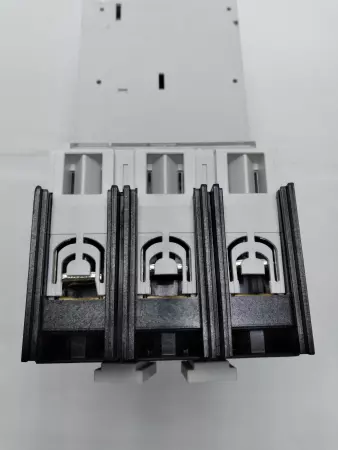

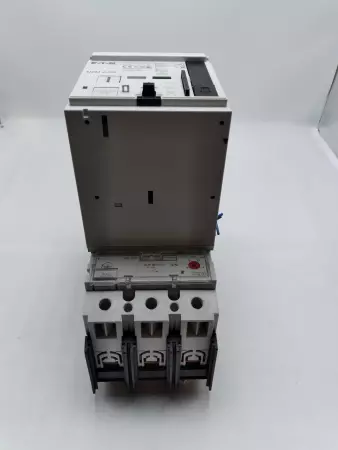

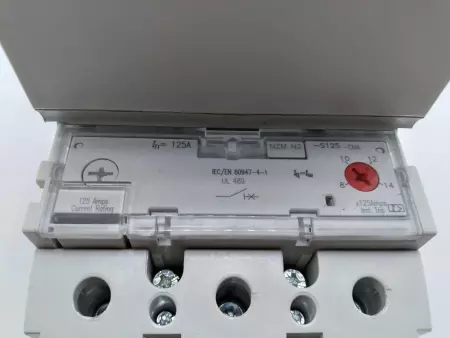

Eaton NZM N2 S125 Circuit Breaker, 600VAC/250VDC 125Amps W/Remote Operator

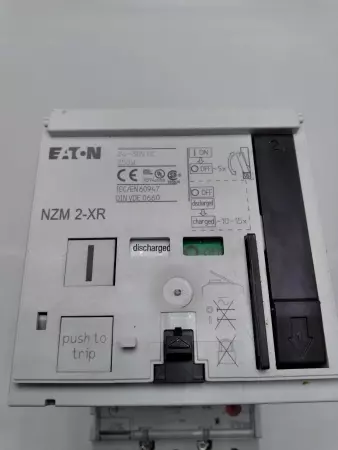

The Eaton NZM N2 S125 is a molded case circuit breaker (MCCB) designed for protection and control of power distribution systems up to 125 A. With both AC and DC ratings and a remote operation feature, it is ideal for commercial, industrial, and generator control panels. Technical Specifications: Model: NZM N2 S125 Frame Size: N2 Rated Current: 125 Amps Rated Voltage: – AC: Up to 600 VAC – DC: Up to 250 VDC Interrupting Capacity (AC): – 35 kA at 480 VAC – 18 kA at 600 VAC Interrupting Capacity (DC): – 10–25 kA (depending on polarity and installation) Poles: 3-pole (standard) Trip Type: Thermal-magnetic or electronic (model-dependent) Mounting: Fixed or plug-in (panel mount) Remote Operation: Includes motor operator or shunt trip for remote open/close NZM2-XR Control Voltage for Remote Operator: Typically 24 VDC / 120 VAC (confirm variant) Standards: UL 489, IEC 60947-2, CSA certified Operating Temperature: –25°C to +55°C Enclosure: Compatible with NEMA 1–12 or IP-rated panels (when enclosed) THESE ITEMS CAN BE SEPARATED TO USE DRIVE ONLY OR CIRCUIT BREAKER ONLY (2) EXCELLANT CONDITION (1) W/O TOP PLASTIC COVER

Condition: Used

Weight:   13.00

Depth:   10.00

Length:   16.00

Width:   12.00

SKU:   53407 4.S7.25.3
