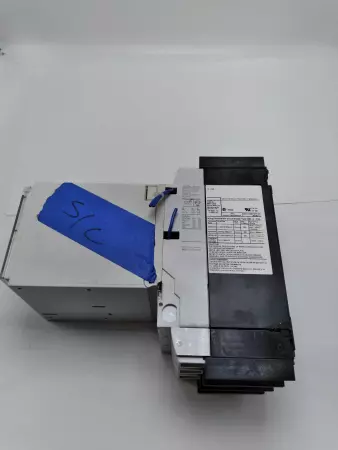

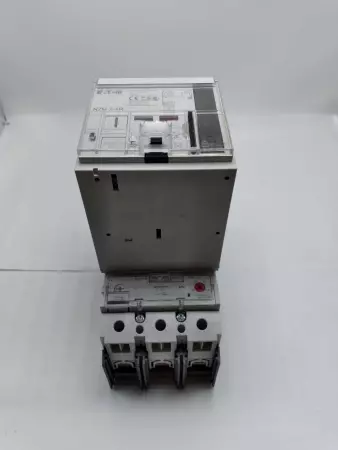

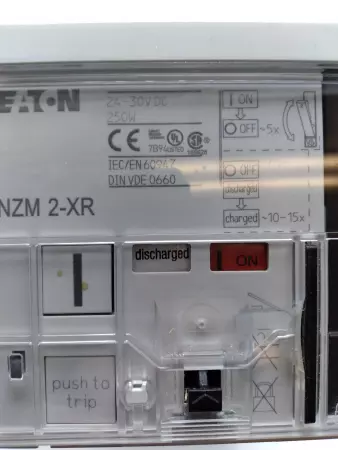

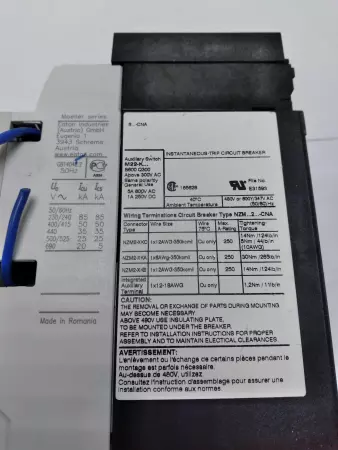

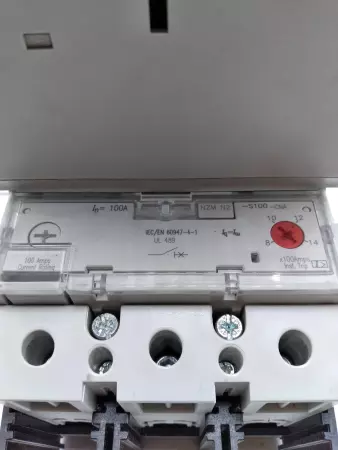

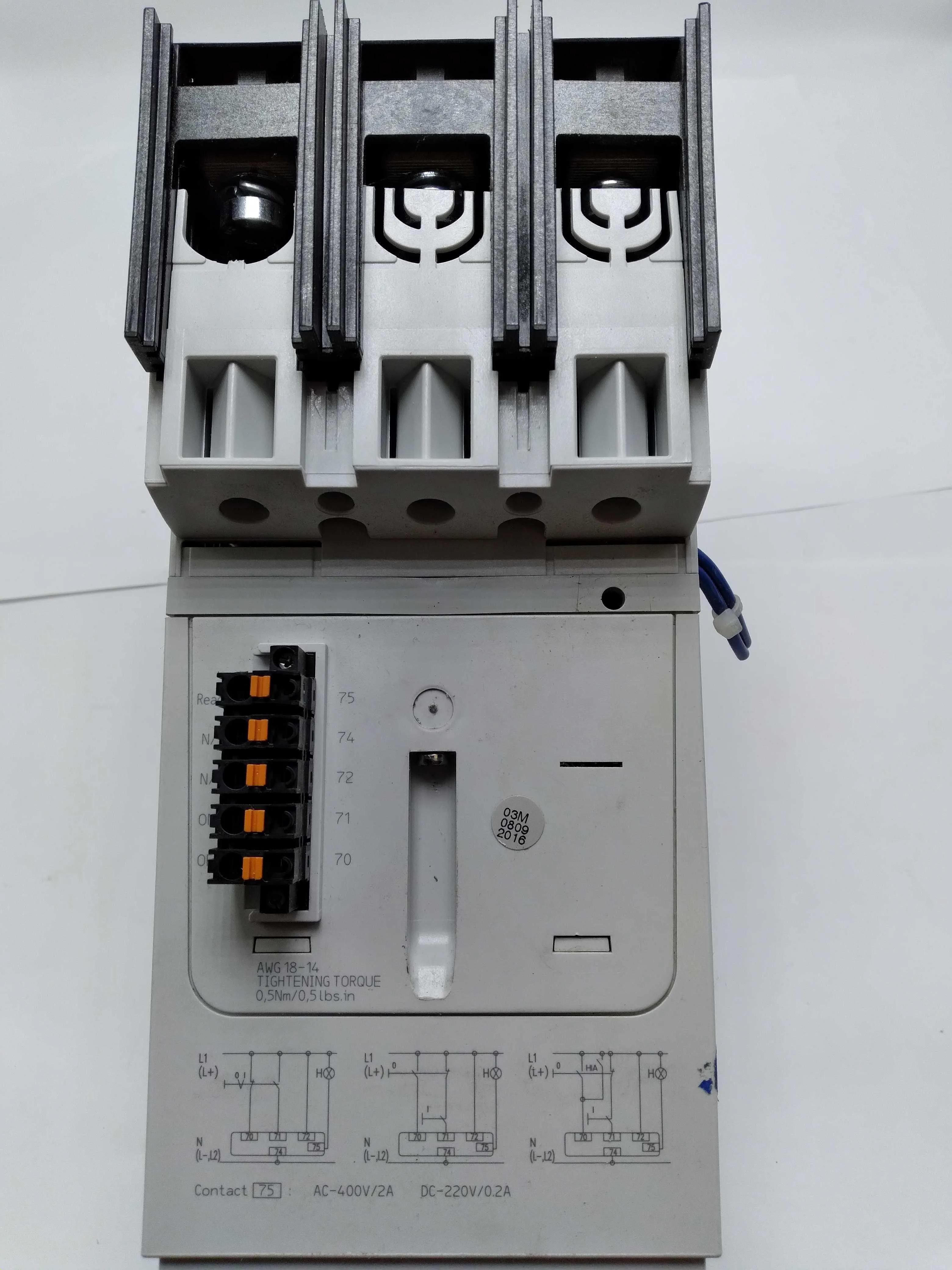

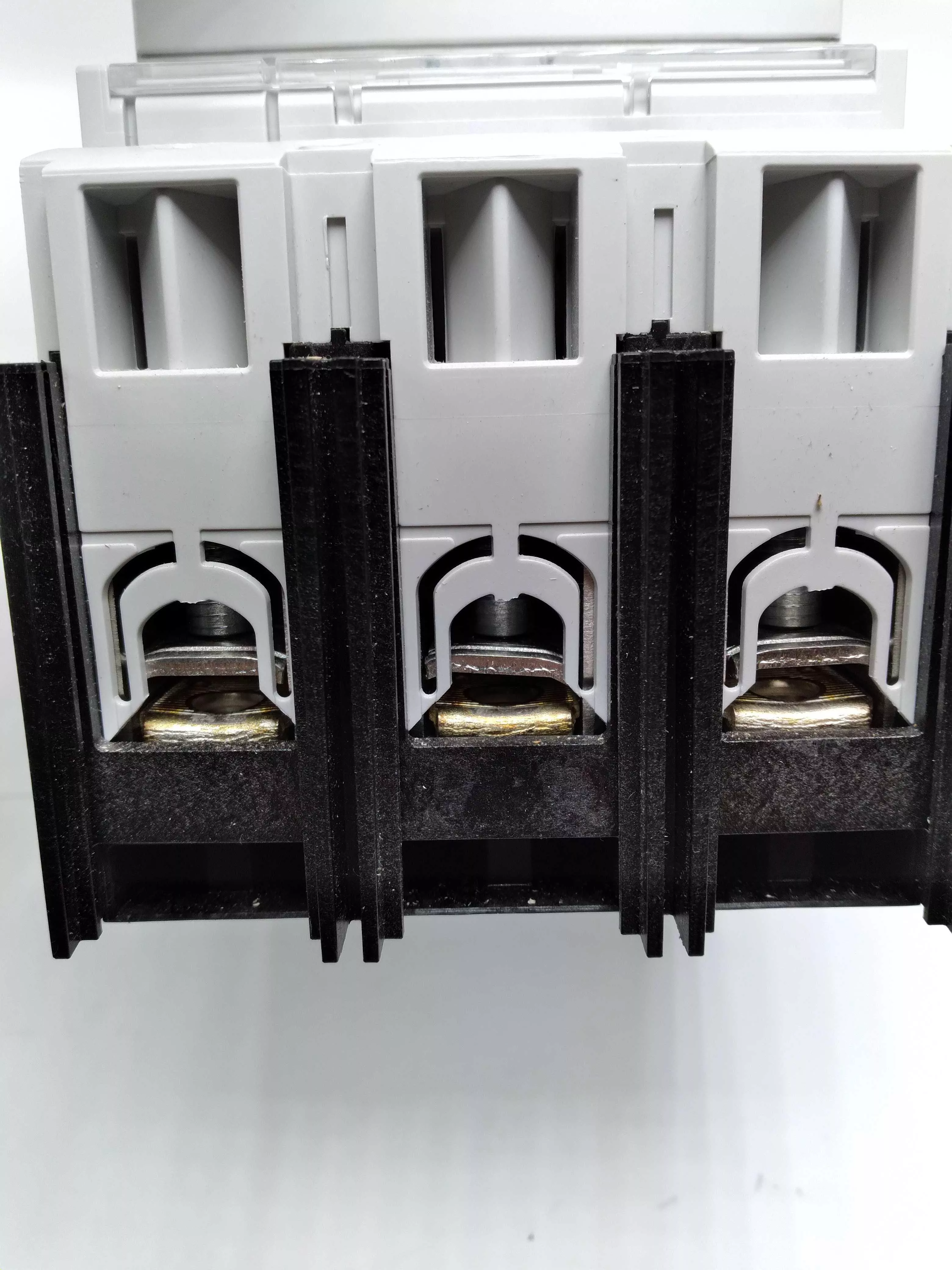

Eaton NZM 2-XR Instantaneous Trip Circuit Breaker

The Eaton NZM 2-XR is an accessory module designed for the NZM2 series molded case circuit breakers (MCCBs). It provides instantaneous trip functionality, allowing rapid disconnection of the circuit in the event of a short-circuit or severe overcurrent, enhancing protection and coordination in power distribution systems. Technical Specifications: Product Type: Instantaneous Trip Module Model: NZM 2-XR Compatible With: Eaton NZM2 series MCCBs Trip Function: Instantaneous (magnetic-only) Trip Range: Typically adjustable depending on main breaker settings (e.g., 5× to 10× In) Mounting: Plug-in type, installs into designated slot in NZM2 breaker Voltage Rating: Same as NZM2 breaker (up to 690 VAC depending on breaker model) Current Range: Matches NZM2 frame size (up to 250 A) Standards: IEC 60947-2, UL 489 compliant (when used with compliant breakers) Use Case: Selective coordination, generator protection, motor circuits Ambient Temperature Range: –25°C to +55°C Housing: Thermoplastic, DIN-rail mountable if used in separate trip block REMOTE OPERATOR: 100A with NZM-2-XR Remote Drive STANDARD 110-130 V 50/60 HZ 110-170MS CLOSING DELAY 100A 3 POLE

Condition: Used

Weight:   13.00

Depth:   10.00

Length:   16.00

Width:   12.00

SKU:   53409 4.S7.25.3
