Jacob 3885386/170 Throttle Valve 175mm W/Electric Actuator VR45.70B.GP5

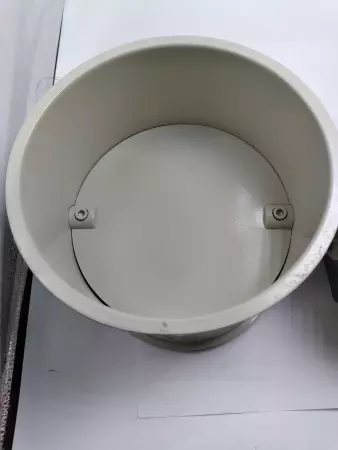

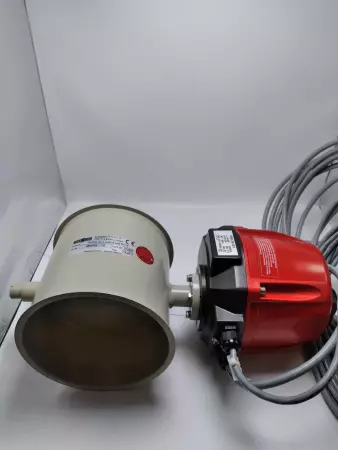

The Jacob 3885386/170 Throttle Valve is a 175 mm diameter valve equipped with an electric actuator, model VR45.70B.GP5. This valve is designed for precise control of airflow and material transport in various industrial applications. Key Technical Specifications: Diameter: 175 mm Operation: Electrically operated with an AIR TORQUE adjustable drive Switch-over Time: Approximately 11-12 seconds for a 90° rotation Limit Switches: Includes 2 integrated limit switches Materials Available: Powder-coated and stainless steel Thickness: 1.5 mm Sealing: Options available with or without seal when closed Explosion Proofing: Up to a diameter of 200 mm, the valve is tested as shock explosion proof externally up to 3 bar over-pressure The electric actuator provides reliable and adjustable control, making the valve suitable for applications requiring precise modulation of flow. The inclusion of limit switches allows for accurate position feedback, enhancing automation capabilities.

Condition: New

Weight:   25.00

Depth:   12.00

Length:   18.00

Width:   24.00

SKU:   53440 4.R6.4.3
