Falk 1262WOF3S-25AB Omnibox Worm Speed Reducer, 25:1 Ratio 2.023HP Input

The Falk 1262WOF3S-25AB Omnibox Worm Speed Reducer is a right-angle gear drive engineered to reduce input speed and amplify torque in various industrial applications. This model features a 25:1 reduction ratio and is designed to handle an input power of approximately 2.023 horsepower at 1750 RPM.​ Key Specifications: Model: 1262WOF3S-25AB​ Center Distance: 2.62 inches​ Reduction Ratio: 25:1​ Input Power Capacity: Approximately 2.023 horsepower at 1750 RPM​ Output Torque: Approximately 1,612 in-lbs at 1750 RPM input​ Input Shaft Size: 0.875 inches​ Output Shaft Size: 1.375 inches​ Mounting Configuration: Right-hand output with horizontal base mounting​ Housing Material: Cast iron for durability and strength​ Lubrication: Sealed with oil to ensure proper lubrication and extended service life​ Features: Durable Construction: The cast iron housing provides robustness and resistance to harsh industrial environments.​ High Torque Transmission: Designed to handle significant torque, making it suitable for heavy-duty applications.​ Compact Design: The 2.62-inch center distance allows for integration into systems with limited space.​ Versatile Mounting: Compatible with NEMA and IEC motor flanges, facilitating easy integration with various motor types.

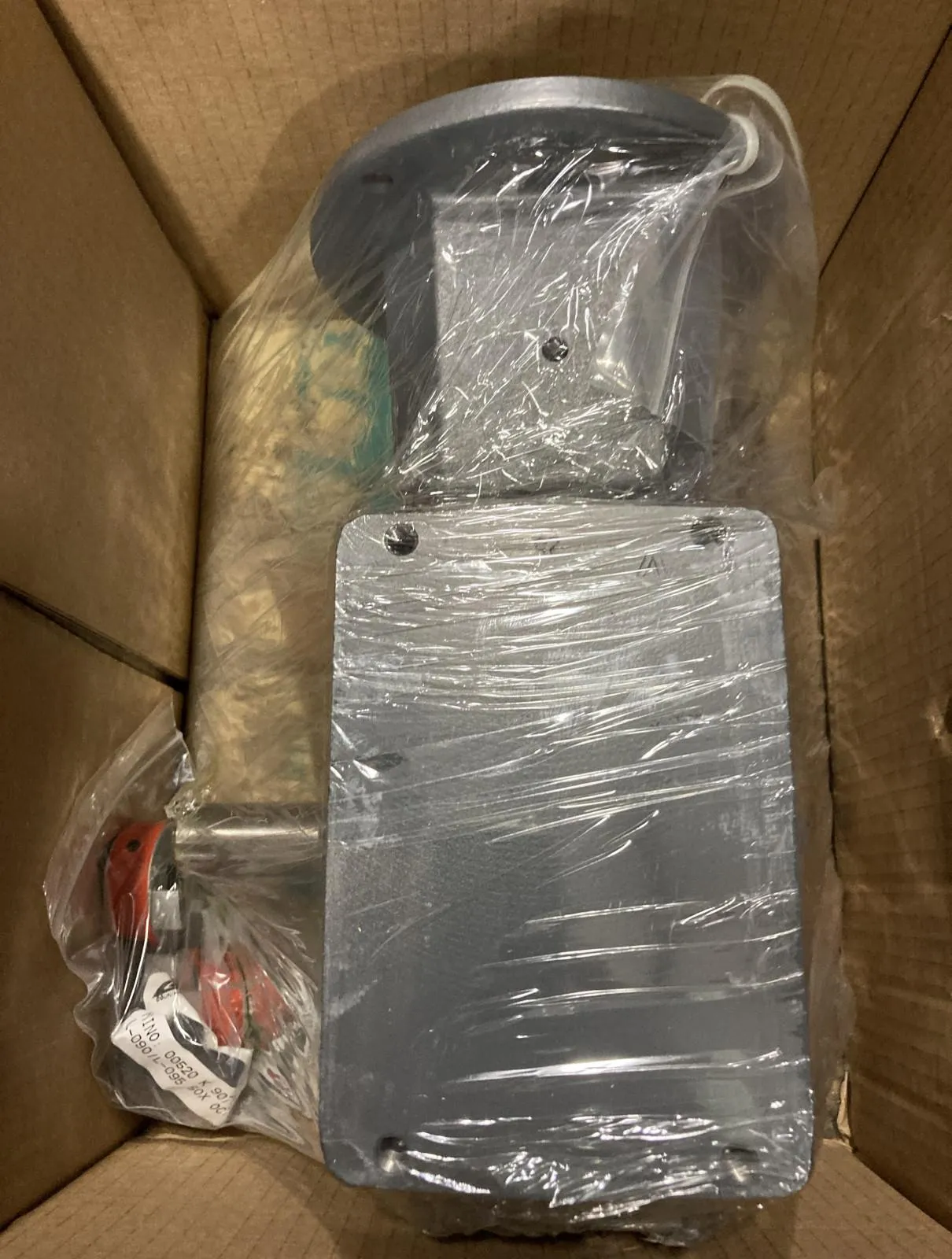

Condition: New – Open box

Weight:   60.00

Depth:   20.00

Length:   20.00

Width:   20.00

SKU:   53580 4.R6.3.6
