In stock 1 available

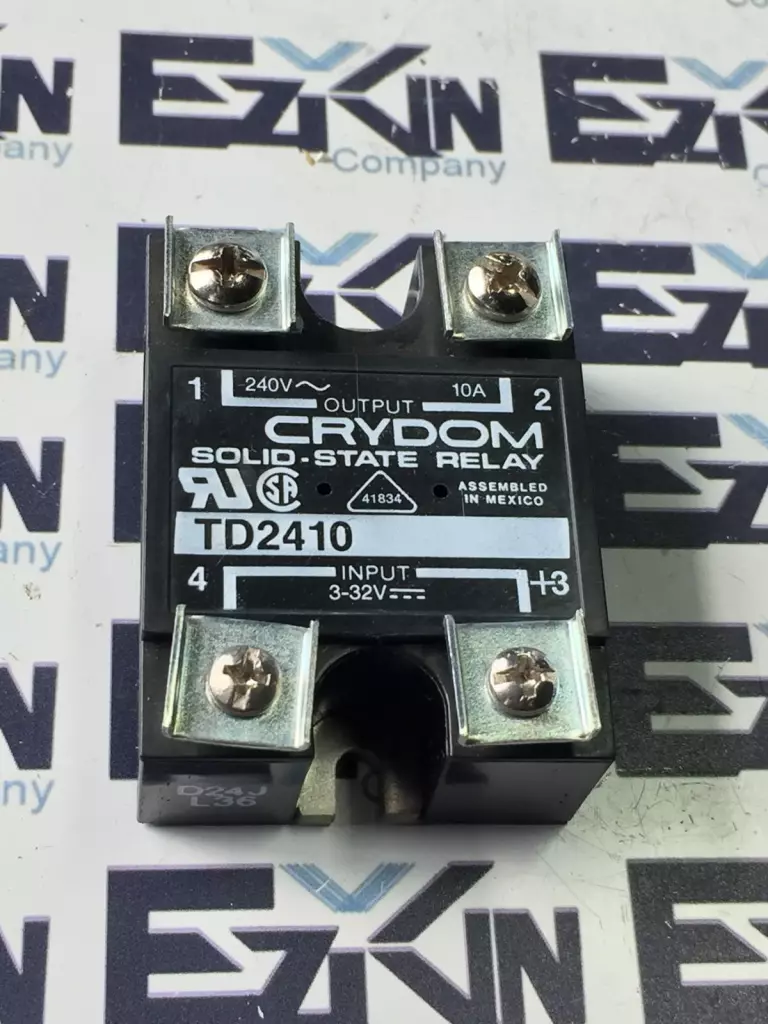

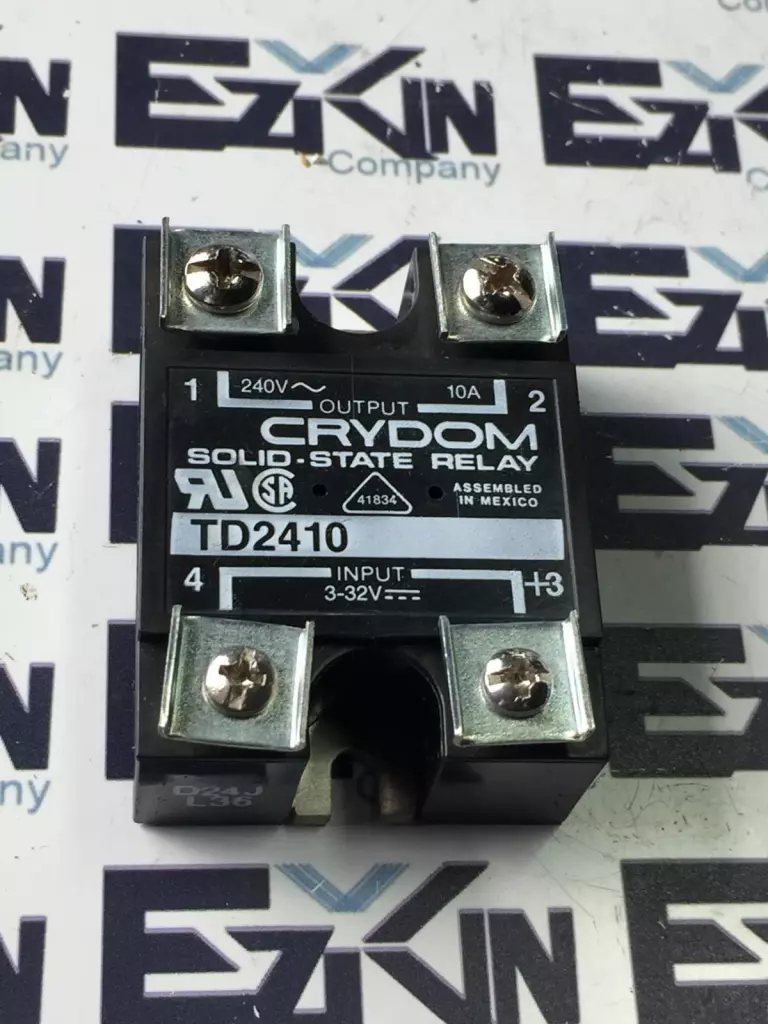

The Crydom TD2410 is a solid state relay (SSR) designed for reliable switching of AC loads. It uses optical isolation and zero-crossing switching to control 240 V AC circuits with a low-voltage DC input signal. Technical specifications: Model: TD2410 Manufacturer: Crydom Relay type: Solid State Relay (SSR) Input control voltage: 3–32 V DC Load voltage (output): 24–280 V AC (nominal 240 V AC) Load current: 10 A maximum Switching type: Zero-crossing (reduces inrush current) Isolation voltage: 4000 V RMS Terminals: Screw-type for easy wiring Mounting: Panel mount with 2-hole flange LED indicator: Integrated for input status (typical) Response time: <1 ms Operating temperature: –30 °C to +80 °C Certifications: UL, cUL, CE Applications: Industrial heating, motor control, lighting, solenoids Made in: Mexico Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.20
Depth: 4.00
Length: 7.00
Width: 7.00
SKU: 5362 4.S9.8.5
