In stock 1 available

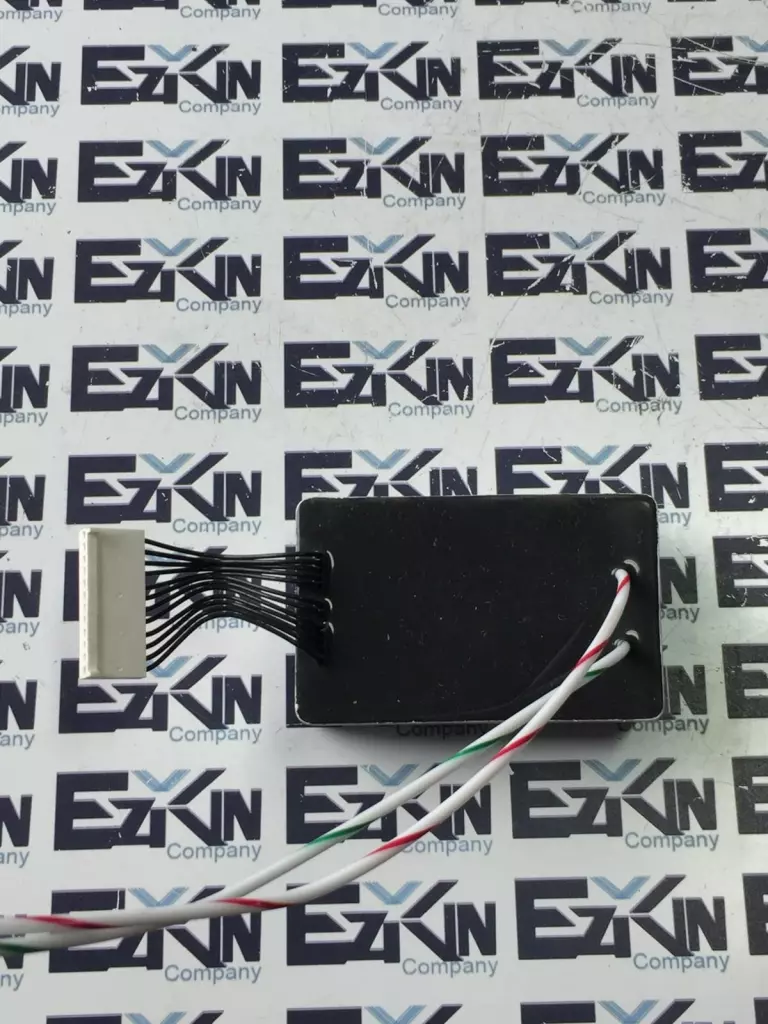

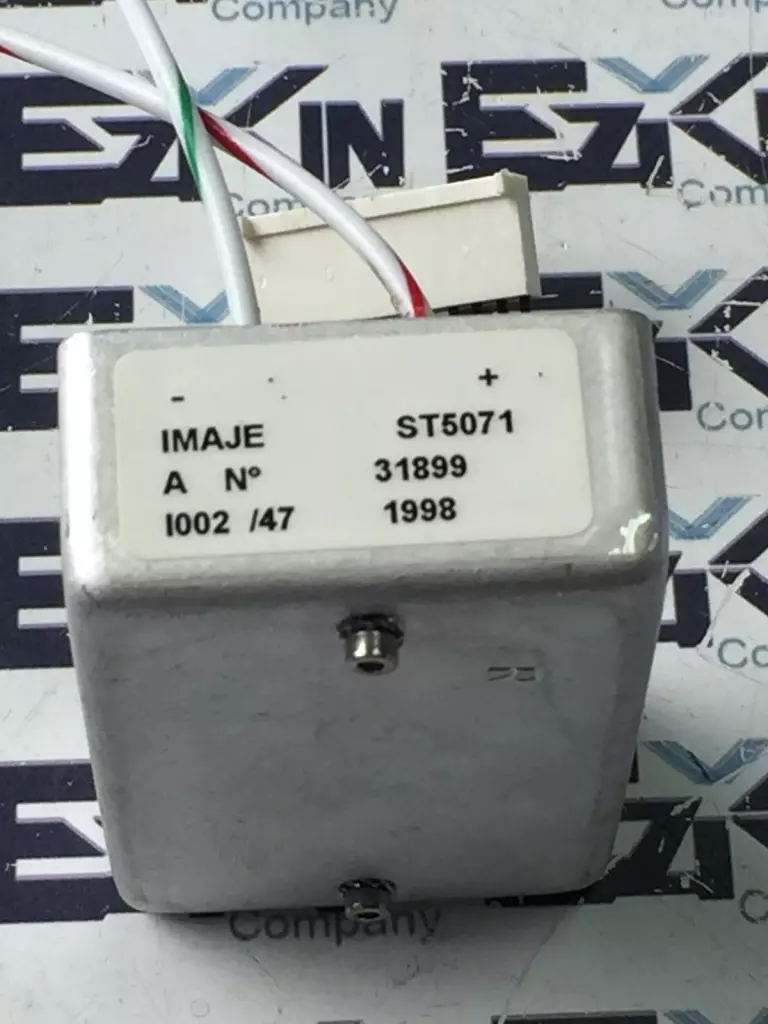

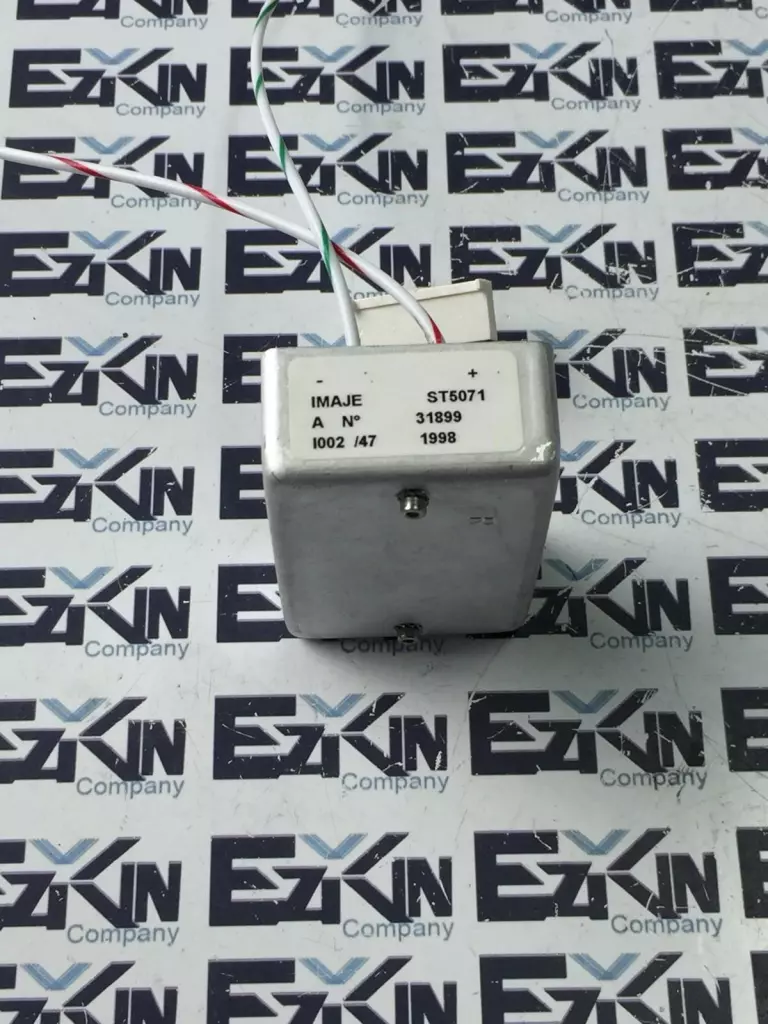

The Markem-Imaje ST5071 is an isolated signal converter module typically used in industrial marking and coding equipment for signal conditioning and electrical isolation. It ensures safe and accurate transmission of control signals between different sections of a system, especially between control electronics and electromechanical devices like printheads or encoders. Description: The ST5071 Isolated Signal Converter electrically isolates input and output signals to prevent ground loops, signal distortion, and equipment damage, ensuring reliable data integrity in Markem-Imaje printing systems. Technical Specifications Model: ST5071 Function: Isolated signal converter Input signal: Likely TTL or encoder pulses (unconfirmed) Output signal: Buffered/converted version of input (typically open collector or TTL) Power supply: Likely 5V or 24V DC (check specific equipment manual) Isolation type: Galvanic isolation between input/output Wiring: Multi-wire harness with 6-pin header Enclosure: Metal housing for shielding and protection Typical use: Signal conditioning for encoders, sensors, or control signals in Markem-Imaje printers Mounting: Enclosed unit, panel or in-line installable Manufacturer: Markem-Imaje This module is likely custom-built for Markem-Imaje systems, so pinout and internal logic may require the OEM documentation or tracing for integration or replacement. Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.50
Depth: 4.00
Length: 7.00
Width: 7.00
SKU: 5402 4.S10.1.3D
